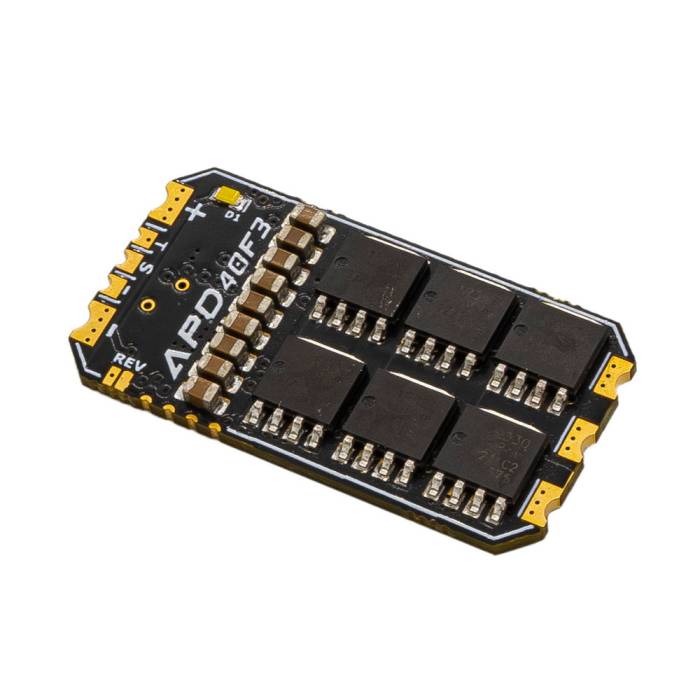

APD F-Series 40F3 6S 40A 32-Bit ESC

The APD F-Series ESCs bring forward a ground-breaking new design utilizing a Powerful 32bit F3 running brand-new firmware developed from the ground up.

The F3 processor ensures no input commands are missed, even at the highest input update rates. Its bleeding-edge features include ‘PWM-frequency dithering, and Active Phase-current Demagnetisation to ensure the smoothest control at high power, whilst maintaining maximum efficiency.

Compatible with the latest Protocols including ProShot up to 3MBs/S.

Feature Set

• Designed and manufactured in Australia using only the highest quality components, ensuring no sacrifice in reliability.
• Plug and play firmware
• True 10bit resolution
• Virtually no setup time, with simple motor reverse solder tab
• Auto-detect ProShot or Dshot any frequency range
• ProShot1000 to ProShot3000 capable (1-3Mbs/s)
• Dshot300 to Dshot2400 capable (0.3-2.4Mbs/s)
• Up to 750,000 eRPM
• Auto PWM-freq
• Auto Timing Advance
• HBM (Hectic Boost Mode) ensures this will deliver maximum thrust, outperforming any other ESC
• Telemetry output
• Intelligent current sensing
• LED indication
• Digital commands over Proshot (including anti-turtle mode)
• Digital commands over Dshot
• 6-Layer PCB to ensure minimal track resistance

Specifications

• Weight: 3.1g
• Continuous Current: 40A
• Burst Current: 100A
• Cells: 2-6S
• Dimensions: 16 x 30 x 5 mm

Documentation and Datasheets can be found at docs.powerdrives.net
