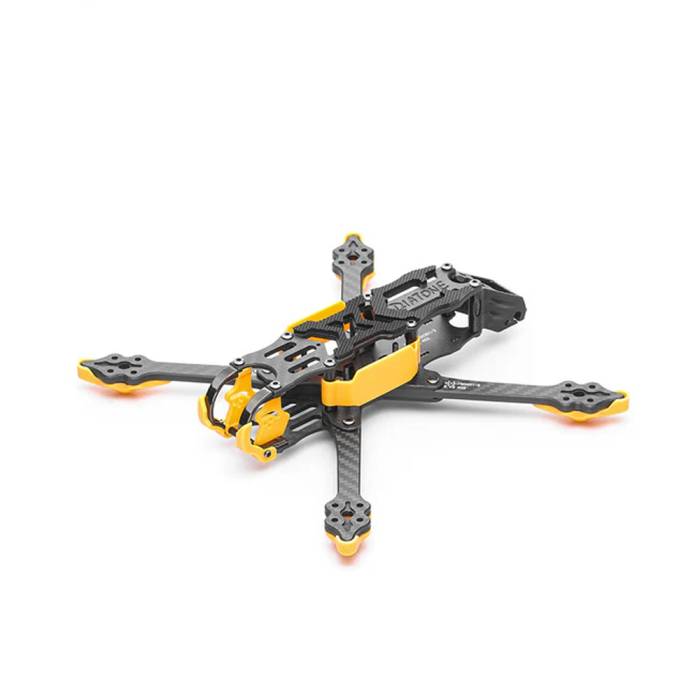

The Diatone's Roma F5 5" V2 Analog frame introduces a number of changes to the new and optimized Roma F5 frame! The Roma F5 V2 frame includes durable arms, strengthened metal parts, at the front of the frame, and upgrade alloy material from 7075 to titanium steel. For that extra high-end and tactile quality, Diatone treated the surface of the metal parts and changed the screws from M2 size to M3-sized.

The Roma F5 V2's injection-molded protection parts not only add a dash of color but also offers better protection for your gear! Also, the GoPro mount angle can be adjusted for faster changes on the fly. For a better flying experience, the V2 comes in a slammed configuration for stability.

Place either a 20x20 stack or 30.5x3.50 FC's to power this frame!

Specifications

• Wheelbase: 218mm
• Prop Size: 5 inch
• FC Mounting: 30.5×30.5(M3)&20×20mm(M2)
• Motor Mounting:16mm
• Top Plate 2.5mm
• Bottom Plate 2.5mm
• Rated Volitage（Recommendation）：3-6S
• Camera Cage: titanium steel
• carbon fiber: T300 3K
• Injection Part: Camera Metal Mount Protector, Arm Protector, Univeral Adjustable Gopro Mount

Diagram

Includes

• 1 x Diatone Roma F5 5" V2 Frame Kit - Analog
