Diatone Mamba Stack - MK4 H743 FC + F55 55A 128K ESC - MPU 6 Series Dual Gyro
Out of Stock
About this product

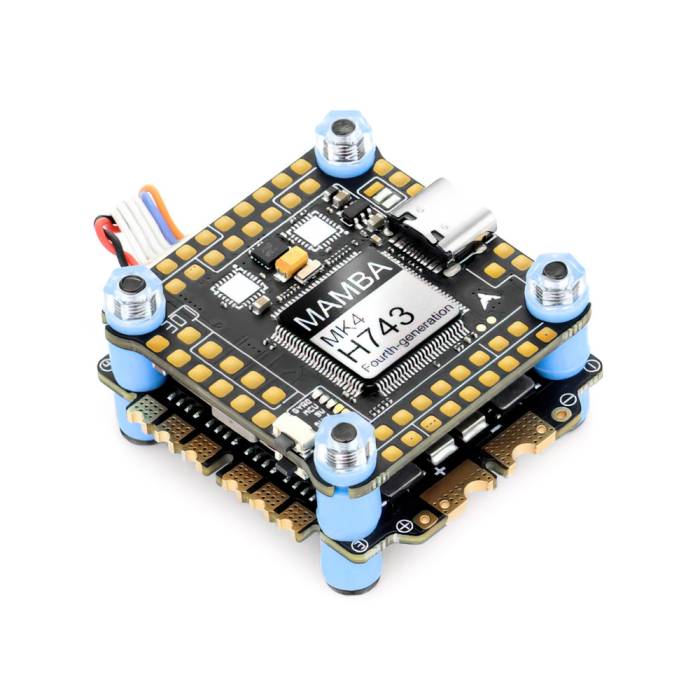

This Diatone Mamba Stack includes an MK4 H743 flight controller and an F55 55A 128K ESC. Featuring an MPU 6 Series Dual Gyro sensor, barometer, OSD, and a 128 Memory Blackbox, this stack is the perfect addition to your FPV build.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: Diatone Mamba H743 MK4 FC & 128K ESC Unboxing
Features
- 30.5 x 30.5mm Mounting Pattern
- 128M Flash Memory Blackbox
- 3~6S Lipo (12.6~25.2V) Input
- MPU 6 Series DUAL GYRO
- MAMBA MK4 H743 FC
- F55 55A 128K ESC
- Barometer
- 8 Uarts
- Buzzer
- OSD
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
MK4 H743 FLIGHT CONTROLLER
- LED Controller: BF LED/MB LED（4 Set 2812 LED）

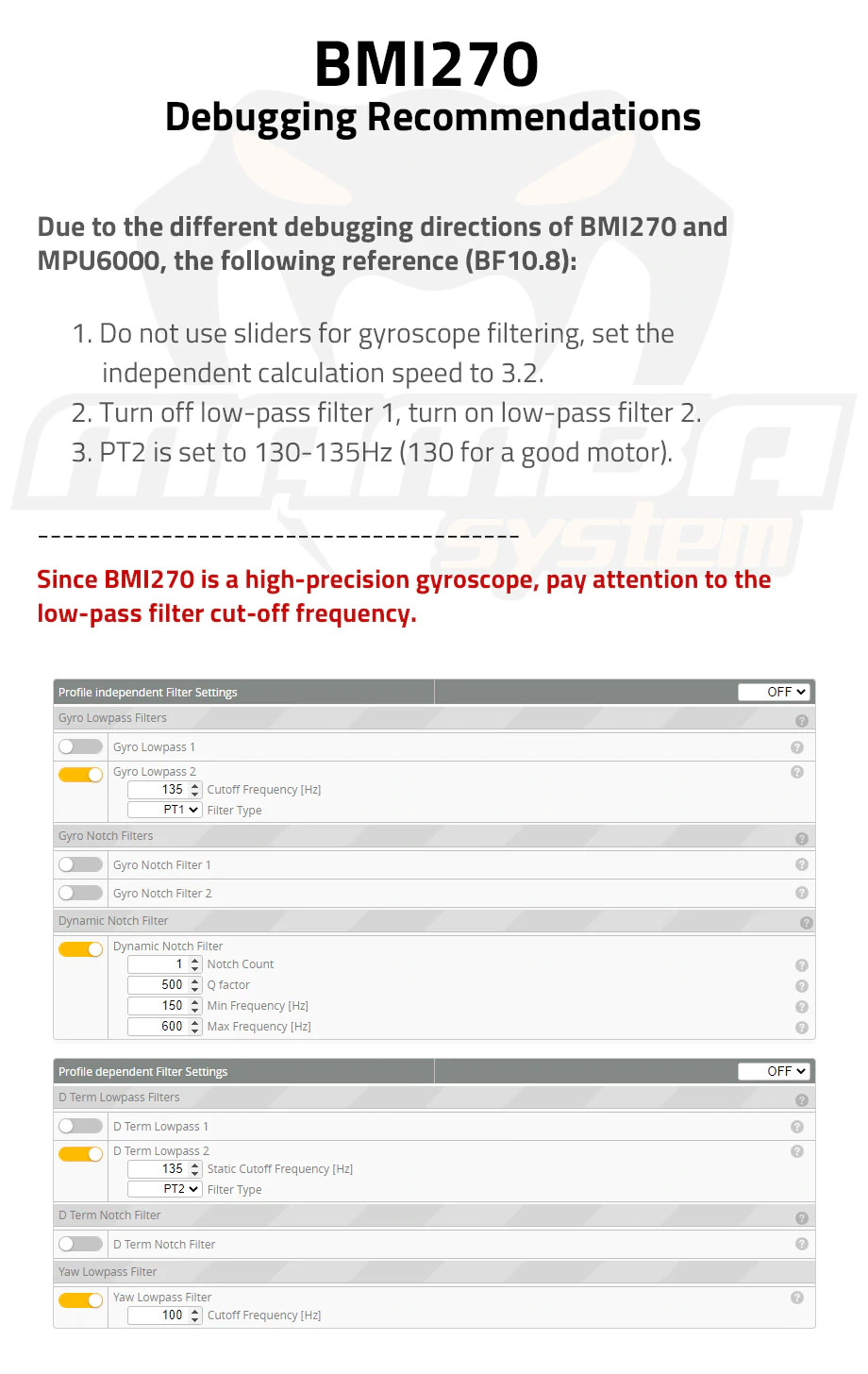

- GYRO: MPU 6 Series DUAL / BMI 270 （optional）
- BEC:3.3V 0.5A& 5V 3A (System Power)&
- Input: 3~6S Lipo (12.6~25.2V)
- ESC Soft: Dshot300/600/1200
- Blackbox: 128M Flash Memory
- MCU: 480MHz STM32H743
- MOUNTING: 30.5mm, M3
- 5V 3A(LED)& 9V 3A
- ESC Telemetry: Yes
- TVS Protection: Yes
- MAMBA MK4 H743
- ESC Signal:8Set
- Barometer: Yes
- Power Led: Yes
- Uarts: 8Set
- F.Port: Yes
- Buzz: Yes
- OSD: Yes
F55 55A 128K ESC
- INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
- Target: BLHeli_32 MAMBA F55_128K
- CONTINUE CURRENT:55A×4
- BURST CURRENT:65A (10S)
- SOFT: Dshot300/600/1200
- MOUNTING: 30.5mm/M3
- TVS Protection: Yes
- MAMBA F55_128K
- PWM: 24~128K
- BEC: No
IMPORTANT NOTES
- The H7 temporarily uses development version 4.3 Target.
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x Diatone Mamba Stack - MK4 H743 FC + F55 55A 128K ESC - MPU 6 Series Dual Gyro
- 1x High-Frequency 470uf/35V Capacitor
- 1x Amass XT60 Connector
- 2x 12AWG 100mm Wire
- 2x 8-Pin SH1.0
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 18118 |
|---|---|
| UPC (GTIN) | 764613346190 |
| Manufacturer | Diatone |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 30.5x30.5mm |
| Amps | 55 Amps |
| Flight Controller Processor | H7 |
| Voltage | 3-6 Cell (12.6-25.2V) |
| ESC Firmware | BLHeli_32 128K |
| Number of ESC's | 4 ESC's in 1 |
