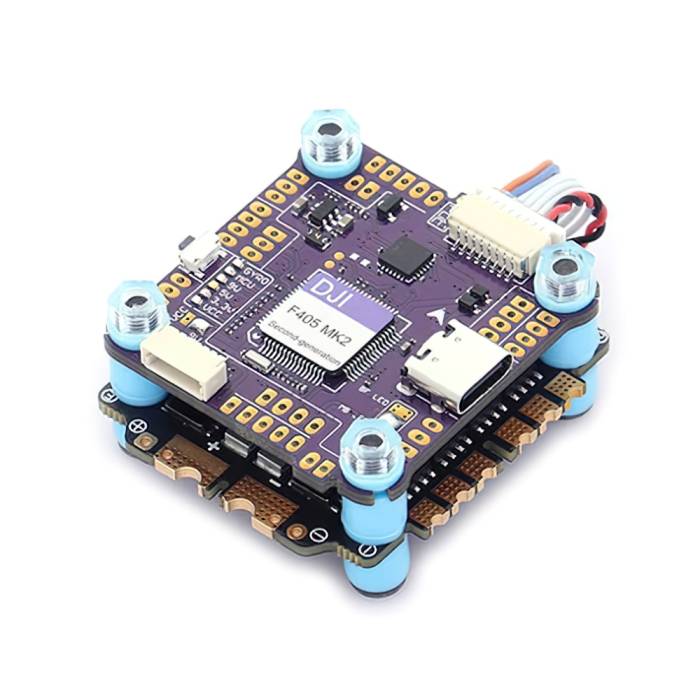

Diatone Mamba Stack - DJI F405 MK2 FC + F50 50A BLHeli_S ESC

The Diatone Mamba DJI F405 MK2 FC 50A Stack brings BIG power all in a 30.5x30.5 mounting size! This stack can push 50A all while bringing you the latest features! This is the 8-bit version.

The built-in plugin allows you to easily connect to the DJI FPV Air System.

VIDEO: FPV Drone Wiring Made Easy! (Ft. Mamba F405 Stack)

Specifications

MAMBA DJI F405 MK2

• LED Controller: BF LED/MB LED (4 Set 2812 LED)
• BEC:3.3V 0.5A& 5V 3A & (DJI) 9V 3A
• MCU: 168MHz STM32F405RGT6
• Input: 3~6S Lipo (12.6~25.2V)
• ESC Soft: Dshot300/600/1200
• Blackbox: 16M Flash Memory
• MOUNTING: 30.5mm,M3
• TVS Protection: Yes
• ESC Telemetry: Yes
• IMU: MPU6000
• Power Led: Yes
• Barometer: Yes
• Uarts: 6Set
• F.Port: Yes
• RSSI: Yes
• Buzz: Yes
• OSD: Yes

F50 50A 3-6S 4-in-1 ESC

• INPUT VOLTAGE: 3~6S Lipo (12.6V~25.2V)
• CONTINUE CURRENT:50A×4
• BURST CURRENT:60A (10S)
• MOUNTING: 30.5mm/M3
• Target: BLHeli_S CH40
• SOFT: Dshot300/600
• TVS Protection: Yes
• BEC: No

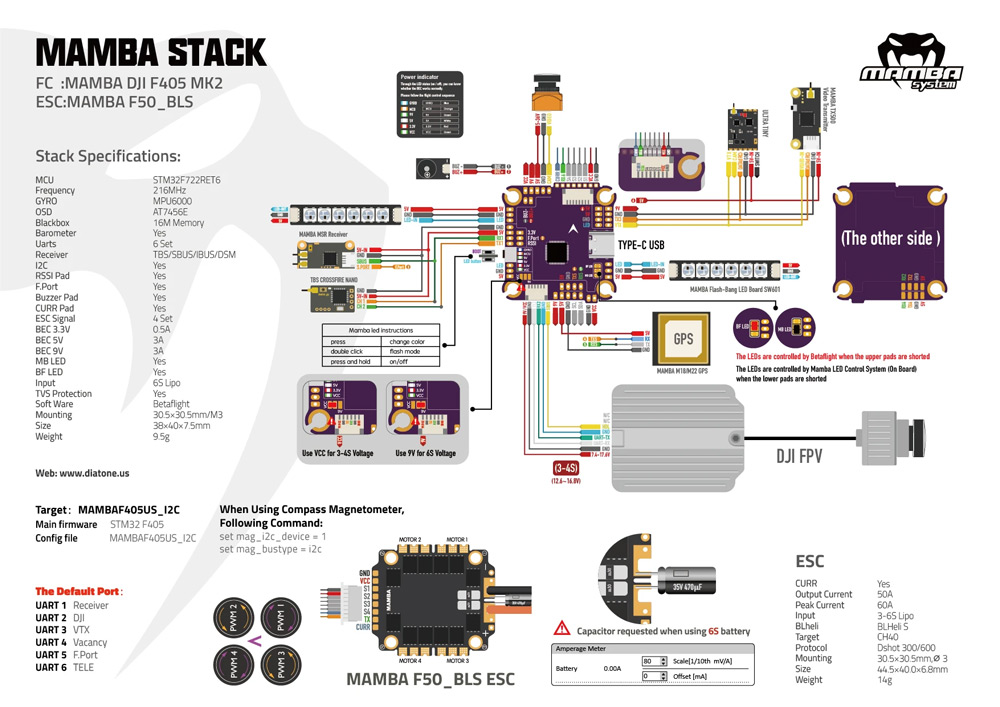

Diagram

Includes

• 1x Diatone Mamba Stack - DJI F405 MK2 FC + F50 50A BLHeli_S ESC
• 1x AMASS Original XT60
• 2x 12AWG 100mm Cable
• 1x Mounting Adapter
• 60x Hard Dampers
• 40x Soft Dampers
• 1x Hardware Kit
• 2x 8pin sh1.0
• 1x Capacitor
• 1x DJI 8 Pin
