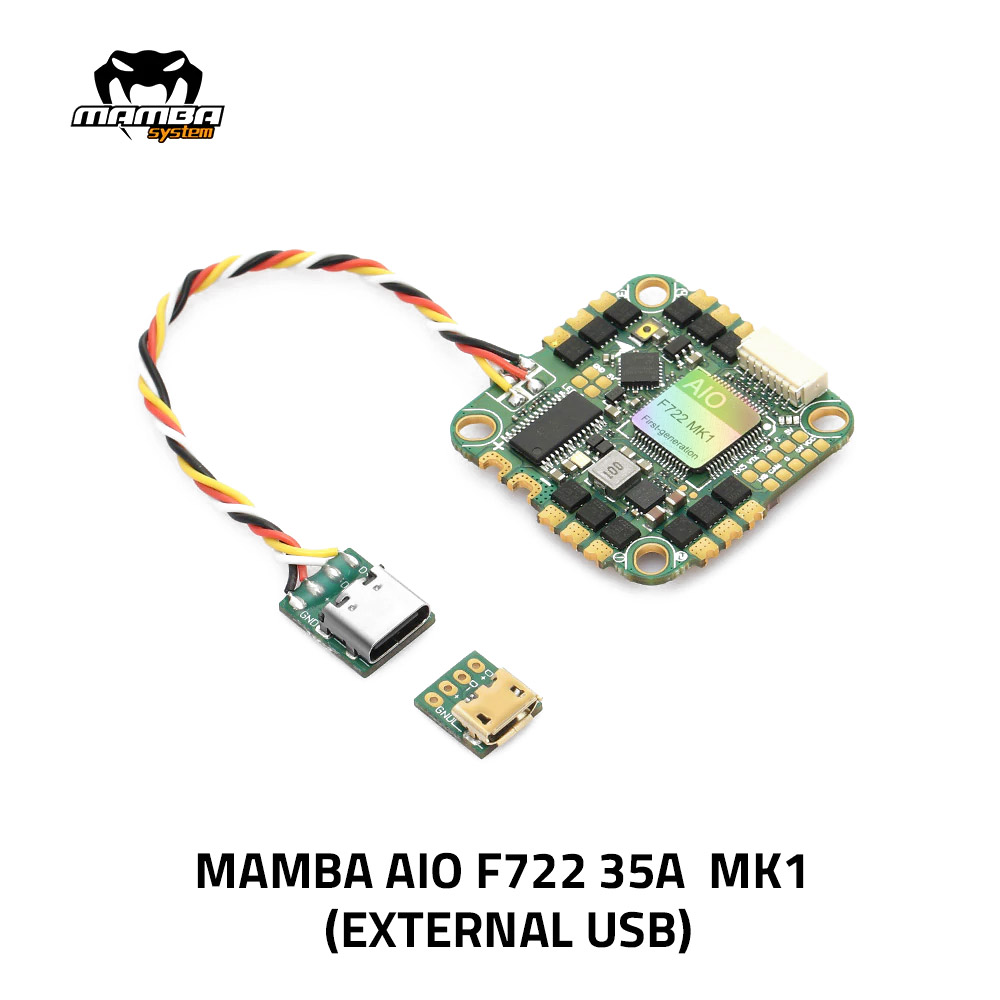

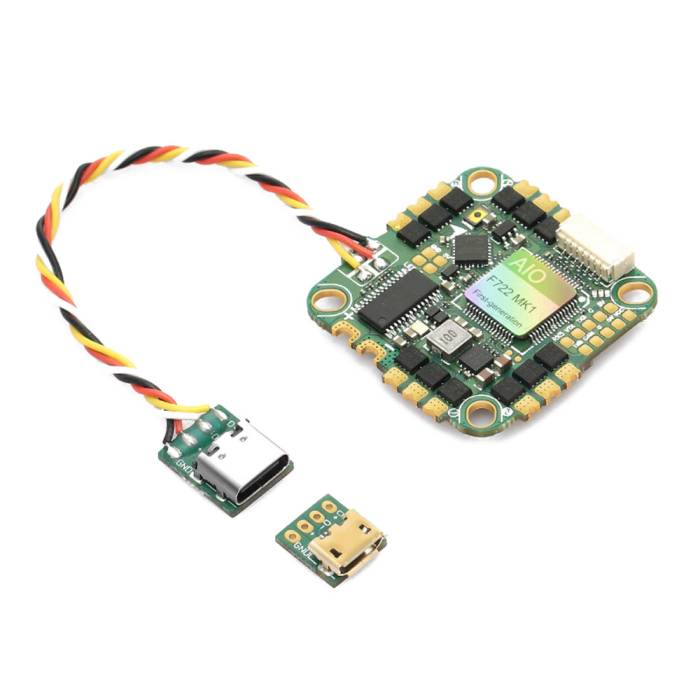

Diatone Mamba MK1 AIO F722 FC + 35A BLHeli_S 2-6S ESC - External USB

The Diatone Mamba F722 MK1 35A AIO (External USB) brings BIG power all in a 30.5x30.5 mounting size! This stack can push 35A all while bringing you the latest features. This is the 8-bit version.

VIDEO: Mamba F7 AIO - Diatone all in one F7 Flight controller and 35A ESC drone building fast

Features

• F35 35A 2-6S 4-in-1 ESC
• MAMBA F722 MK1 FC
• Large Soldering Pad
• External USB

Specifications

MAMBA F722 MK1 FC

• MCU: 216MHz STM32F722RET6
• Input: 2~6S Lipo (8.4~25.2V)
• MOUNTING: 25.5mm, M2
• ESC Soft: Dshot300/600
• LED Controller: BF LED
• TVS Protection: Yes
• GYRO: MPU6000
• Power Led: Yes
• Barometer: Yes
• BEC: 5V 2.5A
• Blackbox: NO
• Uarts: 5 Set
• F.Port: Yes
• Buzz: Yes
• OSD: Yes
• RSSI: No

F35 35A 2-6S 4-in-1 ESC (External USB)

• INPUT VOLTAGE: 2~6S Lipo (8.4V~25V)
• CONTINUE CURRENT: 35A×4
• BURST CURRENT: 45A (10S)
• Target: BLHeli_S GH30
• SOFT: Dshot300/6

Includes

• 1x Diatone Mamba MK1 AIO F722 FC + 35A BLHeli_S 2-6S ESC - External USB
• 1x AMASS Original XT60H-M
• 2x 16AWG 60mm Cable
• 5x Small Dampers
• 5x Hard Dampers
• 5x Soft Dampers
• 2x 7pin sh1.0
• 1x Capacitor
