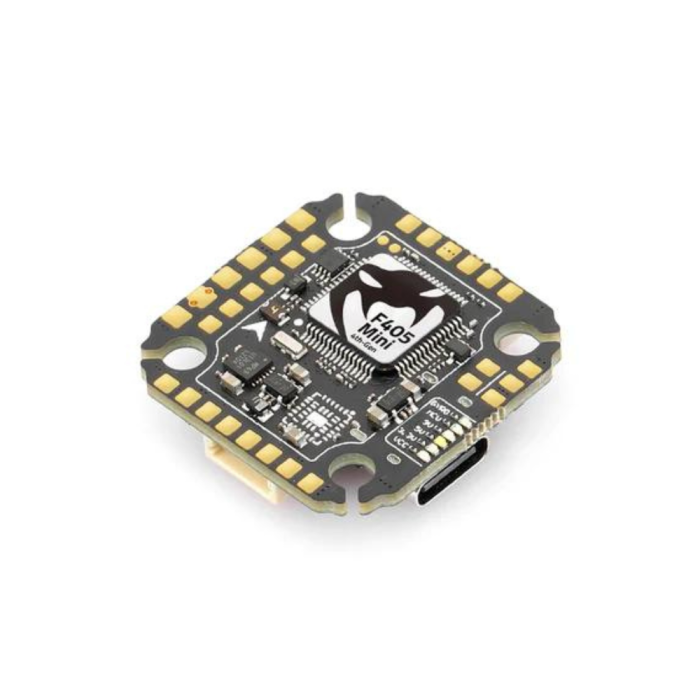

Diatone MAMBA F405 MINI MK4 Flight Controller (MPU6500)
Out of Stock
About this product
Introducing the Mamba F405 MINI MK4 Flight Controller from Diatone. The pad style has been redesigned to increase pad area by 30% and pad spacing by 100%, reducing solder errors and associated failures. It's an all-around easier-to-use flight controller. Now featuring Type-C USB!
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features
- MINI series upgrade DJI interface and 5V 15W/9V 18W 2set BEC
- Mini-series FC use 2mm and 3mm fixing holes
- A full range if integrated Flash and Baro
- MP9943 synchronous rectifier BEC
- Supports 6set UART and 12C
- 32Bit ESC all support 128k
- 100% more pad space
- 4 set power protection
- Special damping ring
- 30% more pad area
- Type-C USB
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Mounting: 20.0mm x 20.0mm M3/M2
- BEC: 3.3V 0.5A/5V 2.5A/9V 2A
- GYRO: MPU6500
- MCU: 168MHz STM32F405
- Blackbox: 16M Memory
- LED Controller: BF LED
- TVS Protection: Yes
- Barometer: SPL06
- ESC Signal: 6Set
- Input: 3-5S LiPo
- Power Led: Yes
- OSD: AT7456E
- Uarts: 6 Set
- F.Port: Yes
- Buzz: Yes
- RSSI: No
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)
Includes
- 1x Diatone MAMBA F405 MINI MK4 Flight Controller (MPU6500)
- 1x 8 Pin Single-ended Cable for Flight Control
- 1x Packaging box
- 5x M2 Silicone damping
- 5x M3 Silicone damping
- 5x M2 ESC Isolation column
- 5x M3 ESC Isolation column
- 1x 8 Pin Cable
- 1x 6 Pin Air unit Cable
- 1x MAMBA Brand Cards
- 1x After-sales Support Card
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 19099 |
|---|---|
| UPC (GTIN) | 764613348903 |
| Manufacturer | Diatone |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 20x20mm |
| Flight Controller Processor | F4 |
