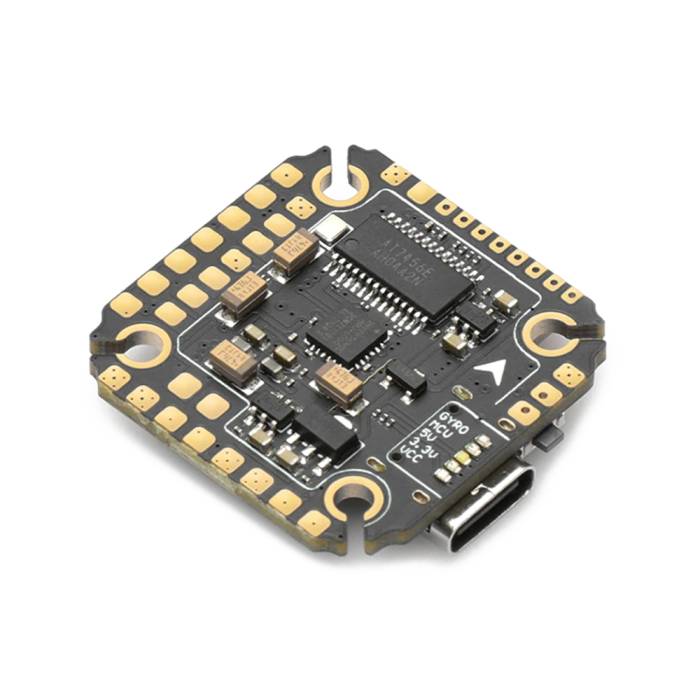

The Diatone Mamba Basic F722 Mini MK3 20x20 Flight Controller is the perfect option for your flight needs! Diatone's Mamba series gives racers an edge in competition. The latest F7 processing technology means you can focus on flying, not on the limits of your equipment.

VIDEO: MAMBA Stack F722 MINI MK3 F7 Flight Controller

Features

• When you connect the USB, the receiver and OSD settings can be saved
• LED signal selection (when Mamba LED system available)
• TVS instant high voltage protection 30V
• BEC short circuit protection
• Large soldering pad area
• Use Type-C (Most)
• I2C function

Updated

• Gyro uses an independent Low Dropout Regulator (Low Dropout Regulator) and reduces ripple interference.
• The pad area of the Mini flight controller (20×20) increased by 140%
• Add self-recovery insurance to the receiver's 5V power supply.
• The standard flight controller (30.5×30.5) adds a spare pad.
• Increase the camera VCC power supply pad.
• Upgrade the anti-interference cable

Specifications

• MCU: 216MHz STM32F722RET6
• Blackbox: 16M Flash Memory
• Input: 2~6S Lipo (8.4~25.2V)
• BEC:3.3V 0.5A& 5V 2.5A
• ESC Soft: Dshot300/600
• MOUNTING: 20mm, M2
• LED Controller: BF LED
• TVS Protection: Yes
• ESC Telemetry: Yes
• GYRO: MPU6000
• Power Led: Yes
• Barometer: Yes
• S/F.Port: Yes
• Uarts: 6 Set
• RSSI: Yes
• Buzz: Yes
• OSD: Yes

Includes

• 1x Diatone Mamba Basic F722 Mini MK3 FC
• 5x Hard Dampers
• 5x Soft Dampers
