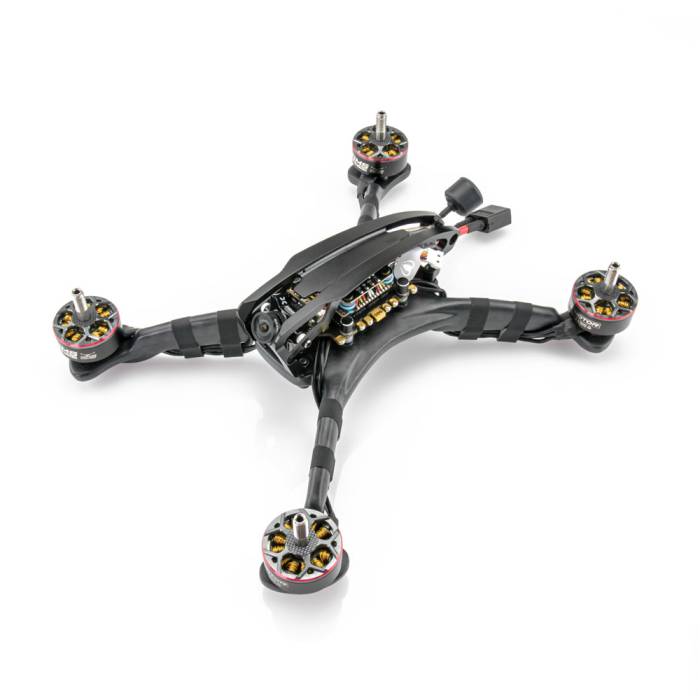

Diatone GT X549 Exorcist 5" Racing Drone - PNP

Check this bad boy out! The Diatone Exorcist looks like a serious piece of kit - with its unique shape and molded carbon fiber airframe. The GT X 549 frame is made of no ordinary carbon fiber, however, it is hand-built with Toray carbon fiber, a renowned carbon fiber manufacturer that makes high-end carbon fiber gear for all sorts of industries.

Coming with premium gear such as T-Motor motors and Diatone Mamba electronics, you know it has the performance to back up the aggressive styling.

Note: PNP, no receiver included.

Specifications

Frame

• Frame Kit：DIATONE GT X549 Exorcist
• Materials: Toray carbon
• Fiber: T700 70%&T900 30%
• Aluminum alloy: 7075 100%
• Motor: 16mm/M3
• Camera: 19mm
• Weight：92g

FC & ESC Stack: MAMBA F722

FC Specifications

• MCU: 216MHz STM32F722RET6 32BIT
• IMU: MPU6000
• Baro: No
• OSD: BF OSD
• Blackbox: 16M Flash Memory
• UARTs: 6
• ESC Soft: Dshot300/600/1200
• ESC Telemetry: RX2
• LED: Blue & Orange for FC Status, White 5V, Red 3.3V

• WS2812 LED Control: BF LED Control
• Smartaudio: Yes
• RSSI: Yes
• Buzz: Yes

• Input: 2~6S Lipo (8.4~25V)
• VTS Protection: Yes
• BEC: 5V 2A (Max 3A)

ESC Specifications

• INPUT VOLTAGE: 2~6S Lipo (7.4V~25V)
• CONTINUE CURRENT: 50A×4
• BEC: NO SOFT: Dshot300/600/1200
• MOUNTING: 30mm/M2
• Capacitor Supply: Panasonic High-Frequency 470uF/35V

FC Firmware

• BetaFlight
• Target: MAMBA F722 (uploading.....)

Other Gear

• Camera: Foxxer Predator Mini 4
• VTX：TBS UNIFY PRO32 NANO 5G8
• Props：Gemfan 51466
• Antenna：TBS TRIUMPH PRO
• Motor： T-Motor BMS Raptor 2700KV

Universal Receiver plug port Standard -  Frsky R-XSR JST1.25，XM+

Includes

• 1x Diatone GT X549 Exorcist Racing Drone - PNP
• 1x Gemfan 51466 Clear Propellers (Set of 4)
• 3x Diatone Lipo Straps
• 1x Spare Hardware Kit
