DarwinFPV HULK AIO - F4 FC + 45A 3-6S ESC

DarwinFPV HULK AIO - F4 FC + 45A 3-6S ESC

In Stock

Only left for same day shipping. Order now!
Earn
DarwinFPV HULK AIO - F4 FC + 45A 3-6S ESC

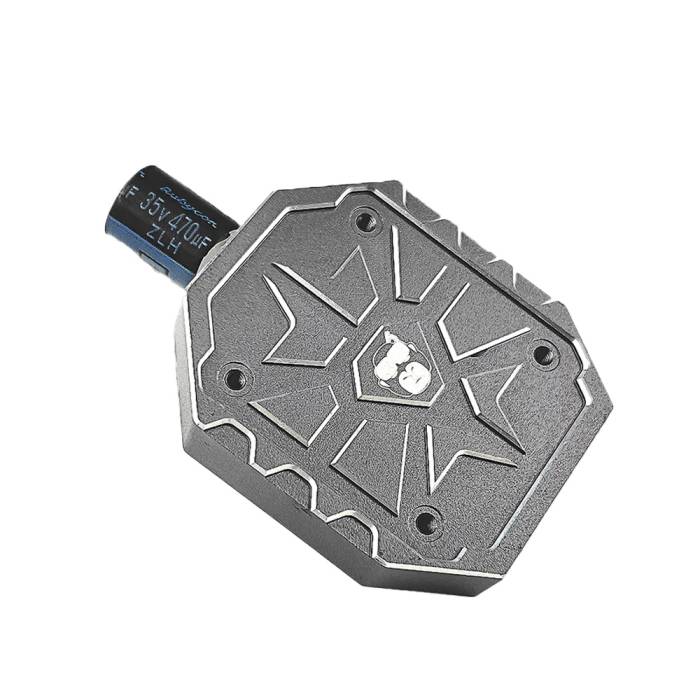

Introducing the DarwinFPV HULK AIO: a top-tier all-in-one solution designed for the HULK Waterproof Cinematic FPV Drone.

About this product

Introducing the DarwinFPV HULK AIO: a top-tier all-in-one solution designed for the HULK Waterproof Cinematic FPV Drone. With IP67 protection and aluminum alloy potting, it ensures exceptional waterproofing and dustproofing for reliable operation. Seamlessly fitting the FPVCYCLE TOOTHFAIRY 2 FRAME, it combines F411 FC, 45A ESC, and SPI receiver into one compact unit, perfect for 4-5 inch quadcopters, delivering unmatched performance and durability for your FPV endeavors.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: Diatone Mamba H743 MK4 FC & 128K ESC Unboxing

Features

  • Great Performance
  • High Reliability
  • Rich Interfaces

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

Specifications

FLIGHT CONTROLLER

  • Firmware Target: Betaflight__DARWINF4SX1280
  • Installing Hole: 25.5mm x 25.5mm (M2)
  • Size: L46.2mm x W39.5mm x H10mm
  • FC MCU: STM32F411CEU6 (100MHz)
  • SOFTSERIAL : 1(Apply for VTX)
  • MAX Current (5 Seconds): 55A
  • OSD: Betaflight OSD AT7456E
  • ESC MCU: EFM8BB21F16G
  • RF Chip: SX1281 (2.4GHz)
  • SBUS:1 (RX1 inverter)
  • IMU: MPU6500
  • Weight: 41.5g
  • Uarts: 2

ESC

  • Input Voltage: 3-6S LiPo
  • Continuous Current: 45A
  • ESC Target: J_H_40
  • BAT/0.75A x 2
  • BEC Output
  • 5V/0.5A x 3

IMPORTANT NOTES

  • Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

Recommended (Not Included)

Links

  •   (Insert links such as manuals, firmware, etc)

Includes

  • 1x DarwinFPV HULK AIO - F4 FC + 45A 3-6S ESC
  • 3x Type-C Rubber stopper
  • 7x SH1.0 Socket plug
  • 5x Spare Cable
  • 1x Hardware Set
  • 1x Sticker

Featured Videos

ADD VIDEO TITLE HERE IN BOLD CAPS

ADD VIDEO TITLE HERE IN BOLD CAPS



More Information

SKU 21285
UPC (GTIN) 724376360925
Manufacturer DarwinFPV
NDAA Compliant No
Mounting Pattern 25.5x25.5mm
Item Returns This item can be returned
