CubePilot CubeLAN 8-Port Switch
$71.99
In Stock
Only left for same day shipping. Order now!
CubePilot CubeLAN 8-Port Switch
The CubePilot CubeLAN 8-Port Switch is a miniature Ethernet switch that can connect up to eight Ethernet devices.
NDAA Compliant Product
About this product
The CubePilot CubeLAN 8-Port Switch is a miniature Ethernet switch that can connect up to eight Ethernet devices. It is compatible with the Cube Red and CubeNode.
Features
- Easily connect 8 Ethernet devices
- NDAA Compliant
- Supports Auto MDI-MDIX Function
Specifications

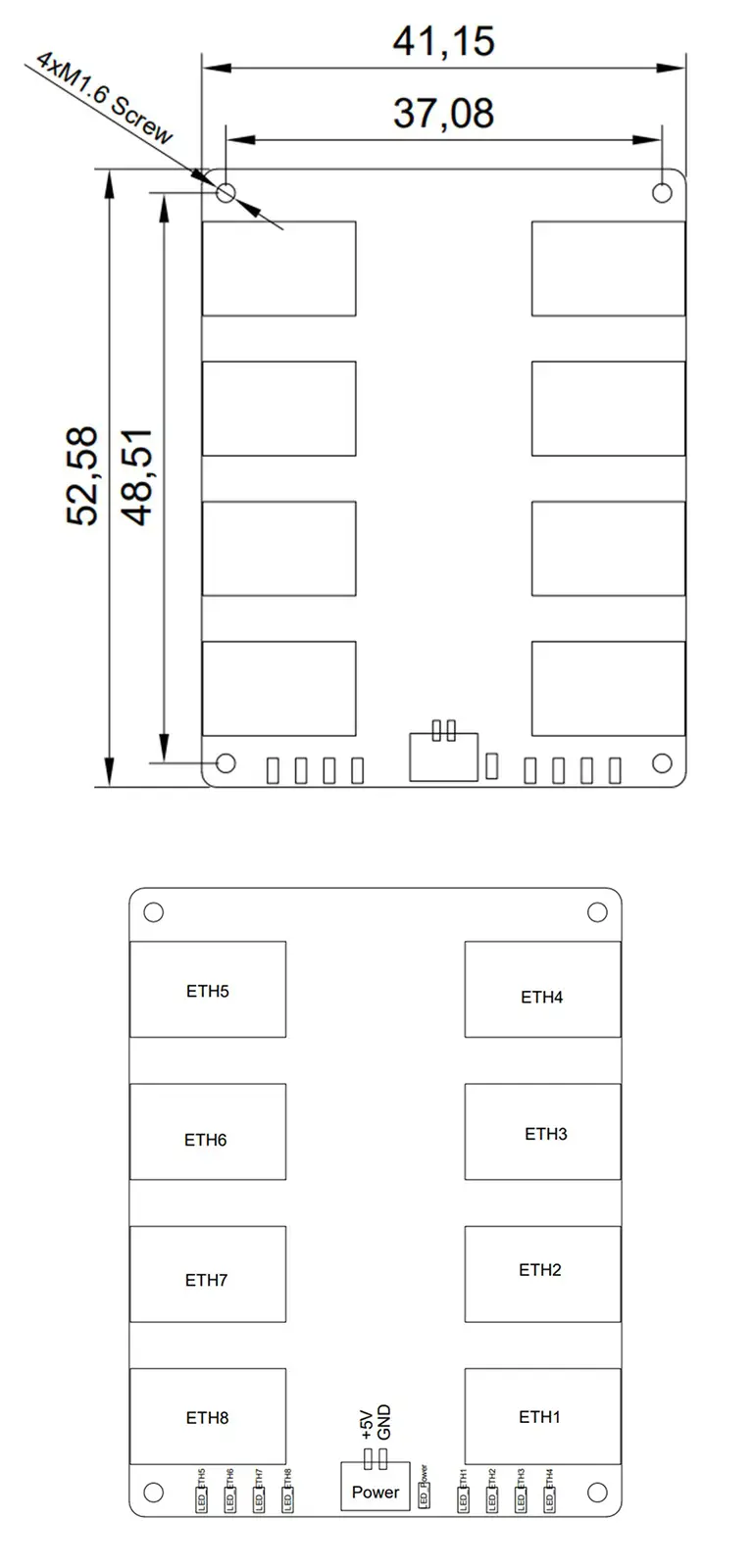

- Dimensions: 41.15 x 52.58 mm
- Speed: 10/100M
- Connector Type (Power): JST SM02B-GHS
- Connector Type (Ethernet): JST SM05B-GHS / TE Connectivity 2294415-1
- Auto MDI-MDIX Function: Supported
RECOMMENDED OPERATION CONDITIONS
- Vin:
- Min: 4 V
- Max: 5.5 V
- Operating Ambient Temperature:
- Min: 0 ℃
- Max: 70 ℃
Includes
- 1x CubePilot CubeLAN 8-Port Switch
More Information
| SKU | G23801TW1Z |
|---|---|
| UPC (GTIN) | 723326373619 |
| Manufacturer | CubePilot |
| Country of Manufacture | Taiwan |
| NDAA Compliant | Yes |
