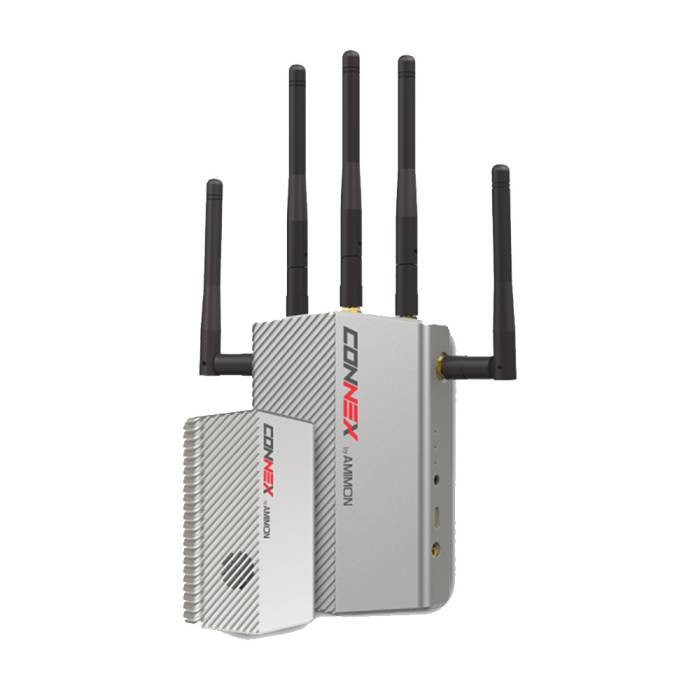

Connex HD Video Downlink
The Connex HD Video Downlink features wireless full 1080p 60fps HD transmission with zero latency.

About this product

CONNEX by Amimon is an innovative Wireless HD link for professional UAV drone applications, and for the FPV enthusiast looking for the ultimate HD FPV experience. Leveraging Amimon’s leadership in the wireless video market, CONNEX brings broadcast HD video quality and robustness standards to the rapidly evolving UAV aerial video arena.

Designed from the ground up for UAVdrone applications, CONNEX packs the performance, form factor, interfaces and reliability required for getting the job done; anywhere, anytime.

Up until now, true, latency free HD FPV has only been a dream. The Connex Wireless HD link brings us to the next level with its zero latency, full 1080P 60fps wireless video transmission. Can you imagine flying FPV in real-time full HD? Now you can make it a reality with the Connex Wireless HD link.

All professional UAV HD applications now share the same requirement – a robust wireless HD video downlink. CONNEX, delivers excellent HD image quality, zero latency, and the highest levels of robustness. CONNEX employs Amimon's revolutionary HD video technology, widely regarded as the industry standard in the broadcast and cinematography markets. It's 5GHz radio, 2x5 MIMO and automatic channel selection ensures resilient connectivity, free from interference, specifically from UAV controls and 2.4GHz links.

The zero-latency transmission offers live, real-time imaging for FPV, broadcasting, inspection, and mission critical applications. CONNEX’s multicast feature supports four screens simultaneously, each receiving perfect HD images. Simply Plug-and-Fly!

For a truly immersive HD FPV experience pair this system up with the new HeadPlay HD FPV Headset.

US ONLY: The Connex unit is only available for shipping to addresses in the USA. We are unable to ship this product internationally.

Key Features

  • True full HD 1080P at 60fps
  • Up to 3,300ft/1,000m range (LoS)
  • Zero latency, real-time video
  • Extremely resilient 5GHz digital link with AFS
  • Encrypted and secured
  • Built-in OSD view (MAVLInk based telemetry)
  • Gimbal control over Futaba ® S.Bus
  • Plug-and-Fly, out of the box setup and operation


  • Aerial video production and cinematography
  • Real-time HD FPV piloting
  • Industrial and commercial inspection
  • Surveillance and security
  • Real estate assessment and supervision
  • Search and rescue
  • First responder situation evaluation
  • Crowd control
  • UAV enthusiast recreation
Transmission distance (Outdoor, Line of Sight) Up to 3,300 ft/1,000m (LoS)
Transmission delay Zero (Less than 1 msec.)
Radio frequency 5.1-5.8 GHz
Channel selection Automatic frequency selection (AFS)
Video formats 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30,1080p/24, 720p/60, 720p/50, 525i/60, 625i/50
Multicast mode Up to 4 receivers with no delay or quality degradation.(Requiring extra ground unit/s)
OSD support MAVLink Telemetry based
Encryption AES-128 & RSA 1024 for key exchange
Operating temperature 0-45° Celsius
Regulation CE, FCC, MIC
  Air Unit Ground Unit
Video interface Mini HDMI HDMI (Type A)
Antenna connectors MMCX (x2) RP-SMA (x5)
Power connector 4-pins DC jack
Power input 8-26V (3S-6S) 7-19V
Dimensions (mm) 103 x 63.6 x 15.6 129 x 89 x 20
Weight 130 grams 260 grams



 Connex HD

Plug & Fly

CONNEX instantaneous setup allows you to start working immediatelly. You will get amazing video quality running on your screen in no time, allowing you to focus on getting the results you need



CONNEX is the real deal; It is real Full HD, and real 1080P 60fps video. CONNEX allows you to inspect, to broadcast or to monitor anything with the highest resolution and in the highest quality.


 Connex HD
 Connex HD

Zero Latency

Less than 1mS latency is zero latency. CONNEX does not buffer or hold your video; It provides you your video without delay, so that you can see and control it in live. You can use CONNEX video to fly, aim the camera, or control the gimbal and the drone.



CONNEX supports a range of up to 1000m or 3300ft, and gives you all the distance you need for your professional missions.


Connex HD
 Connex HD


CONNEX operates in the 5GHz band. By doing so CONNEX does not interfere with your 2.4GHz based remote control signals. In order to promise the link robustness, CONNEX Automatic Frequency Selection will choose the best avaialble channel to be used, and will move seamlessly to an alternative channel if needed.


Gimbal Control

CONNEX also supports the control of your SBus based Gimbal on the drone. using Futaba® S.BUS from the remote control you can use CONNEX to simultaneously get video from the drone and control the gimbal on it.


 Connex HD
 Connex HD


CONNEX On-Screen-Display (OSD) is a great way to see your flight status. The OSD shows both information about your wireless link status, and MAVLINK based telemetry from your drone flight controller.



CONNEX employs AES128 for the video encription and RSA1024 for key exchange to promise that your content is protected. You can rest assure that your content remains only your content.


 Connex HD
