Lumenier Pill LED Module - OVERT

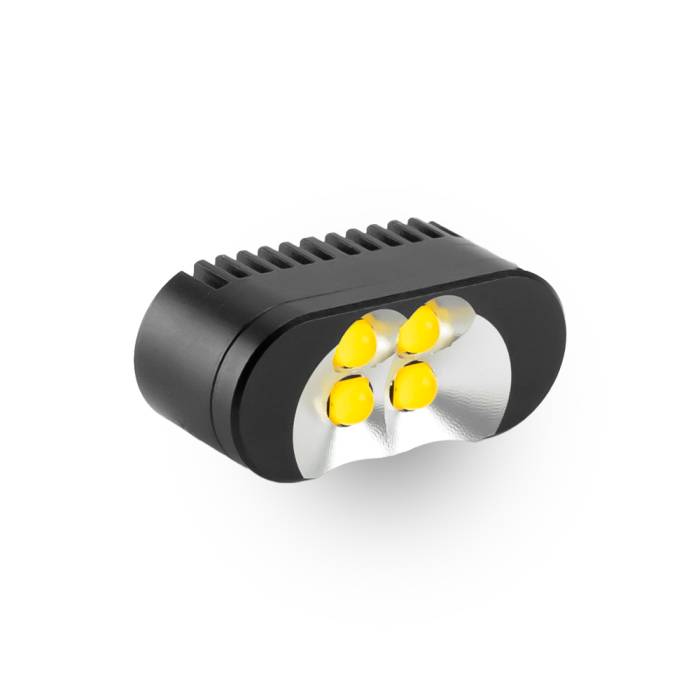

The Lumenier Pill LED - Overt is an ultra-bright LED module designed for maximum performance in minimal space, featuring advanced passive cooling and built-in thermal throttling for reliable, long-lasting operation. Its compact size and high-output efficiency make it ideal for small drone applications, providing intense illumination without adding unnecessary weight. The Lumenier Pill LED ensures optimal light output while protecting components from heat damage, making it perfect for FPV freestyle, aerial photography, search-and-rescue missions, or inspection tasks in low-light environments.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: (Insert Video Title here in Bold)

• The onboard temperature sensor modulates LED power to prevent overheating and protect components from damage
• Multiple operation modes are selectable via PWM input: 50% power, 100% power, Strobe, and Off
• 4x LEDs with a 60° and 120° reflector angle for optimal light spread
• Efficient power design with a wide voltage range of 9-25.2V (3S-6S)
• Aluminum casing provides passive cooling during flight
• M3 mounting holes on the rear and bottom of the case
• 1400 Lux at max power with active cooling
• Miniature form factor
• Lightweight at 10g

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

• PWM Values for Operation modes: 50% Power = 1100, 100% Power = 1300, OFF = 1500, STROBE = 1800
• Mounting Dimensions: M3 x 0.5, 12.5mm distance
• Voltage Range: 9-25.2V (3S-6S)
• Max Amp Draw: 0.81A
• Size: 32 x 14 x 14mm
• Product Weight: 10g

IMPORTANT NOTES

• When mounting directly to power input pads, a capacitor is required.

•  (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")

• Lumenier Pill LED Manual

• 1x Lumenier Pill LED Module - OVERT
• 1x SH 5-Pin to Pigtail
