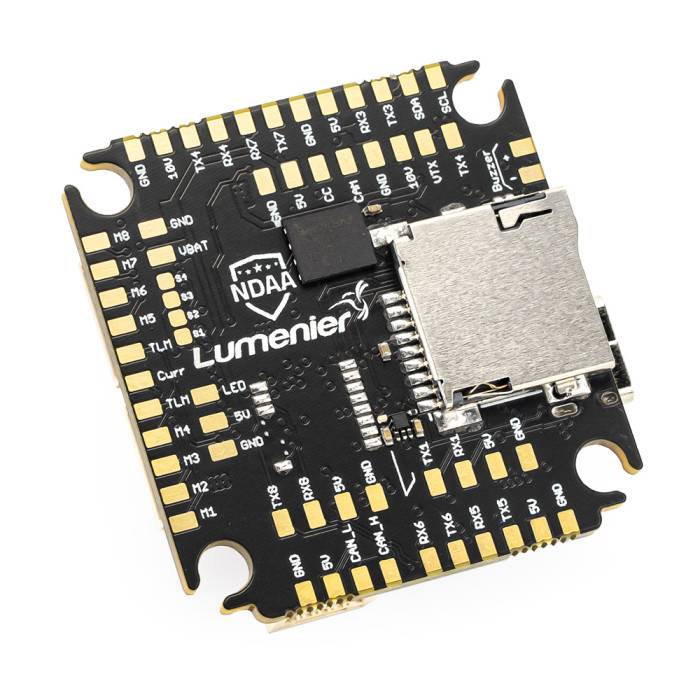

Lumenier LUX F765 Flight Controller - NDAA

The Lumenier LUX F765 Flight Controller is your ultimate solution for high-performance multirotor builds, offering robust features and seamless compatibility with Betaflight, Ardupilot, and PX4. Its NDAA-compliant design ensures reliability and security for professional and recreational pilots alike.

• Supported Firmware - Betaflight, Ardupilot, and PX4
• NDAA compliant and designed in the USA
• Blackbox Storage - SD Card and Flash
• I2C Ports for External Sensors
• 10V Regulator for VTX Power
• 5V Regulator for Accessories
• Analog Current Sensor Input
• Analog Battery Sensor Input
• CANbus Support (PX4 only)
• Integrated BetaFlight OSD
• Camera Control Output
• LED Strip Control
• USB Type-C (2.0)
• 8 UART Ports

• Processor: MCU STM32F765, 216MHz, 512KB RAM, 2MB Flash
• OSD (On Screen Display): Integrated analog BetaFlight OSD
• Sensors: Built-in Gyro, Accelerometer, and Barometer
• Power Supply: 3S to 6S Battery Voltage
• Weight: 9g
• LED Indicators:

  • 2x LEDs for Status (3.3V Power and Firmware Indicator)
• Power Regulators:

  • Analog Inputs: 2x ADC (VBAT and Current)
  • Camera Support: 1x Camera Input
  • +10V Regulator for VTX
  • +5V Regulator
• Mounting:

  • Holes: 30.5mm x 30.5mm
  • Dimensions: 38x38x4mm
• Outputs:

  • 12x Motor/Servo Outputs
  • LED Strip Control
  • Buzzer Output
• Storage:

  • Flash Storage: 128Mb
  • SD Card Slot
• Ports:

  • 1x External I2C Port
  • USB Type-C (2.0)
  • 1x CANbus Port
  • 8x UART Ports

IMPORTANT NOTES:

When using Ardupilot or PX4 builds, an sdcard is required to boot after firmware install.

MANUAL

• Lumenier LUX F765 FC Manual

NDAA DECLARATION

• Lumenier NDAA Product Declaration - LUX F765 Flight Controller

FIRMWARE

• PX4:
  • 002_LUXNDAAF7_PX4_v1.15.4.px4
  • 002_LUXNDAAF7_PX4_bl.hex (PX4 Bootloader)
• Betaflight:
  • 001_Betaflight_4.5.1_STM32F745_LUXNDAAF7.hex
• Ardupilot:
  • 001_LUXNDAAF7_arducopter_v4.5.7_with_bl.hex

• 1x Lumenier LUX F765 Flight Controller - NDAA
• 1x 63mm 8 pin JST-SH Cable
• 1x 23mm 8 pin JST-SH Cable
• 1x 64mm 6 pin JST-SH Cable
• 1x 75mm 4 pin JST-SH Cable
• 4x M3 Rubber Grommets
