Cobra Brushless Multirotor Motors offer performance and value for Your RC Models. They are built from high quality components, and are designed to give years of top-level performance. All Cobra Motors are shipped in a custom designed package that features protective foam on all sides, with separate compartments to protect the motor and accessory pack.

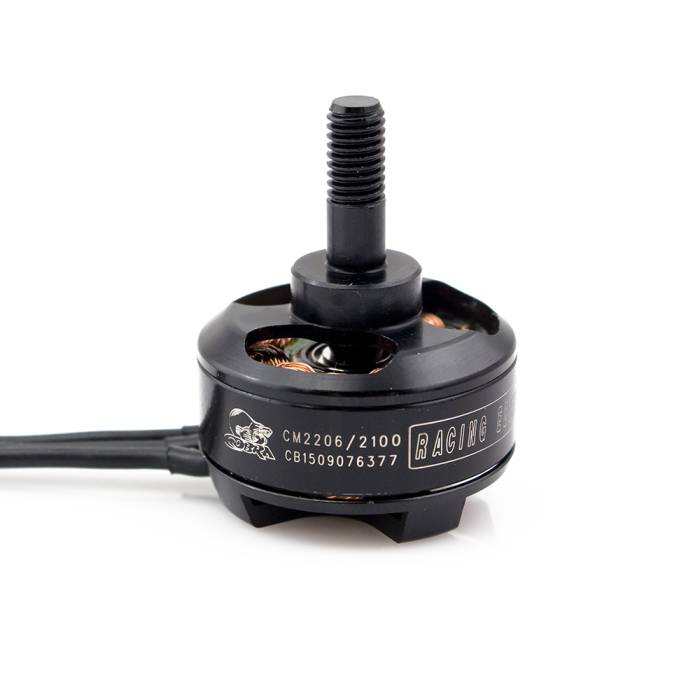

The CM-2206-20 Racing Edition Motor was designed from the ground up to be the ultimate power source for 250mm FPV Racing Quads running on 4-cell Li-Po power! With 6x4.5 props attached, a set of four of these motors will produce 10 pounds of static thrust for blistering acceleration and incredible top end speeds.
The Cobra CM-2206 series motors have a 3.0mm motor shaft for extra strength, as well as oversized ball bearings to support the shaft and provide a long life. The stators are made with 0.20mm laminations for maximum efficiency and minimum Eddy Current losses. Since these motors are typically soldered directly to the speed controller to save weight, the 2206 motors come without bullet connectors and feature extended pre-tinned motor leads that are 10 inches (254mm) long. These motors also have 3mm threaded holes in a 16x19mm pattern on the back plate for easy installation on your model.
The CM-2206 series motors feature an integrated 5mm threaded motor shaft which eliminates the chance of having a prop adapter spin off in flight. The included prop washer and nylon insert prop nut provides a solid attachment for your propellers that will not loosen up and slip during use.
Included with every Cobra CM-2206 Series Motor is a complete accessory package which contains the following items:
- Four M3x5mm Motor Mount Screws
- Four M3 Flat Washers
- Machined Aluminum Prop Washer
- Locking Prop Nut with Nylon Insert
Click here for the Cobra CM-2206/20 Propeller Data Chart
Cobra CM-2206/20 Motor Specifications Stator Diameter 22.0 mm (0.866 in) Stator Thickness 6.0 mm (0.236 in) Number of Stator Slots 12 Number of Magnet Poles 14 Motor Wind 20 Turn Delta Motor Kv Value 2100 RPM per Volt No Load Current (Io) 0.85 Amps @ 10 Volts Motor Resistance (Rm) per Phase 0.098 Ohms Motor Resistance (Rm) Phase to Phase 0.065 Ohms Maximum Continuous Current 25 Amps Max Continuous Power (3-cell Li-Po) 280 Watts Max Continuous Power (4-cell Li-Po) 370 Watts Motor Weight 36.5 grams (1.29 oz.) Outside Diameter 27.0 mm (1.063 in.) Motor Shaft Diameter 3.00 mm (0.118 in.) Prop Shaft Diameter 5.00 mm (0.197 in.) Motor Body Length 16.5 mm (0.650 in.) Overall Shaft Length 35.3 mm (1.390 in.) Motor Timing 5-10 degrees PWM Frequency 8-20 KHz
Motor Performance Graphs
The following downloadable PDF files show the performance data curves of the Cobra CM-2206/20 motor, over its entire throttle range, with a variety of propellers. These graphs can be downloaded and printed to use as a reference for calculating power requirements at specific thrust levels, and enable the user to calculate flight times, current draw and other motor parameters.
3-Cell Li-Po Power
- Cobra CM-2206/20 Performance Data with APC 6x4-E prop on 3S Li-Po
- Cobra CM-2206/20 Performance Data with FC 6x4.5 prop on 3S Li-Po
- Cobra CM-2206/20 Performance Data with HQ 6x4.5 prop on 3S Li-Po
4-Cell Li-Po Power
- Cobra CM-2206/20 Performance Data with APC 6x4-E prop on 4S Li-Po
- Cobra CM-2206/20 Performance Data with FC 5x4.5x3 prop on 4S Li-Po
- Cobra CM-2206/20 Performance Data with FC 6x4.5 prop on 4S Li-Po
Performance Graph Instructions
This downloadable PDF file shows the step by step process to use for interpreting the data shown in the Motor Performance Graphs. By following this procedure, you can determine how to select a proper motor for a Multirotor aircraft, as well as calculate required power levels, determine overall prop efficiency and calculate expected flight times based on the battery size that is used. This document can be printed out and saved as a valuable reference tool to keep in your workshop for future use as well.
Motor Performance Graph Instructions
- Additional Information
SKU 2995 Manufacturer Cobra UPC (GTIN) 652118486452 Popo Compatible No
