- Description
-
Caddx's updated SDR2 comes in two variants, Race and Freestyle, with specific benefits to each. This Freestyle camera focuses more on image quality featuring 1200TVL resolution versus 1000TVL on the Race camera. The Freestyle also sports a 1/2.8″ SONY Exmor-R STARVIS sensor versus a SONY STARVIS sensor on the race version.

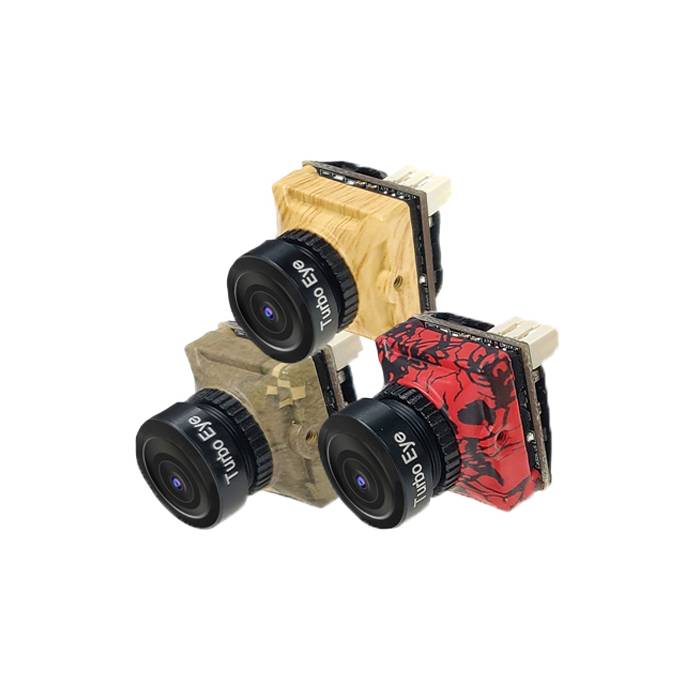

Choose from three different colors to suit your build, Hotfire, Camouflage, and Wood.
Specifications
Model Turbo micro SDR2 plus (Freestyle version) Image Sensor 1/2.8" SONY Exmor-R STARVIS sensor Horizontal Resolution 1200TVL TV System NTSC & PAL (changeable) IMAGE 16:9 & 4:3 (changeable) WDR Super WDR (Double Scan) Min. Illumination 0.0001Lux@F1.8 (Starlight) Lens Full Size Turbo Eye Lens Synchronization Internal Electronic Shutter PAL: 1/50~100,000; NTSC: 1/60~100,000 S/N Ratio >60dB (AGC OFF) Video Output CVBS Camera OSD ADVANCE MENU DNR 3-DNR LANGUAGE ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN Day/Night Auto/Color/B&W/EXT Dimensions 19mm*19mm*19mm Wide Power Input DC 5-40V Work Temperature -20℃~+60℃ Work Humidity 20%~80% Weight 5.5g (N.W.)/ 40.5g (G.W.) Includes
- 1 x Camera
- 1 x Aluminum bracket
- 1 x 5D-OSD menu board
- 1 x 4pin FPV silicone cable A (extend into a 2pin joint for OSD board and a 3pin joint for FPV)
- 1 x FPV silicone cable B (2-pin port for both side)
- 1 x Internal hexagonal wrench
- 1 x Screws set
- Additional Information
-
SKU 9405 Manufacturer N/A UPC (GTIN) No - Reviews
-
