Brotherhobby Speed Shield 2207.5 2700kv Motor

More Views

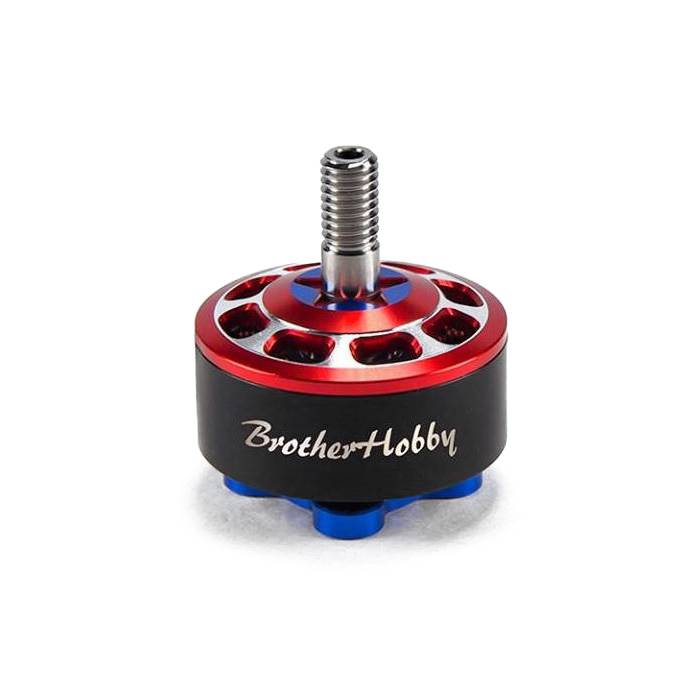

Brotherhobby Speed Shield 2207.5 2700kv Motor

The Speed Shield 2207.5 motor from Brotherhobby.

In Stock

The Speed Shield from Brotherhobby looks reminiscent of a certain superpowered shield, and while it may not give you superpowers, the engineers from Brotherhobby have been able to fit a unique stator size of 2207.5 inside a rather small bell. The result is an amazingly powerful motor in a small package that only weighs 31g.


  • KV: 2700KV
  • Configuration:12N14P
  • No.of Cells(Lipo):4-6S
  • Rotor: N52H arc magnets
  • Stator:0.15mm Nippon Steel silicon steel
  • Shaft: Titanium Alloy hollow shaft
  • Bearings: Japanese NMB 9x4x4mm
  • Wire AWG:20AWG 16cm length
  • Bell cap: Al 7075
  • Base casing: Al 7075
  • Prop Adapter Shaft Thread: M5
  • Bolt Pattern: M3 (16X16mm)
  • Weight: 31g with wires


  • 1x Brotherhobby Speed Shield 2207.5 Motor
  • 1x Screw Set
  • 1x Hex Nut
Additional Information
SKU 9226
Manufacturer BrotherHobby
UPC (GTIN) 721248873118
Popo Compatible No
