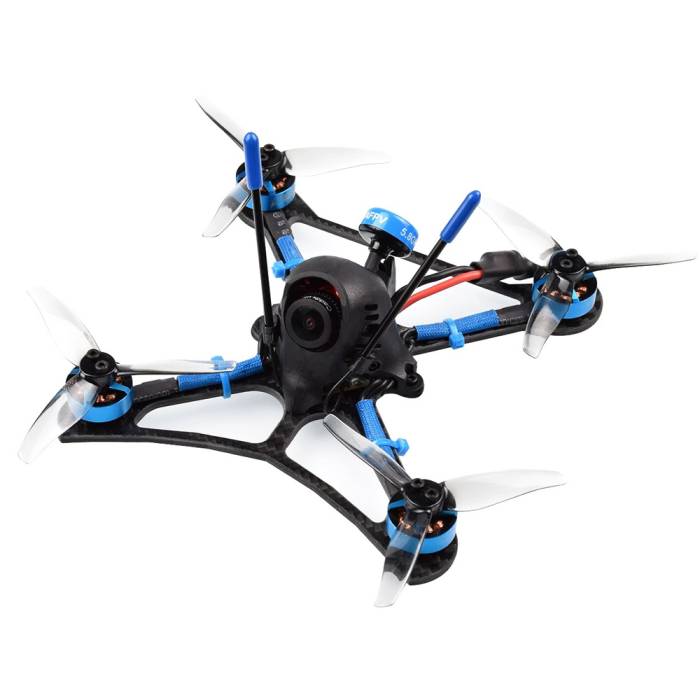

BetaFPV TWIG XL 3'' FPV Toothpick Quadcopter V1
About this product
The BetaFPV TWIG XL 3'' FPV Toothpick Quad V1 is the first joint quad with Racer X FPV, but not the last one!
This TWIG XL X version frame is definitely the most popular frame at present. The performance and power to weight ratio of this frame design are out of this world! With the Caddx Ratel Camera, 1404 3800KV Brushless Motors, 12A Toothpick F4 2-4S AIO FC, it supports 450mAh 4S battery and provides you super-efficient flight experience. What's more, we utilized an injection-molded canopy, protecting your camera well even in several severe crashes.
Note: Battery is NOT included.
- Weight: 104.2g (without battery)
- FC&ESC：12A Toothpick F4 2-4S AIO FC
- Motors: 1404 3800KV Brushless Motors
- Props: Gemfan 3016 3-Blade Props
- Camera: Caddx Ratel Camera
- VTX: A01 25-200mW 5.8G VTX
- Frame: TWIG XL Frame
- Canopy: Injection Molded Canopy for TWIG
- Receiver Option: Frsky XM / DSMX / Futaba S-FHSS / TBS Crossfire
- Battery: 450mAh 4S battery (NOT included)
- Flight time: 3:00-5:00mins

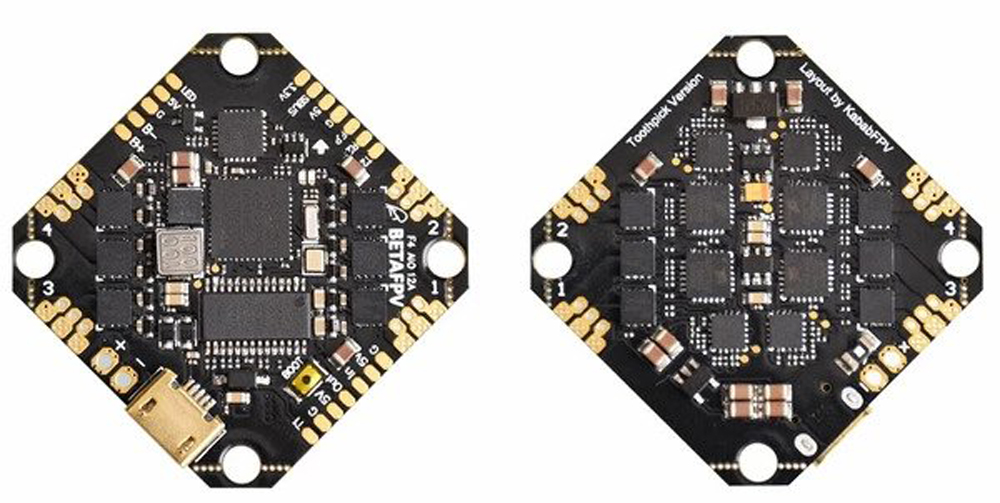

Toothpick F4 2-4S 12A AIO FC- Integrated with a Betaflight MATEKF411RX processor FC, Betaflight OSD, and 2-4S 12A ESC, support 4S battery for the fast-flying experience.
Camera & VTX
The Caddx Ratel is a great camera choice for both night flight as well as during the day! Equipped with a high quality 1/1.18" HDR sensor, it provides up to 0.0001 Sensitivity of lux. It is very versatile in that you can switch between PAL and NTSC video and also between 4:3 and 16:9 video formats. Latency is super low at only 8ms.
Specification of Camera
- Image Sensor: 1/1.8" Inch starlight HDR sensor
- Horizontal Resolution: 1200TVL
- FOV: 180 Degree
- Min. Latency: 8ms
- TV System: NTSC & PAL (changeable)
- Image: 16:9 & 4:3 (changeable)
- WDR: Super WDR (HDR)
- Min. Illumination: Starlight
- Synchronization: Internal
- Electronic Shutter: PAL: 1/50~100,000; NTSC: 1/60~100,000
- S/N Ratio: >60dB (AGC OFF)
- Video Output: CVBS
- Camera OSD: Separate OSD
- DNR: 3-DNR
Specification of VTX
A01 VTX board is lighter and perfectly suitable for canopy with switchable output power between 25mW and 200mW. SmartAudio is available for VTX remote control in default.
- Output power: 25mW and 200mW (Adjustable)
- Smart Audio function is included for radio control
- Frequency: 5.8GHz 6 bands 37 channels
TWIG XL frames are premium 3mm thick, high-grade T700 carbon cut along the weave and chamfered on both sides interior and exterior edges at .7mm. All the frames are approximately 140mm motor post to motor post and swing up to 3” props. The frames accommodate motor mounting for 4-hole 9x9 or 12x12 motor mounts.
Injection Molded Canopy
The micro canopy specially designed for a 19-20mm camera, which adopts an injection molded process and PE material, much durable than the original canopy.
- 1 x TWIG XL 3'' FPV Quad
- 1 x Gemfan 3016 3-Blade Props (4pcs)
- 1 x Set of M2*7 screws
