BETAFPV Toothpick F4 2-6S AIO Brushless Flight Controller 20A (BLHeli_32) V4

More Views

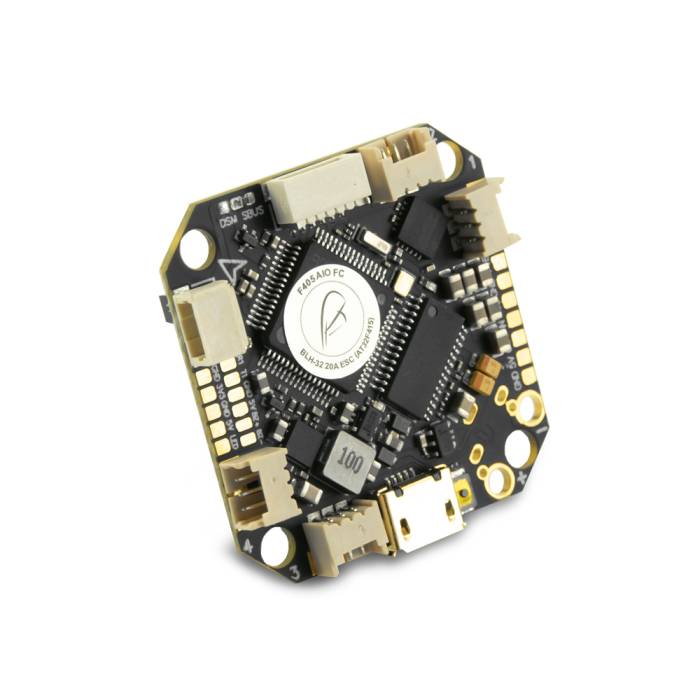

BETAFPV Toothpick F4 2-6S AIO Brushless Flight Controller 20A (BLHeli_32) V4
The new Toothpick F405 2-6S AIO 20A FC is a brushless flight controller. Compared with the V3 version, the new V4 board updates the F411 chip to F405. This item is ultralight and can be used with the toothpick drone or a cinewhoop quadcopter.
Backorder
$62.99
OR
Description

The new ultralight Toothpick F405 2-6S AIO 20A FC is finally released!

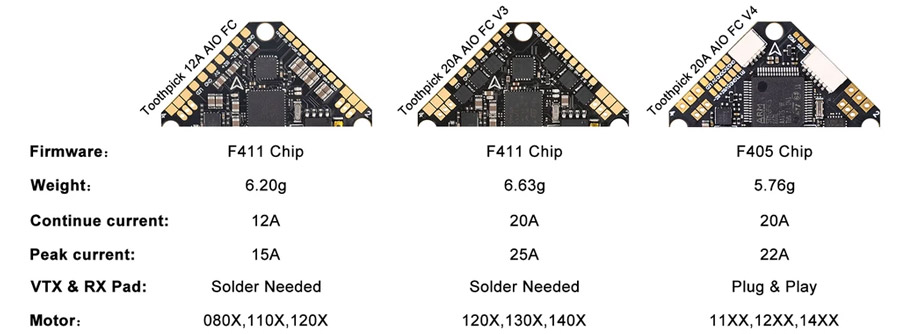

Compared with the V3 version, the new V4 board updates the F411 chip to F405. It can handle 20A of continuous current and up to 6S! Strong performance lets you break through the limits of your quad and explore more possibilities in the flight.

Highly recommend using it on Beta95X V3 and Beta95X V3 HD Digital VTX to get a smooth flight

Features

  • Updated the F411 chip to F405, this new 20A AIO board handles a continuous current of 20A and a burst current of 22A, bringing pilots a more stable flight.
  • BETAFPV 12A/20A AIO flight controller reserves the same UART ports layout, UART3 for Rx, UART4 for DJI, UART6 for SmartAudio, and the Spare UART1, more convenient for pilots to solder.

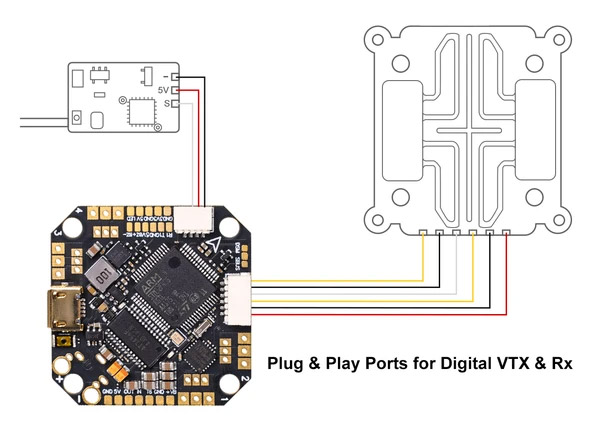

  • Come with 2 integrated Plug & Play Ports for both digital VTX and Rx, less solder work needed, easy to install.
  • Come with a 26mm x 26mm whoop mounting pattern, this board can be added to both the toothpick drone and the cinematic whoop quadcopter like Beta95X V3 and Beta95X V3 HD Digital VTX.
  • There are 2 LEDs on the bottom of the board to indicate the status, including the Power LED ( Red), FC LED(Blue).

Specifications

Flight Controller

  • CPU: STM32F405RGT6
  • Six-Axis: MPU6000
  • Size: 26mm x 26mm, whoop mounting pattern
  • Firmware version: Batefight-BETAFPV405-4.2.X
  • OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
  • Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/ Flysky Receiver/ TBS Crossfire Receiver/DSMX Receiver
  • Connecter: XT30, it also can be changed to XT60 if pilots need it.
  • Weight: 5.76g

ESC

  • Support PWM, Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300´╝îDshot600
  • Input voltage: 2S-6S Lipo
  • Continuous current: 20A
  • Peak current: 22A
  • Firmware: BLHELI-32

Includes

  • 1x Toothpick F405 20A AIO FC V4
  • 1x Cable Pigtail (XT30)
  • 4x M2x10mm screws
  • 4x M2 nuts
  • 4x Anti-vibration rubber dampers
  • 4x Motor Pluggable Pins
  • 1x 6-Pin Connector for Digital VTX
  • 1x 4-Pin Connector for Rx
Additional Information
SKU 15324
Manufacturer BETAFPV
UPC (GTIN) 789862859109
