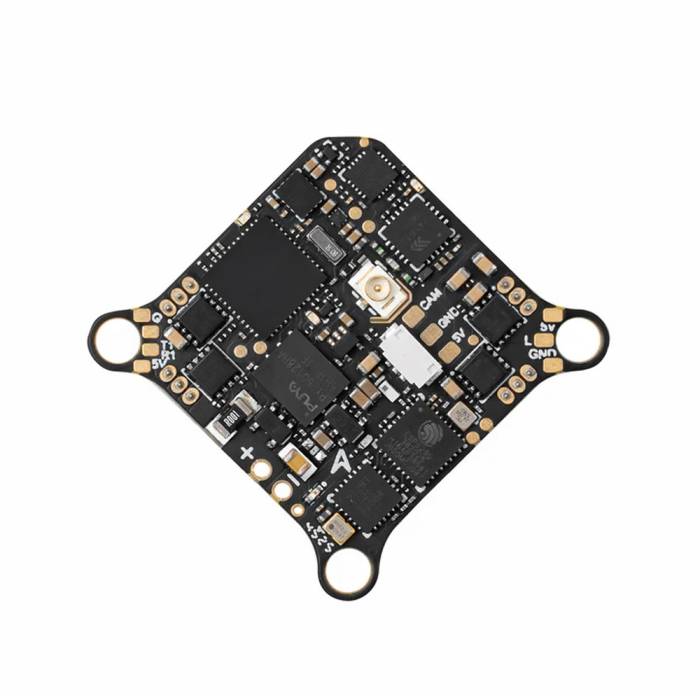

BETAFPV Matrix V2 AIO - G4 FC + 12A 1S ESC + 400mW VTX + ELRS - Solderless
The BETAFPV Matrix V2 AIO is the next-generation flight controller engineered for pilots who refuse to compromise.
About this product
The BETAFPV Matrix V2 AIO is the next-generation flight controller engineered for pilots who refuse to compromise. Building on the proven all-in-one design, it delivers a substantial leap in both performance and durability. Experience the raw power of a 12A continuous ESC, the crash-proof confidence of 3-point mounting, and the convenience of solder-free design. This is the durable, high-output core for your most demanding 1S whoop builds.

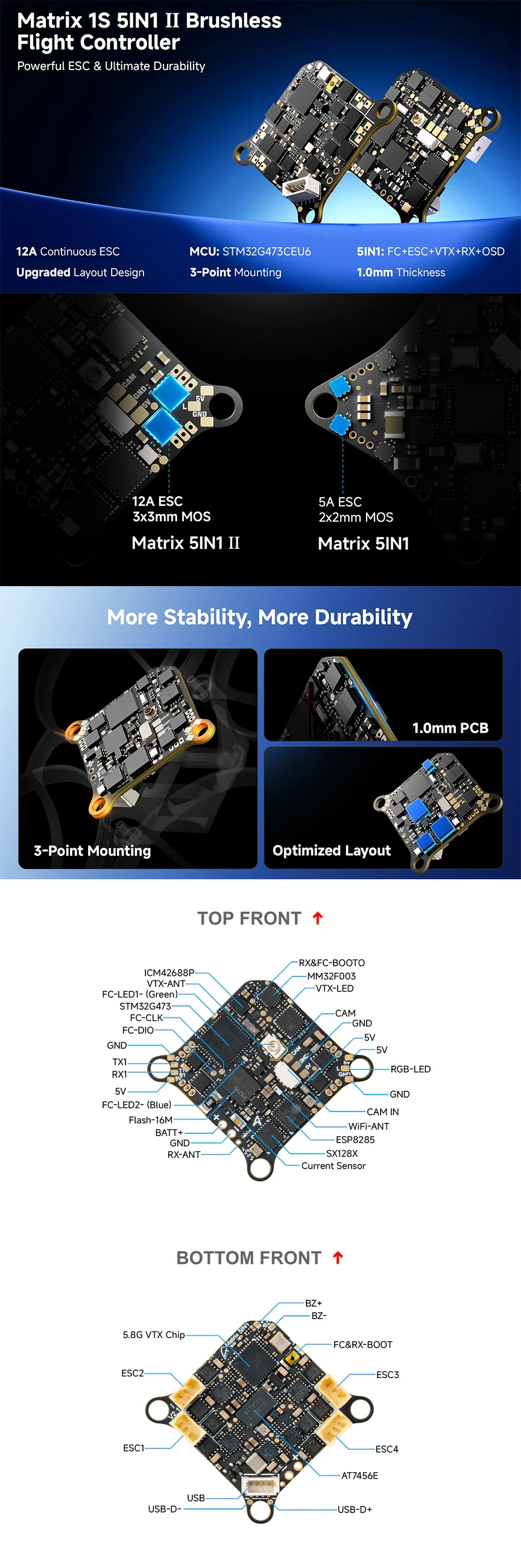

Features
- All-in-one integration combines the FC, ESC, OSD, Serial ELRS 2.4GHz RX, and a 5.8GHz 400mW VTX into a single, compact unit
- Upgraded 12A continuous ESC
- Durable 3-point mounting system and a 1.0mm thick PCB to absorb crash impacts and protect core components
- Solder-free for easy connection and maintenance
- Built around a powerful G473 processor for precise racing and complex freestyle maneuvers
- Optimized layout improves durability and overall reliability
Specifications
FLIGHT CONTROLLER
- MCU: STM32G473CEU6
- Gyro: ICM42688P
- Blackbox memory: 16MB
- Sensor: Voltage & Current
- BEC: 5V, Max 3A
- UART: UART 1, UART 2 (For VTX), UART 3 (For RX), UART 4
- BetaFlight OSD: AT7456E
- ESC: 12A continuous
- RX: Serial ELRS 2.4GHz (V3.4.3)
- VTX: 5.8GHz 48 channels, Max 400mW
- FC firmware: Betaflight_4.5.3_BETAFPVG473_V2
- USB port: SH1.0-4Pin
- Motor connector: JST1.25
- Battery connector: BT2.0
- Mounting hole size: 26mm x 26mm
- Weight: 4.1g
ESC
- Power input: 1S Only
- Current: 12A continuous, 18A peak
- ESC firmware: A_X_5_96KHz_V0.19.hex for BB51 Bluejay firmware
- Digital signal protocol: DShot300, DShot600
VTX
- Output power: 25/100/200/400/PIT
- Frequency: 5.8GHz 48 channels, with Raceband: 5658~5917MHz
- Channel SEL: SmartAudio2.0
- Modulation type: FM
- Frequency control: PLL
- All harmonic: Max -50dBm
- Frequency stability: ±100KHz (Typ.)
- Frequency precision: ±200KHz (Typ.)
- Channel carrier error: ±1.5dB
- Antenna port: 50 Ω
- Operating temperature: -10℃-80℃
Includes
- 1x BETAFPV Matrix V2 AIO Brushless Flight Controller
- 1x Type-C to SH1.0 Adapter
- 1x SH1.0-4Pin Adapter Cable
- 1x 5.8G Antenna
- 4x M1.2x4 Self-tapping Screws
- 4x M1.4x5 Self-tapping Screws
- 4x Shock Absorbing Balls
More Information
| SKU | G24292CN1Z |
|---|---|
| UPC (GTIN) | 723326379925 |
| Manufacturer | BETAFPV |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 25.5x25.5mm |
| Amps | 12 Amps |
| Flight Controller Processor | G4 |
| Voltage | 1S |
| ESC Firmware | Bluejay |
| Number of ESC's | 5 ESC's in 1 |
