BETAFPV F405 20A 2-4S BLHeli_S AIO Brushless Flight Controller (Whoop Version) - V3

More Views

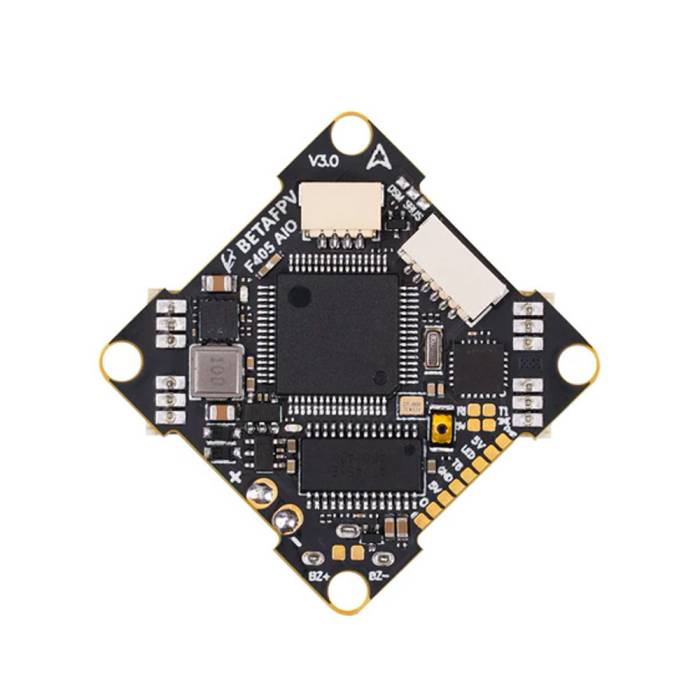

BETAFPV F405 20A 2-4S BLHeli_S AIO Brushless Flight Controller (Whoop Version) - V3

The BETAFPV 20A F405 AIO Flight Controller is a power FC that has a thickness of 1.2mm, 20A (22A burst) continuous current and you can mount it into larger builds like the Beta95X V2 and Beta95X V2 HD Digital VTX.

In Stock
$64.99

Only 2 left

OR
Description

The BETAFPV 20A F405 AIO Flight Controller is a power FC that has a thickness of 1.2mm, 20A (22A burst) continuous current and you can mount it into larger builds like the Beta95X V2 and Beta95X V2 HD Digital VTX.

Note: Because the 12A V3 FC version and 20A AIO V3 FC have unified the UART, both two boards have the same appearance, FC diagram, statue LED, and way to connect the RX.

Features

Updated the F411 chip to F405, this new 20A(12A) board can handle 20A(12A) continuous current(22A(13A) burst), gives the pilots a powerful flight.
Come with 2 integrated Plug & Play Ports for both digital VTX and Rx, less solder work needed, easy to install.
Completed the traditional mounting hole, more like the Toothpick type, perfectly prevent the damping pad from falling off, which is the super-easy installation in most whoop frame.
BETAFPV 20A/12A AIO flight controller will unify the UART, which is convenient for pilots to solder.
Compatible with 110X, 120X, 140X motors, pilots can use the 20A(12A) AIO FC to build a bigger quad with this powerful FC to save weight and size.

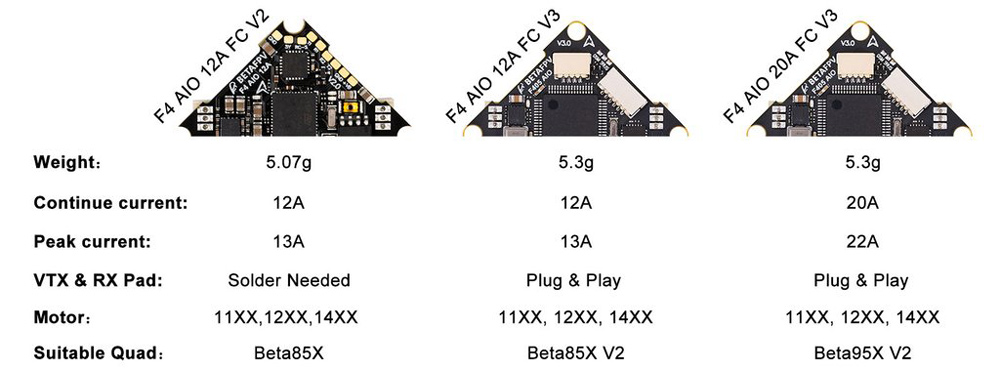

Comparison of F4 12A AIO FC V2, F405 12A AIO FC V3 & F405 20A AIO FC V3

Specifications

F405 20A AIO FC V3

  • CPU: STM32F405RGT6
  • Six-Axis: MPU6000
  • Size: 26mm x 26mm
  • Firmware version: Batefight-BETAFPV405-4.2.X
  • OSD: Built in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
  • Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/ Flysky Receiver/ TBS Crossfire Receiver/DSMX Receiver
  • Connecter: XT30
  • Weight: 5.3g

ESC

  • Support PWM,Oneshot125,Oneshot42, Multishot,Dshot150,Dshot300,Dshot600
  • Input voltage: 2S-4S Lipo
  • Continuous current: 20A
  • Peak current: 22A
  • Firmware: BLHELI-S G-H-25

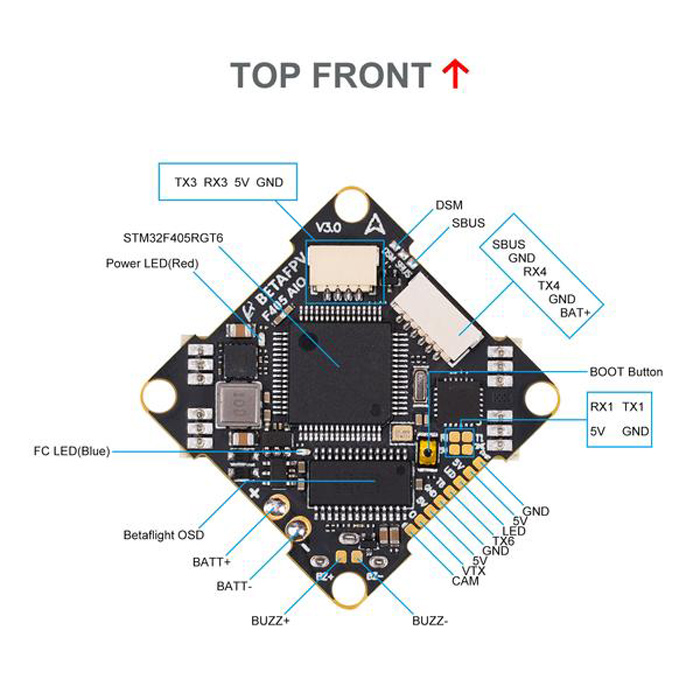

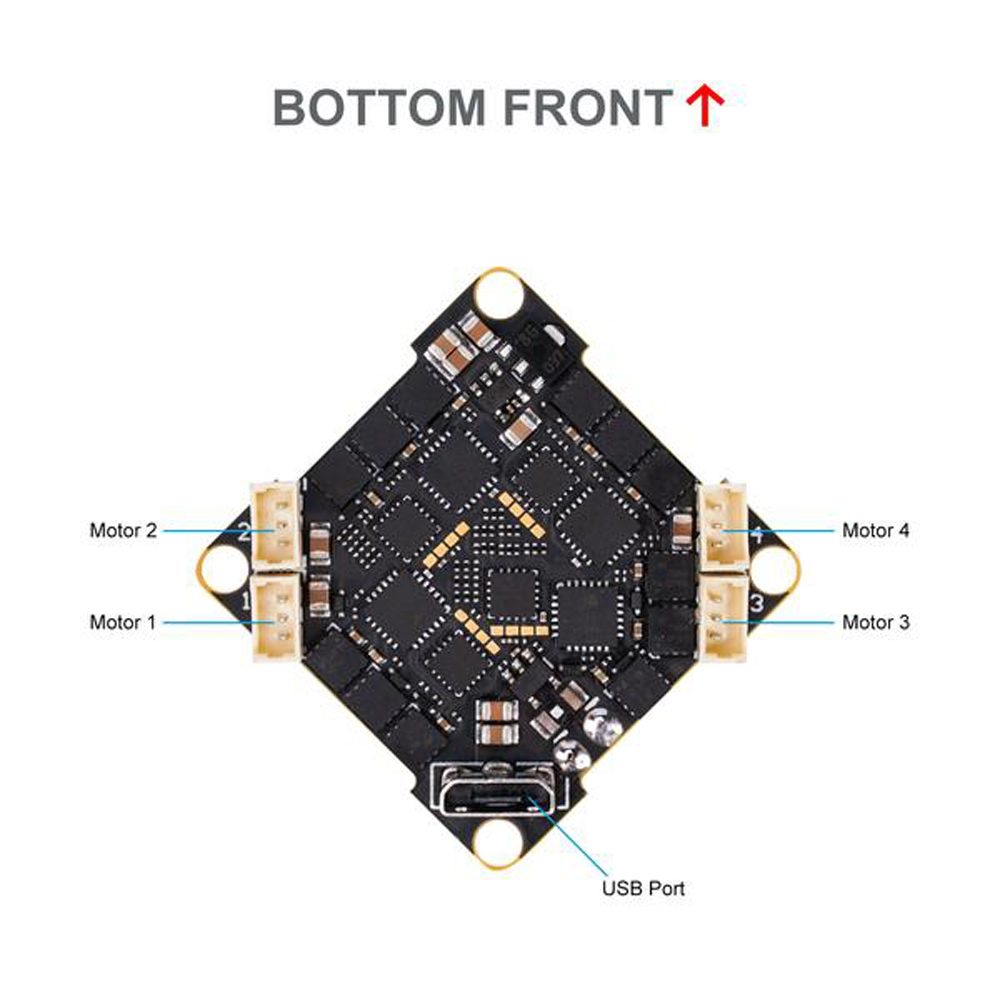

Diagram for F405 20A AIO FC V3 & F405 12A AIO FC V3


Status LED for F405 20A AIO FC V3 & F405 12A AIO FC V3

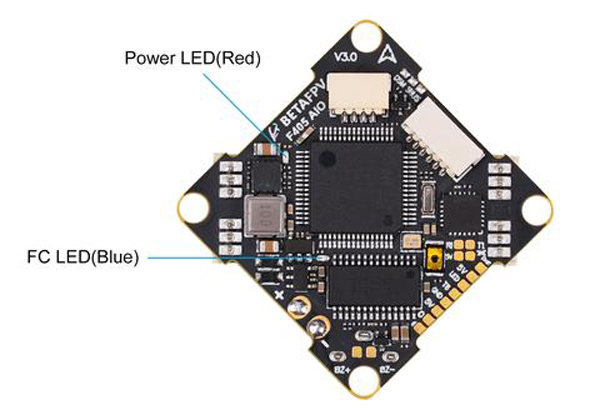

There are 2 LEDs on the bottom of the board to indicate the status, including the Power LED ( Red), FC LED(Blue).

LED

Status

Description

Power LED ( Red)

Solid

Power on

FC LED ( Blue )

Solid

Motor Armed

How to Connect the External Rx to F405 20A AIO FC V3 & F405 12A AIO FC V3

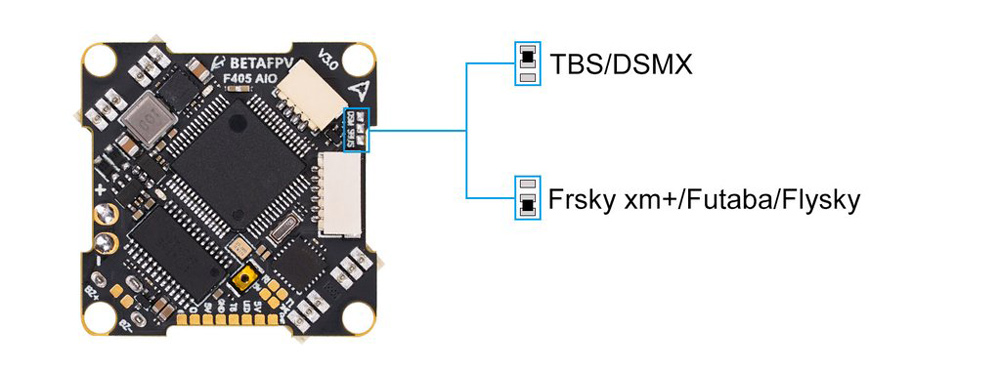

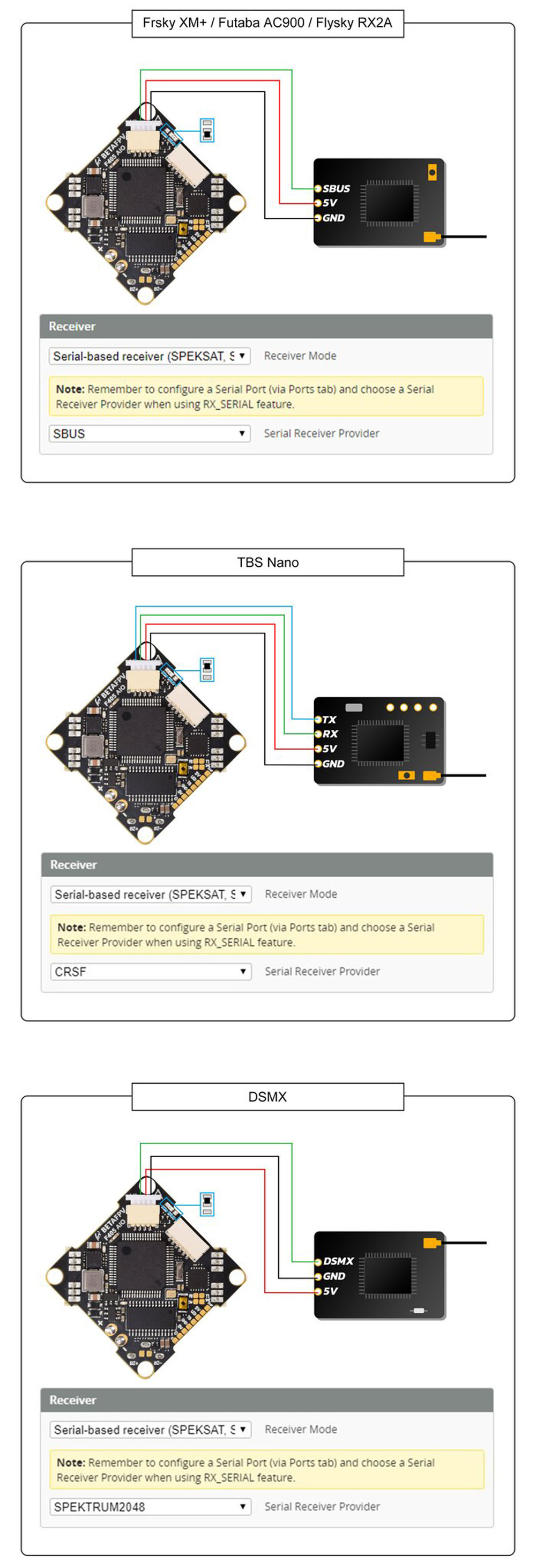

The new AIO board has the Plug & Play Port for the external Rx, and there will be a 4-Pin connector for Rx in the package, pilots can enjoy less soldering work, easy for installation. In addition, when you connect the different external Rx, the pads near the pin need to be soldered as the following diagram.

Includes

  • 1 x F405 20A AIO FC V3 or F405 12A AIO FC V3
  • 4 x M1.2x4mm screws
  • 4 x M1.4x5mm screws
  • 4 x Anti-vibration rubber dampers
  • 1 x 6-Pin Connector for Digital VTX
  • 1 x 4-Pin Connector for Rx
