BETAFPV F4 1S Brushless Flight Controller V2.2 - DSMX

More Views

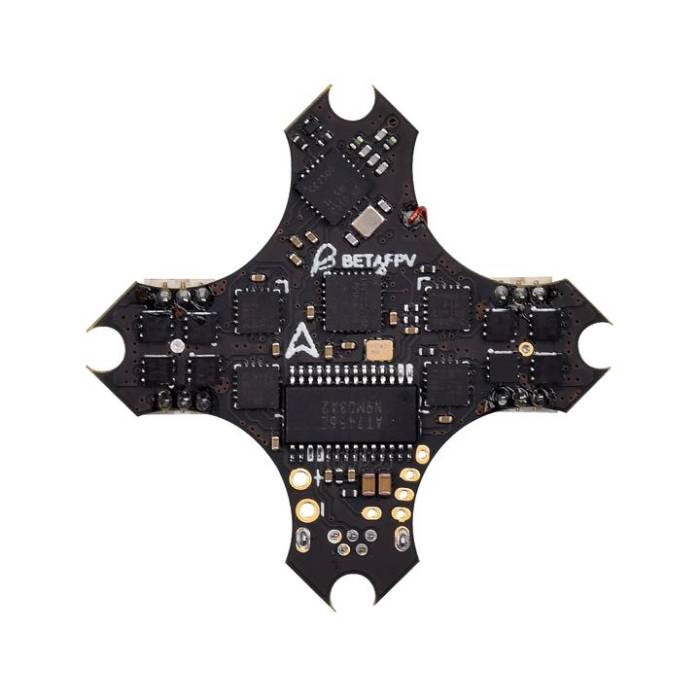

BETAFPV F4 1S Brushless Flight Controller V2.2 - DSMX
This is the lightest F4 1S brushless FC in the current market. With a slim and sleek design, 2.69g in weight and better performance on function for maximum weight savings, power, and responsiveness.
In Stock
$43.99
OR
Description

This is the lightest F4 1S brushless FC in the current market. Upgraded to V2.2, we have optimized the design of the power supply for a stable flying experience. With BT2.0 connector, slim and sleek design, 2.69g in weight, and better performance on function for maximum weight savings, power, and responsiveness.

Equipped with the BT2.0 connector, all 1S brushless drones will gain stronger powerful, and perfect performance. Specially made for 1S brushless whoop with F411 chip. A great choice for building Beta65 Pro and Beta75 Pro. Ultra-compact with 2.69g weight (Not power cable included), this FC is ready and waiting to take residence within your 1S micro FPV aircraft of choice, which could save much weight for a faster fly experience.

Specifications of FC

  • CPU: STM32F411CEU6 ( 100MHZ )
  • Six-Axis: MPU-6000 triaxial accelerometer / triaxial gyroscope (SPI connection)
  • Size: 29mm x 29mm, fully compatible with the whoop frame in the current market, Beta65 Pro frame, Beta75 Pro frame, BWhoop B06 frame, and mounting pattern
  • Firmware version: Betaflight MATEKF411RX (MK41R)
  • Compatible with Z02, A01, M01 VTX
  • OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
  • Power Cable: 55mm, with BT2.0 connector
  • Weight: 2.69g

Specifications of ESC

  • Power supply: 1S
  • Current: 5A continuous and peak 6A (3 seconds)
  • Support BLHeliSuite programmable
  • Factory firmware: O_L_5_REV16_6.HEX
  • Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM

Recommended Parts

  • Battery: BT2.0 300mAh 1S Battery
  • Frame: Beta65 Pro frame / Beta75 Pro frame
  • Props: 31mm 4-Blades props (for Beta65 Pro frame) / 40mm 4-blades props (for Beta75 Pro frame)
  • Motors: 0603 motors / 0703 motors / 0802 motors

Diagram

Includes

  • 1 x F4 1S Brushless Flight Controller
  • 4 x M1.2x4mm screws
  • 4 x M1.4x5mm screws
  • 4 x Anti-vibration rubber dampers
Additional Information
SKU 11497
Manufacturer BETAFPV
UPC (GTIN) 032733835604
