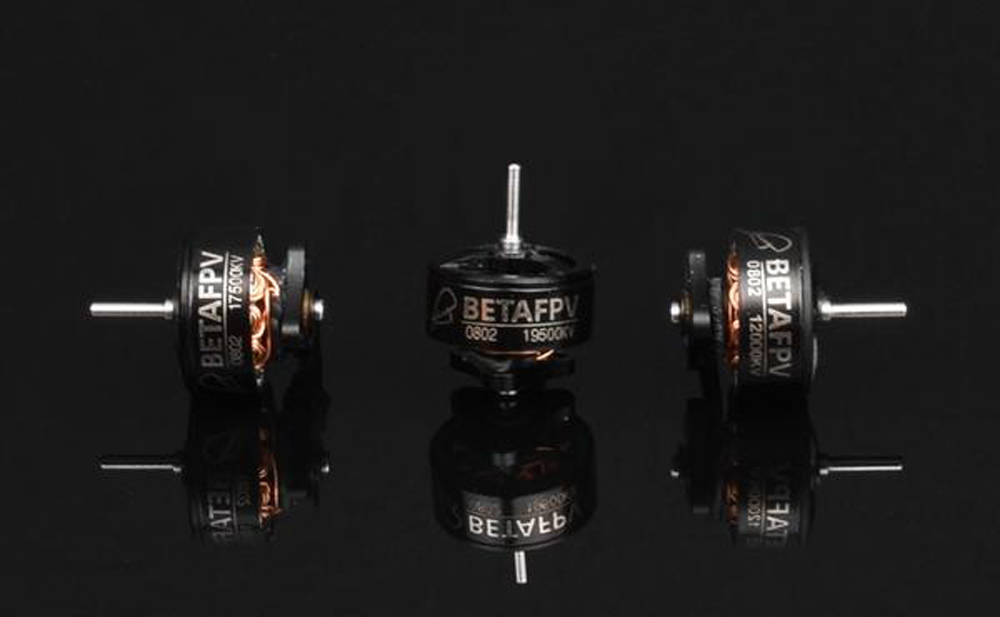

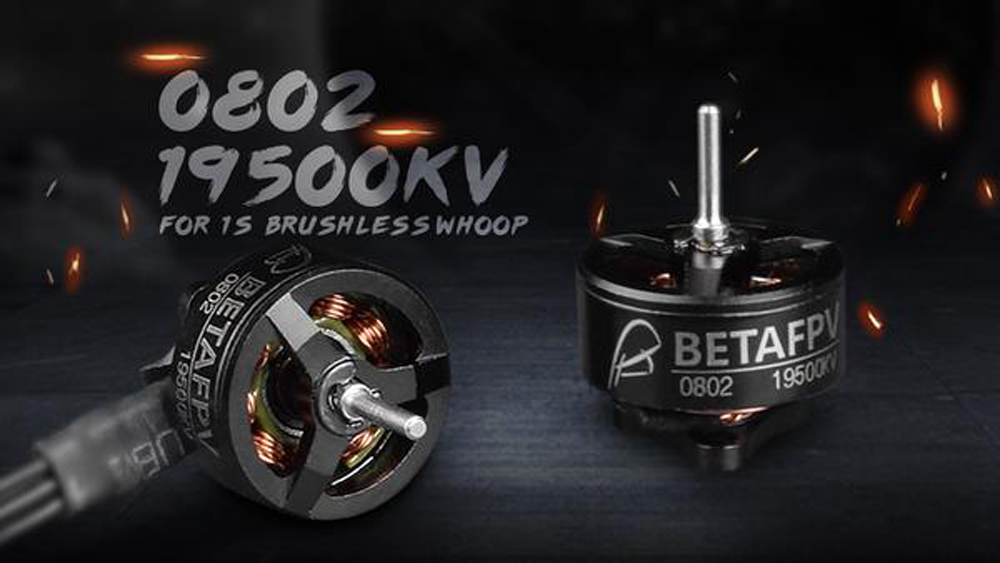

BETAFPV 0802 Brushless Motors have awesome power and thrust, perfectly designed and dynamically balanced. These 19500kv motors are great for 1S brushless whoop drones!
It includes 1.0mm header pins connector, so no soldering is needed. Just plug and play!
0802 Motors Recommend Battery Voltage 19500KV 1S 3.7V 17500KV 1S 3.7V 12000KV 2S 7.4V
Note: DO NOT recommend the 17500KV / 19500KV 0802 motors for 2S power. If you try this combo, the motors will overheat and burn (maybe the ESC). As a result, it will cause permanent damage to the motor or ESC.
- 0802 19500KV/17500KV motors are suitable for the 1S brushless drone - Beta65 Pro and Beta75 Pro.
- 0802 12000KV motors are for the 2S brushless drone, like Beta65 Pro 2 and Beta75 Pro 2. The representation for power, experience the fast and powerful outdoor flight.
- Perfect for indoor high-speed flying, the power of 19500KV motors are improved with the flight time of 3mins.

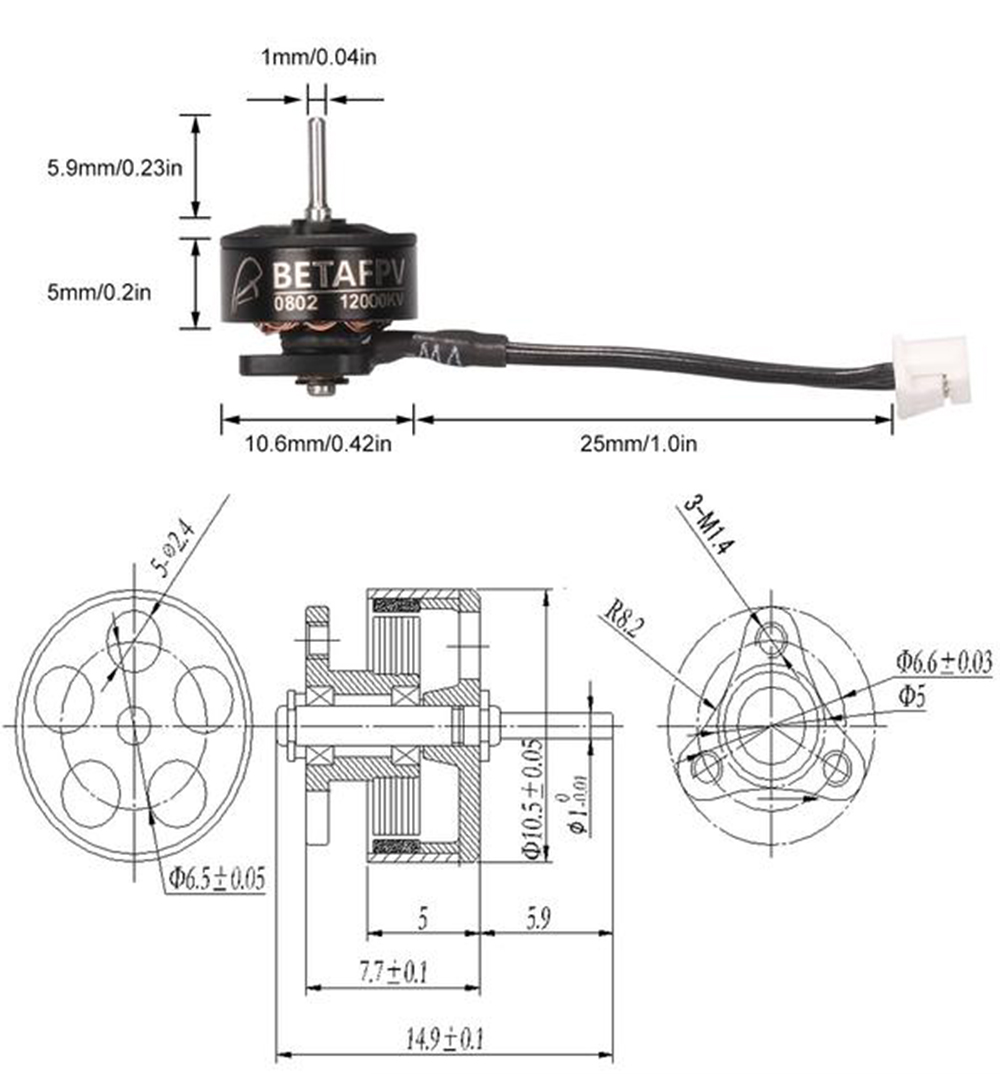

- Shaft diameter is 1.0mm, come with Micro JST-1.25 3-pin connector, convenience for installation.
- Compatible with 1S and 2S lipo battery, focusing on power, efficiency, and durability.

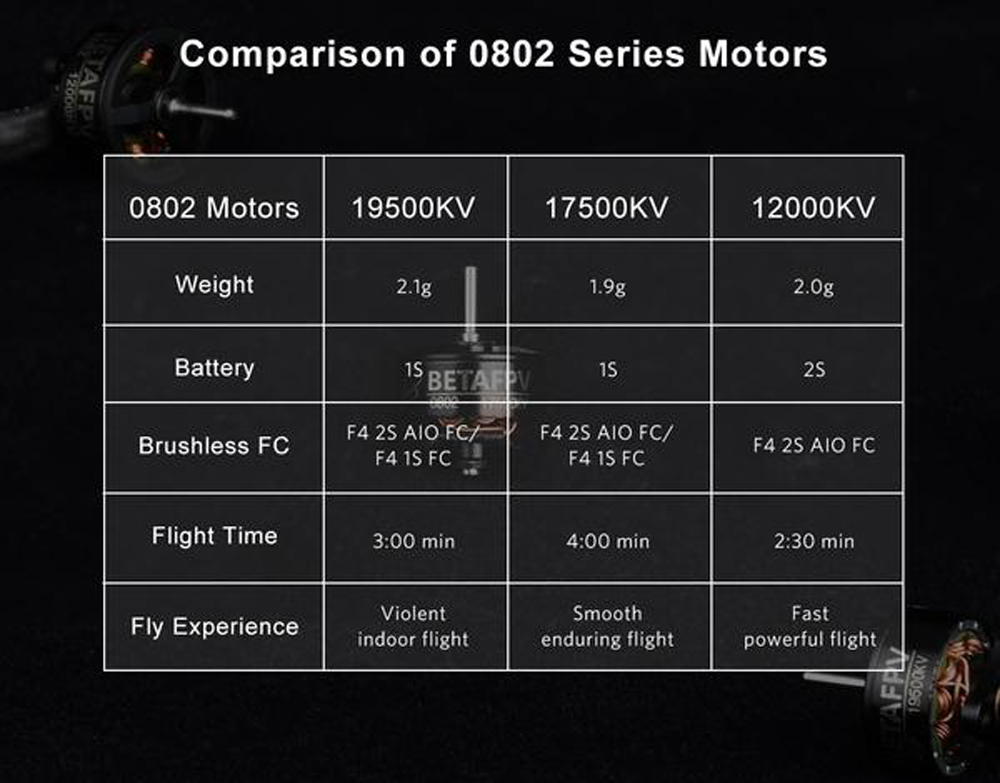

Here is a specification comparison of the 19500KV, 17500KV, and 12000KV motors:
- Flying time is the time from OSD voltage value 4.3V->2.8V.
- All tested with 4-blades props, 30mm props or 40mm props.
- All flight times are tested on full charged 300mAh batteries.
- 19500 KV and 17500 KV motors are tested on Beta65 Pro 1S while12000KV motors are tested on Beta 65 Pro 2.
0802 17500KV /19500KV Motor:
- Propellers: 31mm 4-blade props / 40mm 4-blade props (1.0 mm shaft hole)
- Frame: Beta65 Pro frame / Beta75 pro frame
- FC: F4 2S AIO Brushless FC / F4 1S Brushless FC

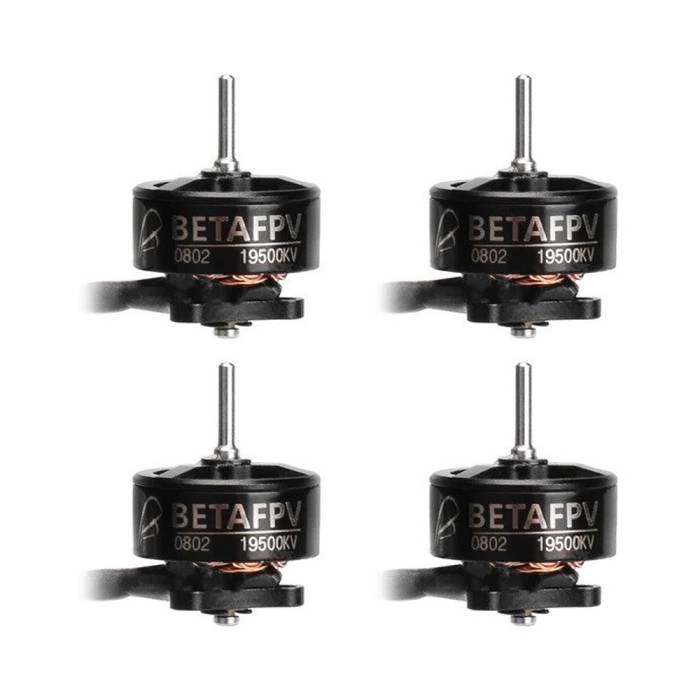

- 4 x BETAFPV 0802 19500kv Brushless Motors
- 1 x Pack of M1.6x4 screws
- Additional Information
SKU 10674 Manufacturer BETAFPV UPC (GTIN) 032733830685 Popo Compatible No
