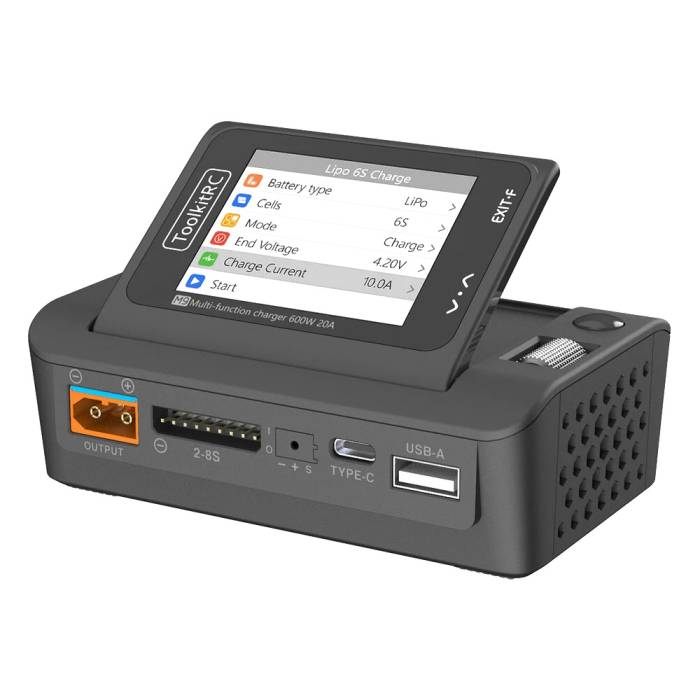

The acclaimed ToolkitRC M9 is a multi-function balance charger with all-in-one features. This device features 600 Watts of Power, Dual USB Fast Charging with maximum 65W USB-C/USB-A Output, an IPS Wide-Angle Color Display. This charger has a signal tester, battery meter, and wattage meter for all of your measuring needs! The integrated voice system grants an interactive experience.

VIDEO: ToolkitRC M9 Multifunction Charger: Why it's my new favorite RC 'multi-tool'

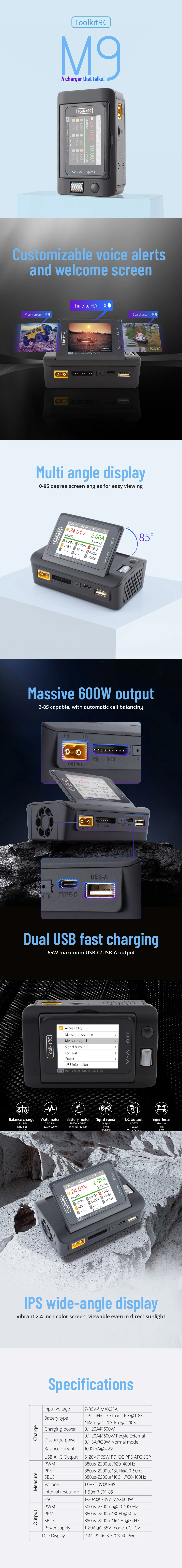

Features

• Customizable Voice Alerts and Welcome Screen
• DC Output - 600W 2-8S Capable
• 2.4" Multi-Angle Color Display
• Dual USB Fast Charging
• Balance Charger
• Signal Source
• Battery Meter
• Signal Tester
• Watt Meter

Specifications

• USB A+C Output: 5-20V@65W PD QC PPS AFC SCP
• Power supply: 1.0-20A@1-35V mode:CC+CV
• Measurer:
• SBUS: 880-2200us*16CH @20-100Hz
• PPM: 880-2200us*8CH @20-50Hz
• PWM: 880-2200us @20-400Hz
• Battery Type: LiPo LiHV LiFe Lion LTO@1-8S
• Output:
• SBUS: 880-2200us*16CH @74Hz
• PWM: 500-2500us @20-1000Hz
• PPM: 880-2200us*8CH @50Hz
• Discharging Power:
• 0.1-20A@600W Recycle External
• 0.1-3A@20W Normal Mode
• Charging Power: 0.1-20A@600W
• LCD: 2.4*IPS RGB 320*240 Pixel
• Balance Current: [email protected]
• ESC: 1-20A@1-35V MAX 600W
• NiMh @1-20S Pb @1-10S
• Voltage: 1.0V-5.0V@1-6S
• Input: 7-35V@MAX35A

Manuals

• ToolKitRC M9

Downloads

• Firmware
• Sounds

Includes

• 1x ToolkitRC M4 Pocket 80W 5A 1-4S Compact DC Charger
