ToolkitRC M8P 1-8S 600W 20A DC Charger - XT60

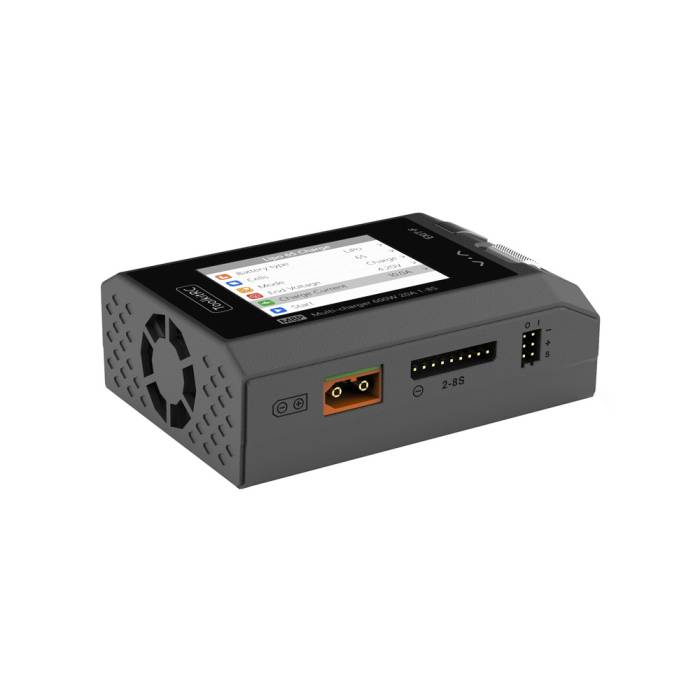

The ToolkitRC M8P Charger is a reliable and compact charging solution crafted for FPV drone and cinematography applications.

About this product

The ToolkitRC M8P Charger is a reliable and compact charging solution crafted for FPV drone and cinematography applications. Equipped with a vibrant touchscreen interface, it provides intuitive control over charging parameters, supporting a range of XT60 battery types for versatility. With its portable design, the M8P ensures convenient charging on the field, making it an essential tool for drone enthusiasts and cinematographers alike.

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

Features

  • 600W DC Charger
  • 1-8S Compatibility
  • XT60 Connector

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

Specifications

  • Product size 100x71x34mm
  • Product weight 200g

CHARGING

  • Input 7-35V: @MAX25A
  • Battery Type: LiPo LiHV LiFe Lion LTO @ 1-8S NiMh @1-20S Pb @1-10S
  • Charging Power: 0.1-20A@600W
  • Discharging Power: 0.1-20A @ 600W Recycle External
  • Discharging Power: 0.1-3A @ 20W Normal mode
  • Balance current: [email protected]
  • USB: 5.0V @ 2.1A upgrade

MEASURING

  • PWM: 880us-2200us @20-400Hz
  • PPM: 880us-2200us*8Ch @20-50hz
  • SBUS: 880us-2200us*16ch @20-100Hz
  • Voltage: 1.0V-5.0V @1-8S
  • IR: 1-99mR @1-8S
  • ESC: 1-20A@1-35V MAX600W

OUTPUT

  • PWM: 500us-2500us @20-1000Hz
  • PPM: 880us-2200us*8ch @50hz
  • SBUS: 880us-2200us*16ch @74Hz
  • Power: 1-20A @ 1-35V Mode: CC+CV
  • LCD Display: 2.4 IPS RGB 320x240 pixel

IMPORTANT NOTES

  • Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."

Recommended (Not Included)

Includes

  • 1x ToolkitRC M8P 1-8S 600W 20A DC Charger - XT60

Featured Videos

ADD VIDEO TITLE HERE IN BOLD CAPS

ADD VIDEO TITLE HERE IN BOLD CAPS



More Information

SKU 21467
UPC (GTIN) 6972969830308
Manufacturer ToolkitRC
NDAA Compliant No
Expected Date 2024-06-07
Item Returns This item can be returned
