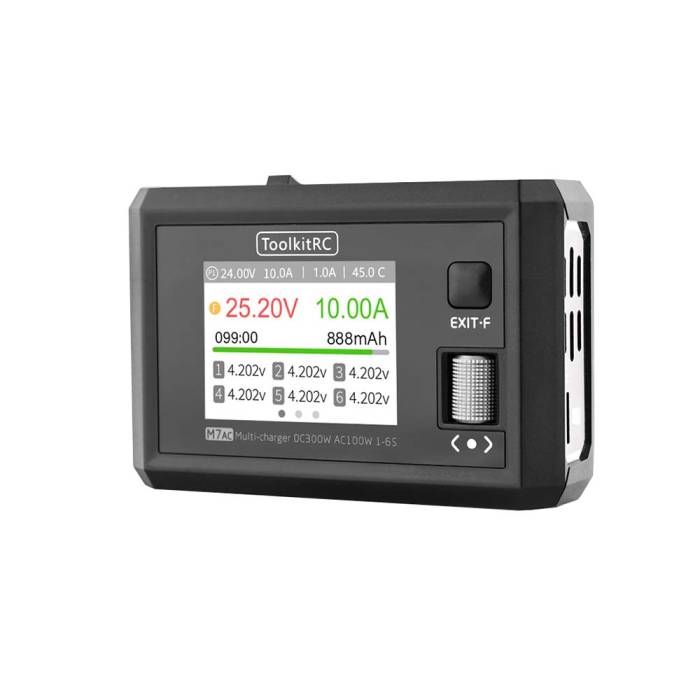

ToolkitRC M7AC 100W AC/300W DC 15A 2-6S Multi-Function AC Smart Balance Charger

ToolkitRC M7AC 100W AC/300W DC 15A 2-6S Multi-Function AC Smart Balance Charger

In Stock

Only left for same day shipping. Order now!
Earn
ToolkitRC M7AC 100W AC/300W DC 15A 2-6S Multi-Function AC Smart Balance Charger
The ToolkitRC M7 Multi-Function AC Smart Charger features Dual AC/DC Input, XT30/XT60 Output, and supports 2-6S.

About this product

The ToolkitRC M7AC Multi-Function AC Smart Charger features Dual AC/DC Input, XT30/XT60 Output, and supports 2-6S. The Toolkit M7 isn't just a charger, but a versatile tool kit too. It can be used as a power supply, multimeter, signal source, drone charger, and signal tester!

Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)

VIDEO: ToolkitRC M7ac Multi Function Charger Review ⚡

Features

  • XT30/XT60 Output
  • Dual AC/DC Input
  • Supports 2-6S
  • Drone charger
  • Power supply
  • Signal source
  • Signal tester
  • Multimeter
ToolkitRC M7 Multi-Function AC Smart Charger Infographic

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

USE BULLETED FEATURE HERE IN BOLD CAPS.

Add additional feature descriptions here to describe the above.

Specifications

CHARGER

  • Discharge Power: 300W @MAX 15A Recycle mode / 15W@3A Normal mode
  • Input Voltage: AC 100-240V MAX 100W 1.5A / DC 7.0-28.0V @MAX 20A
  • Battery Type: Lipo LiHV LiFe Lion LTO@1-6S / NiMh @1-16S Pb @1-10S
  • Charging Power: 300W @MAX 15A
  • Balance Current: 800mA @ 4.2V
  • USBA: [email protected] or Upgrade

GENERAL

  • LCD: IPS 2.4 inch LCD 320*240 resolution
  • Packing Size: 144x125x43mm
  • Product Size: 112x73x38mm
  • Packaging Weight: 380g
  • TF Card: 128MB-16GB
  • Product Weight: 245g

MEASURE

  • Internal Resistance: 0.1 mR-99mR @ 1-6S
  • SBUS: 880-2200us * 16CH @ 20-100Hz
  • PPM: 880-2200us * 8CH @ 20-50Hz
  • PWM: 880-2200us @ 20-400Hz
  • Voltage: 1.0-5.0V @ 1-6S
  • ESC: 300W @ 15A

OUTPUT

  • Power Supply: 1.0-28.0V @0.5-15A mode: CC CV
  • SBUS: 880-2200us * 16CH @ 20-100Hz
  • PPM: 880-2200us * 8CH @ 20-50Hz
  • PWM: 500-2500us @ 20-1000Hz
  • Overcurrent Response: <5ms



IMPORTANT NOTES

  • This is the US version.

Recommended (Not Included)

Includes

  • 1x ToolkitRC M7 100W AC/300W DC 15A 2-6S Multi-Function AC Smart Balance Charger

Featured Videos

ADD VIDEO TITLE HERE IN BOLD CAPS

ADD VIDEO TITLE HERE IN BOLD CAPS



More Information

SKU 19480
UPC (GTIN) 6972969830186
Manufacturer ToolkitRC
NDAA Compliant No
Item Returns This item can be returned
