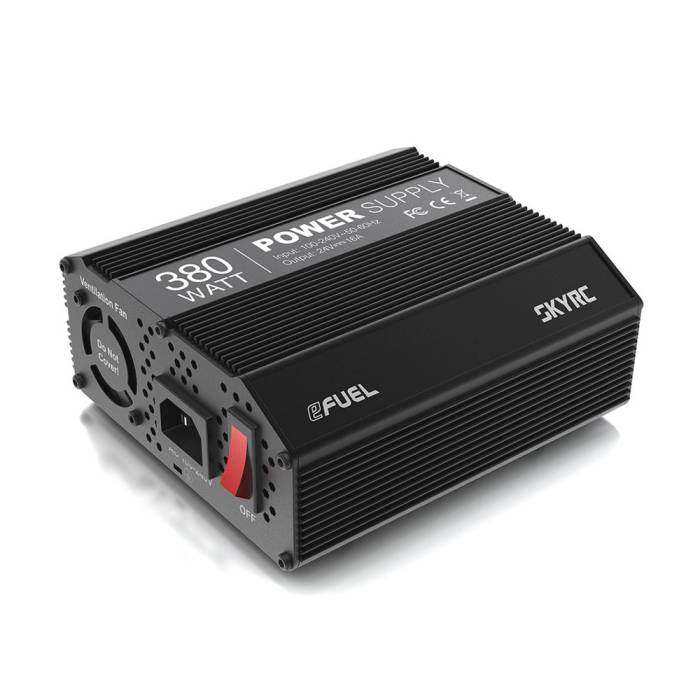

The SkyRC 380W power supply is designed to use regular household AC power source to power the latest in high power lipo chargers such as the B6 nano. The eFUEL converts standard household power 100-240V AC to 24V DC power and can supply up to 16 amperes of continuous power.

Features

• Active PFC: smaller AC input current less interference, and Conform to CE Regulations
• DC power outputs, up to 16 amperes
• Output voltage 24V
• AC 100-240V worldwide operation: need not any alternative switcher, worldwide safe operation.
• Smart cooling fans turned on upon the temperature automatically
• Over current, over voltage, overload and over temperature protection
• Short-circuit protection on output, safer and more reliable

Specifications

• Voltage: 100-240V AC
• Input AC Frequency: 50-60Hz
• Output Voltage: 24V DC±0.5V
• Output Current: 16A
• Current Overload Protection: 17A ±1A
• Output Voltage Ripple: <300mV
• Power Efficiency: 88%
• Power Factor: >0.98
• Over Temperature Protection: <80℃
• Cooling Method: Cooling Fan
• Operating Temperature: 0-40℃
• Operating Humidity: 0-90%
• Weight: 2.5lbs

Includes

• 1x SkyRC 380W Power Supply
• 1x US Power Plug
• 1x XT60 Pigtail
