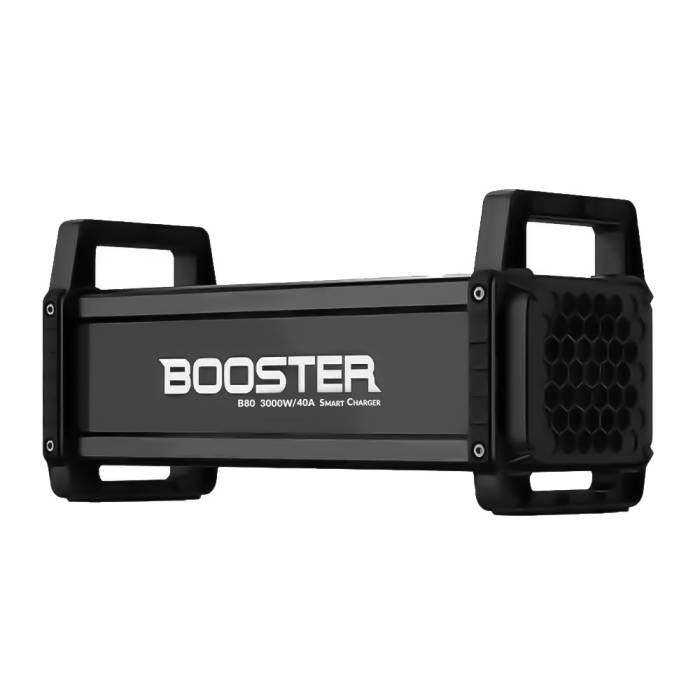

iSDT Booster B80 6-18S 3000W Professional Smart Charger

The iSDT Booster B80 Professional Smart Charger is a powerhouse of a charger, bringing together a robust 3000W of maximum output power, 80V high voltage, and 40A high current in a single channel. This device is meticulously designed to cater to large batteries, ensuring strong and reliable performance.

• Combines 3000W power, 80V voltage, and 40A current in a single channel for outstanding performance.
• Equipped with a 22S balance port, supporting 6 to 22S LiFe and up to 18S LiPo batteries.
• Wireless connectivity enables easy parameter setting and firmware upgrades via a mobile app.
• Durable design with an aluminum alloy body and built-in fan for effective heat dissipation.

• Model: B80
• Input voltage range: AC 100-240V
• Output voltage range: DC 20-80V
• Maximum input current: AC 16A
• Maximum charging power: 3000W (@220V AC), 1500W (@110V AC), 1400W (@100V AC)
• Maximum discharge power: 200W
• Supported battery types and cell count: LiFe (8-22S), LiPo (6-18S), LiHv (6-18S), ULiHv (6-18S)
• Charging current: 1.0-40.0A (Max)
• Discharging current: 0.5-5.0A (Max)
• Balance current: 2A/Cell Max
• Working temperature: 0-40℃
• Storage temperature: -20-60℃
• Dimension: 356 × 136.8 × 164.1 mm
• Weight: About 3973g

• User Manual

• 1x iSDT Booster B80 6-18S 3000W Professional Smart Charger
