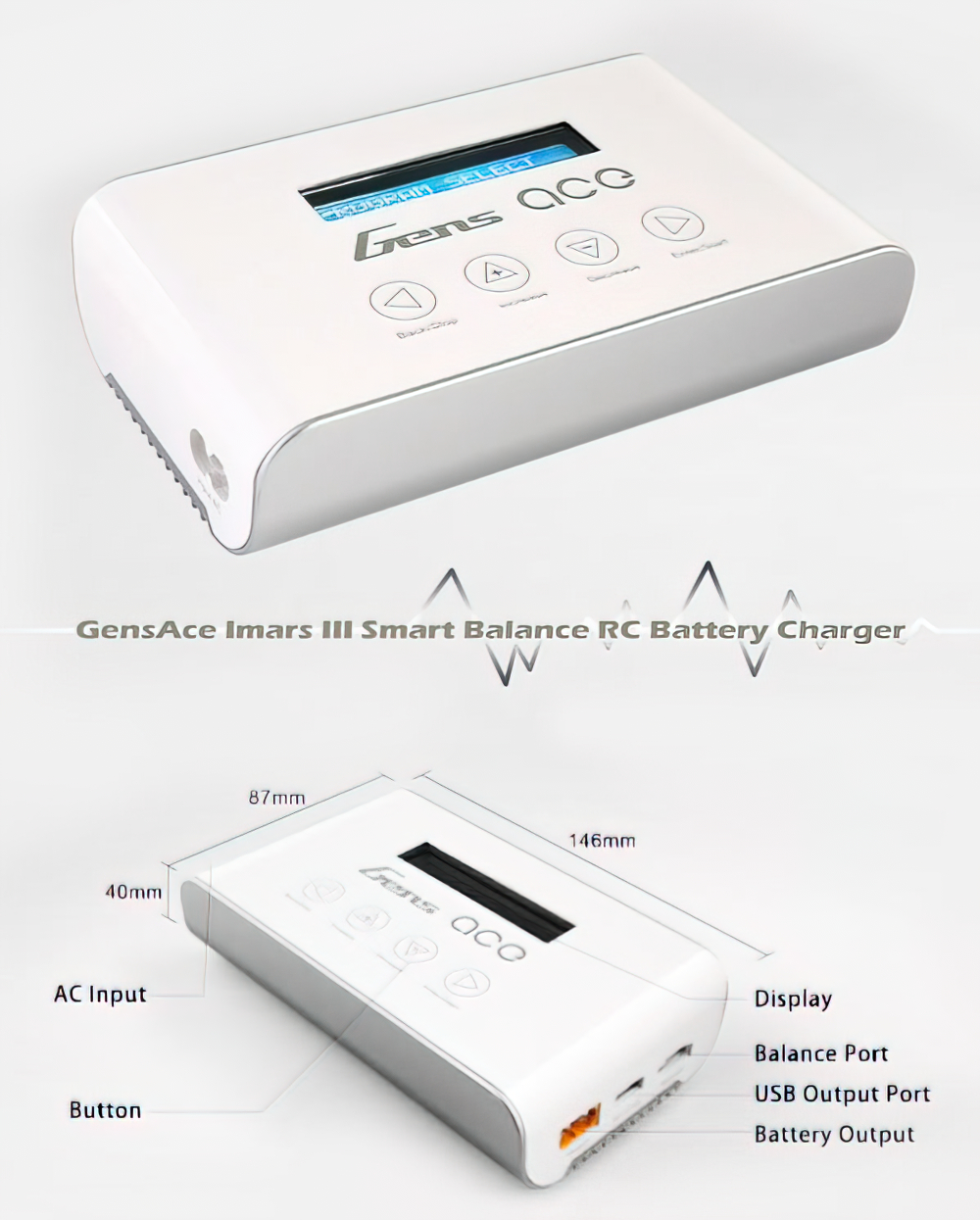

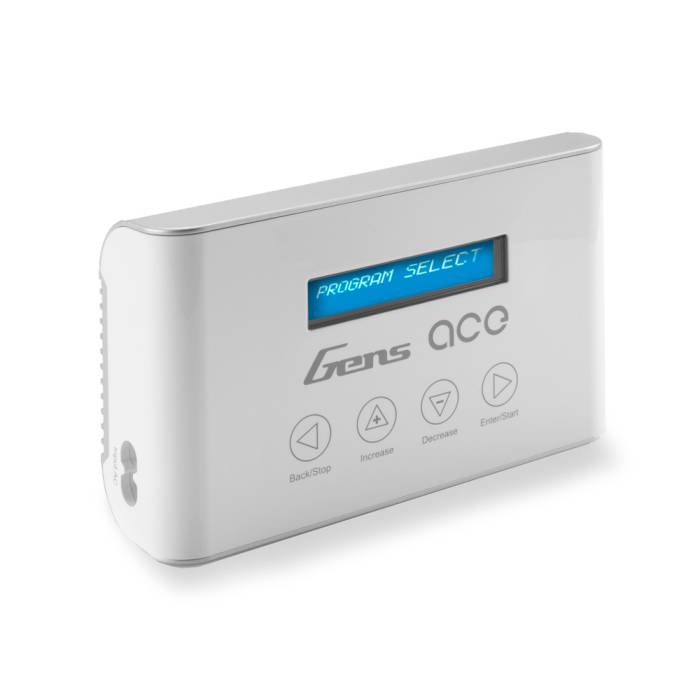

Gens Ace Imars III 100W 5A AC Smart Balance Battery Charger

The GensAce Imars III Smart Balance Charger is a 100W charger capable of 5 amp charge rates. This device has worldwide 100V-240V voltage versatility and works great for your FPV & Car Batteries.

VIDEO: Gens ace ImarsIII Balance 100W AC Charger Review Video (US Version)

Features

• Capable of 5 amp charge rates, worldwide 100V-240V voltage versatility, with 100 Watts of power
• Charges up to 18 NiMH cells or 6S Lithium batteries (including LiPo/LiFe/LiHV)
• Single Channel AC Balance Charger
• Small & Lightweight Portable Design

HOW TO USE

Connect the charger to the power supply. The Imars III LOGO will display for about 2 seconds before entering Charger mode. The top-level menu is divided into 3 functions. By pressing the +/- buttons, the user may select between charge mode, battery check mode, and system setting mode. Lightweight design allows you to quickly charge the battery anywhere, anytime.

Specifications

• Supported battery chemistries: LiPo/LiFe/LiHv (1-6S)、NiMH charge (3-18S)、NiMH discharge (1-10S)
• Maximum charging voltage: 26.4V
• Display Type: Backlight 2x16 LCD
• Maximum charging power: 100W
• Dimensions: 146x87x40 mm
• Discharge current: 0.1~1.5A
• Product Net Weight: 0.4kg
• Net Weight(±20g): 400
• UPC: 889551009041
• USB output: 5V/2.4A
• Cell Balancing: 2~6s
• Preorder config: No
• Length(±5mm): 146
• Height(±2mm): 40
• Width(±2mm): 87
• Sorting: Charger
• Over 300wh: No
• Over_power: No
• Voltage(V): /

Includes

• 1x Gens Ace Imars III 100W 5A AC Smart Balance Battery Charger
• 1x Balance Adapter Board
• 1x XT60-T plug adapter
• 1x 7 Pin Balance Lead
• 1x XT60-EC3 Adapter
• 1x AC Input Cable
• 1x Manual
