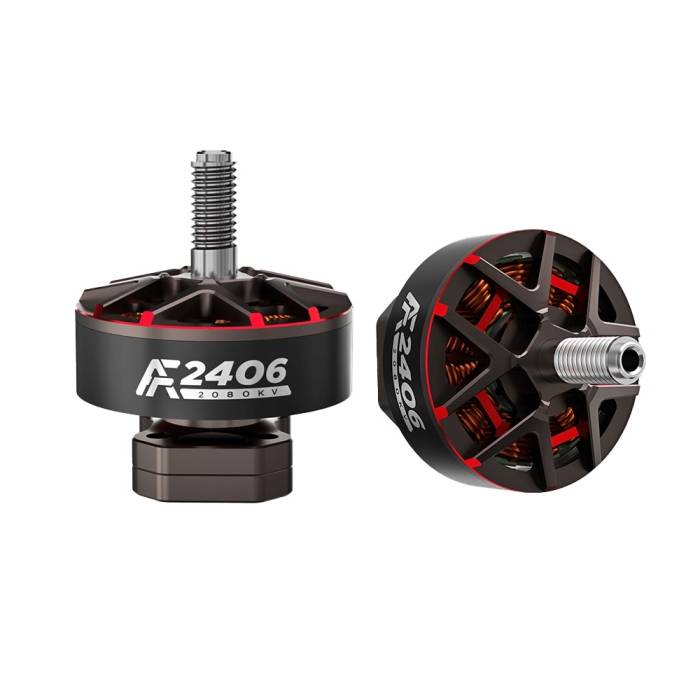

Axisflying AF2406-X Modular Motor - 1860KV/2080KV

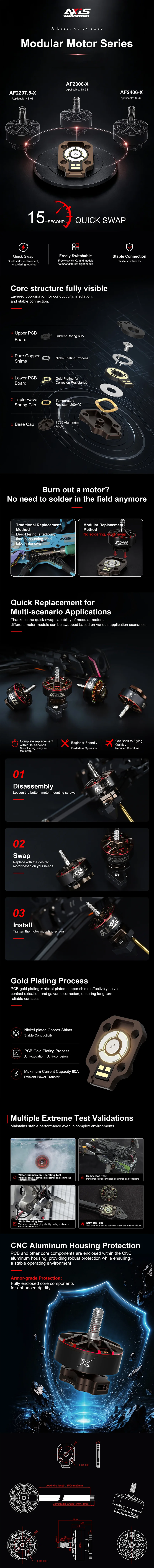

Axisflying breaks the limitations of traditional FPV motors with the AF2406-X Modular Motor. Featuring innovative modular quick-swap technology, this motor achieves 15-second tool-free motor replacement. It delivers brutal freestyle power, extreme high-temperature durability, and full-scenario compatibility, perfectly tailored for 5-inch freestyle and cinematic FPV drone setups.

• 15 Seconds Fast Replacement & Solder-Free Operation
• Universal & Compatible Mounting Structure
• Dual PCB Gold-Plating Technology
• 200°C+ High-Temperature Resistance
• Integrated 7075 Aluminum Housing

1860KV

• Stator Structure: 12N14P
• Internal Resistance: 78mΩ
• Shaft Diameter: 5mm
• Rated Voltage: 4-6S LiPo
• Motor Weight (wire included): 35.10g
• Max Current: 40.95A
• Max Power: 960.70W
• Max Thrust: 1826g
• Wire Specification: 20AWG 150mm Silicone Wire
• Dimension: 29.5*32.55mm

2080KV

• Stator Structure: 12N14P
• Internal Resistance: 66mΩ
• Shaft Diameter: 5mm
• Rated Voltage: 4-6S LiPo
• Motor Weight (wire included): 35.10g
• Max Current: 47.44A
• Max Power: 1109.10W
• Max Thrust: 1929g
• Wire Specification: 20AWG 150mm Silicone Wire
• Dimension: 29.5*32.55mm

• 1x Axisflying AF2406-X Modular Motor (Choose 1860KV or 2080KV)
• 1x Motor Base Cap
• 5x Mounting Screws (M3x11)
• 1x Mounting Screws (M3x6)
• 1x Sticker Pack
