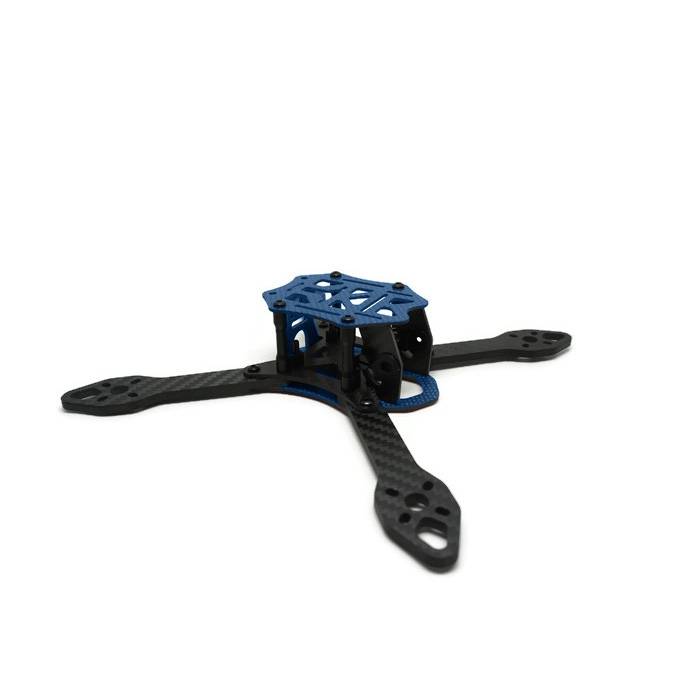

Armattan SCX200 (Cobalt Blue)
The SCX-200 V2 is a dedicated racing frame with many sleek and intuitive design features that improve on the original version. * PDB not included.

About this product

The SCX-200 V2 is a dedicated racing frame with many sleek and intuitive design features that improve on the original version. Notable is the internal, flat VTX mounting configuration. This placement works in conjunction with an anti-rotation plate to create a secure and tight locking, sandwich-type design that protects the SMA connection joint. Another benefit of this approach is that the antenna will not twist or rotate into your props or anything else. The video below shows the solid construction of this approach and also highlights some other nice features like the incorporation of 30mm standoffs and a top plate that allows for the configuration of several popular VTX types.

The top plate is designed so dip switches and LED’s are visible and can be manipulated while the VTX is still in the frame. This feature will certainly be welcomed by those racing in groups. Featuring a max camera tilt of 55 degrees, even the fastest pilots should be accommodated. There are also motor wire protection ports built into the frame for those who prefer to mount their ESC’s on the bottom of the frame arms.

Includes

  • 4MM Carbon Fiber Arms x4
  • 1.5MM Carbon Fiber Top Plate
  • 2MM Bottom Center Plate
  • 2MM VTX Plate
  • 2MM Anti-Rotation Plate
  • 2MM Cam Braces x2
  • Rubber Dimes x2
  • M3 Aluminum Thumbscrews x2
  • 5MM M2 Bolts x2
  • M2 Washers x2
  • Sunknuts x6
  • 7MM M3 Bolts x2
  • 10MM M3 Metal Bolts [PDB] x4
  • * PDB NOT INCLUDED
  • 12MM M3 Metal Bolts [Bottom Center Plate] x4
  • 12MM M3 Nylon Bolts x4
  • 6MM M3 M/F Nylon Standoffs x4
  • M3 Nylon Nuts
  • 30MM M3 Profiled Standoffs [Top Center Plate] x4
  • 7MM M3 Metal Bolts [motors] x16
  • 7MM M3 Metal Bolts [Top Plate] x4
  • Battery Strap

Videos

More Information

SKU 6794
UPC (GTIN) 704817765991
Manufacturer Armattan
NDAA Compliant No
