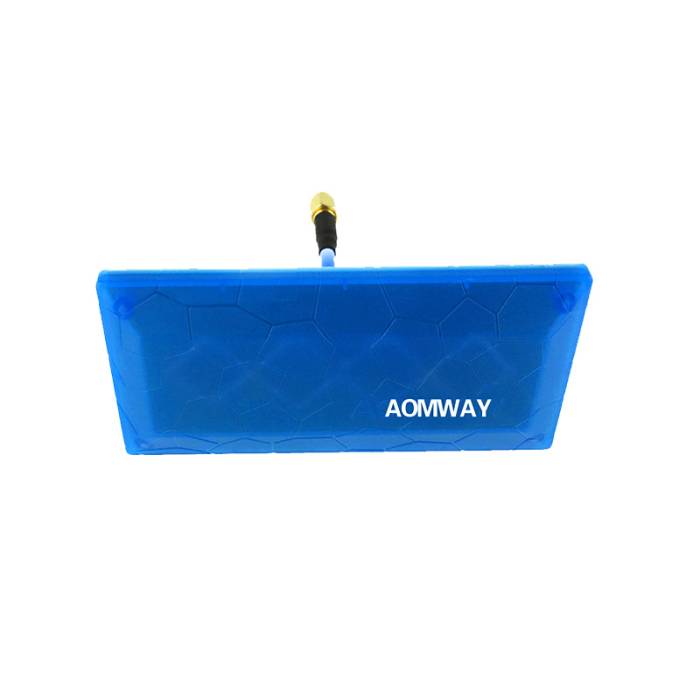

Aomway Biquad SMA 5.8GHz Dual Diamond Directional Antenna
The 5.8Ghz Dual Diamond Directional Antenna is vertically polarized. As a high gain antenna, it is designed for use on receiver and effective angle is 40 degree; on the transmitter side, you need to use an omni antenna.

About this product

The 5.8Ghz Dual Diamond Directional Antenna is vertically polarized. As a high gain antenna, it is designed for use on receiver and effective angle is 40 degree; on the transmitter side, you need to use an omni antenna. While using a 200mw transmitter with this solution, transmission range easily reaches up to 1km above. Silver jacketed wire and 24k gold plated connector are adopted to ensure high performance.

Specifications

  • Directivity: Directional
  • Frequency Range: 5.8GHz
  • Standing Wave Ratio: ≤1.5
  • Gain: 13dBi
  • Impedance: 50 ohm
  • Connector: SMA / RP-SMA (optional)
  • Polarization: Vertical
  • Angle: H 40;V40
  • Material: Copper & high-frequency PCB
  • Color: Blue
  • Package Content: 1 x Dual diamond antenna
  • Weight: 25g
  • Dimensions: 103*47*10mm
  • Extension Cable: 75mm

Includes

  • 1x Biquad SMA 5.8GHz Dual Diamond Directional Antenna

More Information

SKU 7182
Manufacturer Aomway
Antenna Frequency 5.8GHz
Antenna Connector / Length SMA
