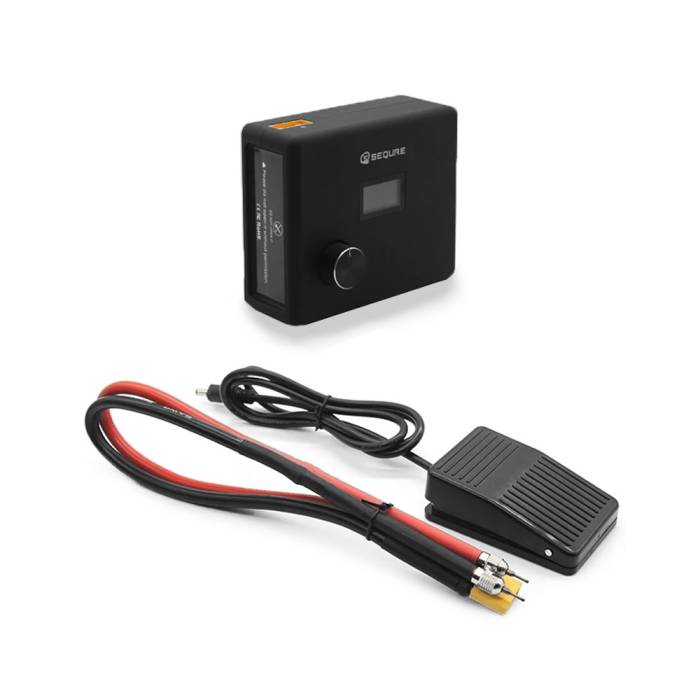

SEQURE SQ-SW1 Spot Welder w/ OLED Screen + Foot Pedal for 18650 Pack Welding
SEQURE SQ-SW1 Spot Welder w/ OLED Screen + Foot Pedal for 18650 Pack Welding
$219.99
In Stock
Only left for same day shipping. Order now!
SEQURE SQ-SW1 Spot Welder w/ OLED Screen + Foot Pedal for 18650 Pack Welding
Lithium batteries are widely used in the FPV industry! The SEQURE SQ-SW1 enables you to easily and efficiently spot weld your own battery packs for flight use.
About this product
Lithium batteries are widely used in the FPV industry! The SEQURE SQ-SW1 enables you to easily and efficiently spot weld your own battery packs for flight use. Traditional welding machines lack flexibility. The SQ-SW1 is battery-powered with an OLED display to give you real-time parameters. With this new spot welding technology, you can intuitively switch between automatic or manual working modes to meet different needs.
VIDEO: Sequre Point Welder use in 18650 Battery Pack DIY Test
Features
- Works for welding on multiple types of batteries including cylindrical lithium, nickel-hydrogen, and cadmium nickel batteries.
- Flexible and efficient for spot welding of 18650 Battery Packs
- OLED display for clear indication of parameters in real-time
- Automatic or Manual working modes
- Multi-directional screen display
- Output voltage of 10-14V
Specifications
- Pulse Time: 1-100ms(default),1-500ms(setting)
- Voltage Warning: Low Voltage/High Voltage
- Work Model: Automatic/Manual
- Welding Thickness: 0.1-0.3mm
- Power Supply Interface: XT90
- Input Voltage: 10-14V
- Trigger Delay: 0.5-3s
- Short Pulse: 0-100%
- Screen Flip: 180°
Recommended (Not Included)
- Recommended Battery: Lithium battery (3S 5000mAh minimum 60C) Car battery (12V 400-800CCA
Includes
- 1× SEQURE SQ-SW1 Spot Welder w/ OLED Screen
- 2× Battery holder
- 1× Welding pen
- 1× Nickel stripe
- 1× Foot pedal
- 2× Solder pin
More Information
SKU | 16733 |
---|---|
UPC (GTIN) | 764613335361 |
Manufacturer | SEQURE |
NDAA Compliant | No |
Item Returns | This item can be returned |
