7" Lumenier Slim LCD FPV Monitor w/ 5.8GHz 32CH Diversity Rx, Battery

7" Lumenier Slim LCD FPV Monitor w/ 5.8GHz 32CH Diversity Rx, Battery

Out of Stock

Only left for same day shipping. Order now!

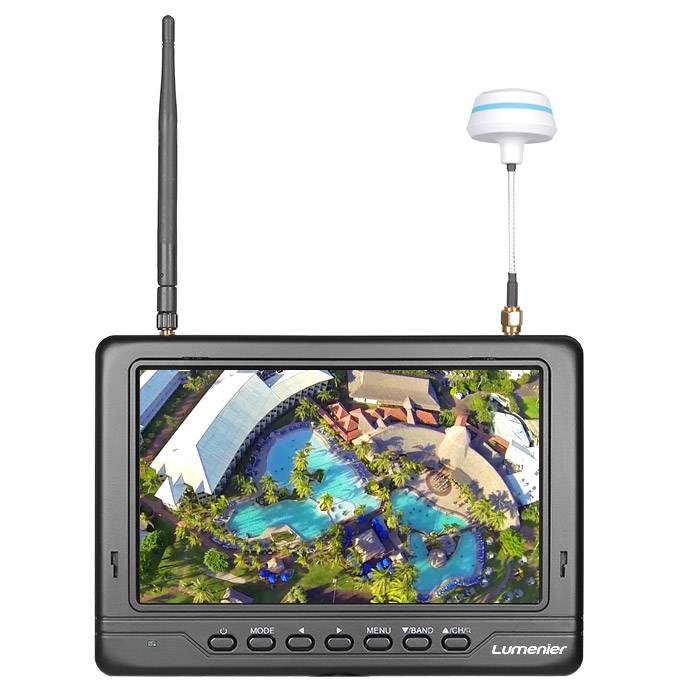

7" Lumenier Slim LCD FPV Monitor w/ 5.8GHz 32CH Diversity Rx, Battery
A 7" super bright and slim LCD screen with a 5.8GHz 32CH diversity receiver and built in rechargeable battery.This is an excellent choice for a FPV monitor.

About this product

This FPV monitor has a very slim 7" screen with a super bright LCD, and 5.8GHz 32CH diversity receiver with a built in rechargeable battery. This monitor is an excellent choice for your FPV monitor, or as a secondary backup screen for your friends to watch. The 500cd/m² is plenty bright for outdoor applications where you need a bright screen, and the included sun shade will help keep unwanted light off the screen, reducing glare. The integrated rechargeagble battery keeps your FPV grounstation compact and easy to use. The auto RF searching feature makes it easy to match your FPV transmitters frequency with the click of a button.

This monitor will not go to a blue or black screen when video signal is lost or static. Perfect for an FPV application where you don't want your screen to go blank when the video signal is weak.



Specifications

  • Image: 7" TFT LCD
  • Dual 32 channel 5.8GHz diversity receiver (SMA)
  • Access the Auto RF Search feature by holding the "CH" button for 2 seconds
  • Resolution: 1024x600
  • Built in rechargable battery (2200mAh 2s 7.4v LiPo)
  • Horizontal frequency range: 30-60KHz
  • Field frequency range: 60-75Hz
  • Display Ratio: 16:9
  • Brightness: 500cd/m²
  • Backlight: LED
  • Viewing Angle: 75°/75°(L/R) 70°/75°U/D
  • Contrast Ratio: 700:1
  • Response time: 10ms
  • Input Voltage: DC 8-18V (2s-4s compatible)
  • Speaker built in, 1W
  • Power Consumption: ≦10W
  • Input Singal:  RCA video and audio, Mini HDMI, RF
  • HDMI Mode 480i /480p /576i /576p,720p /1080i /1080p (50/60Hz)
  • NTSC/PAL Manually Selectable in Menu
  • Size: 190mm x 134mm x 18mm
  • Weight: 440g with battery
  • Mounting: Standard 1/4-20 tripod and VESA mounts

Includes

  • 7" Slim LCD Monitor with 5.8GHz 32CH diversity receiver.
  • Built in rechargable battery (2200mAh 2s 7.4v LiPo)
  • 2x 5.8GHz antennas (1 whip, 1 mushroom style)
  • Removable plastic pop-up Sun Shield
  • AC/DC wall charger
  • Manual

More Information

SKU 2568
UPC (GTIN) 736952004680
Manufacturer Lumenier
Item Returns This item can be returned
