5.8GHz 48CH FPV AV Receiver (RC832)

More Views

5.8GHz 48CH FPV AV Receiver (RC832)
5.8GHz 48CH FPV AV Receiver with SMA connector
Will Not Restock

Regular Price: $49.99

Special Price $29.99

Description

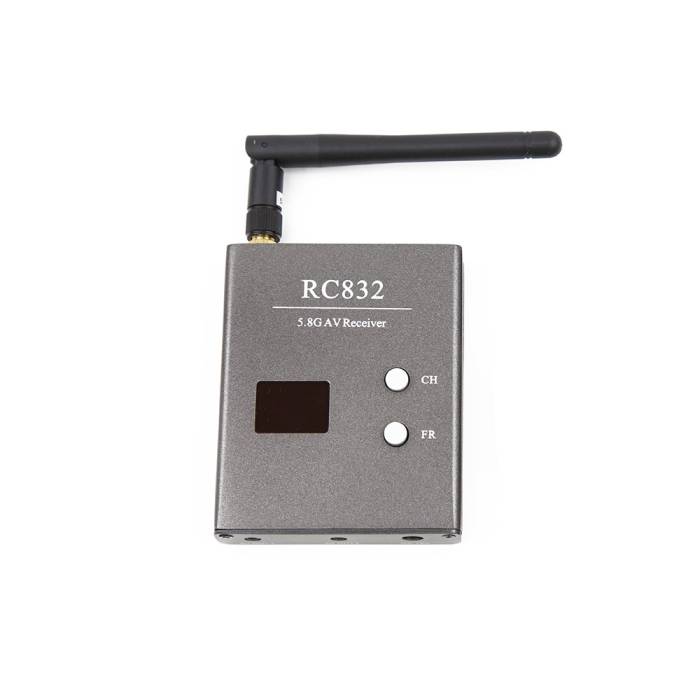

This is the new FPV 5.8G A/V Receiving System - RC832 - 48CH Edition SMA

The RC832 Receiver is nice and small in size for easy integration into your ground station, but big in quality and features. The receiver uses the same two button interface as the TS832 Transmitter making channel swapping a breeze. There are two independent AV outputs for both audio and video. So you can use a monitor and set of goggles or maybe a DVR to record your flight, for when your significant other asks where you were for the last 4 hours. It also has frequency memory, so when you power down it will save the last frequency channel you were using. Powering the receiver at the field is as easy as plugging in a 3 cell lipo into the included prewired cable with mini JST. It just doesn’t get any simpler than this.

Features

  • 48 channels: Cover A, B, E, F and R bands
  • Two switching buttons for the band and channel
  • Two digits display for  the band and channel
  • Power off memory for last channel and band
  • Dual Independent video and audio signal outputs

RX RC832 Specs:

  • Power input: 12V
  • Working current: 200mA max
  • Antenna impedance: 50
  • Antenna gain: 2db
  • Video impedance: 75
  • Video format: NTSC/PAL auto
  • Dimension: 80x 65 x15mm
  • Weight: 85g
  • Antenna connection: SMA

Frequency Table

Included

  • 1 x receiver (RX)
  • 1 x antenna (2db)
  • 1 x Power cable for rc832
  • 1 x AV cable
  • 1 x user manual
Additional Information
SKU 1743
Manufacturer GetFPV Affiliate
UPC (GTIN) 704817764970
Reviews

FPV Regulatory Notice

The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
