5.8GHz 32CH A/V 600mW Video Transmitter (TS832) - (International Version)

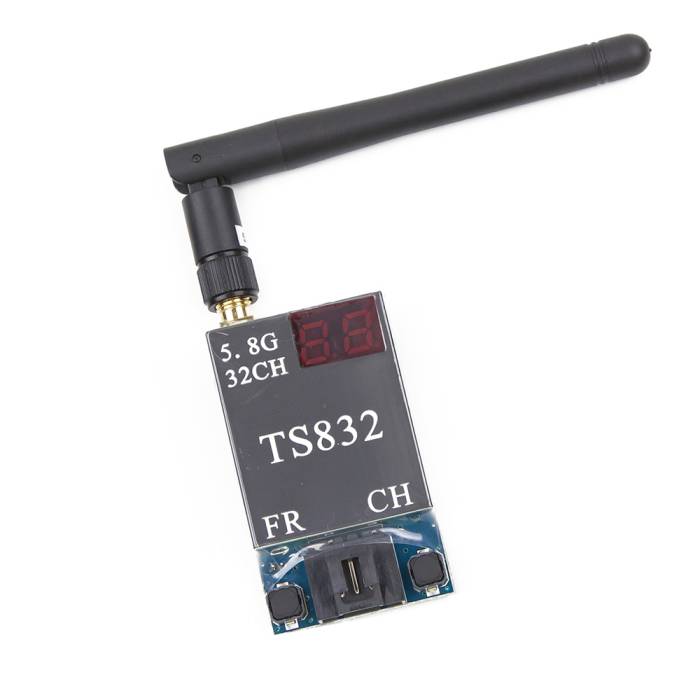

5.8G 600mW A/V Transmitter TS832 - 32CH Edition SMA

About this product

The TS832 Transmitter packs a whopping 600mW of ultra clean 5.8GHz power! A must for those looking for longer range and locked in video. The TS832 is transmitting a full range of 32 channels and uses an easy to use 2 button interface, it also comes with a clean pre-wired harness, and only weighs in at 21g, it’s perfect for a wide range of aircraft!

This transmitter can only be shipped to addresses outside the USA. If you are inside the USA or EU, please see their respective versions.

Features

  • 32 channels: Cover A, B, E bands and F bands
  • Two switching buttons for the band and channel
  • Two digits display for  the band and channel
  • Power off memory for last channel and band
  • Dual Independent video and audio signal outputs

TX TS832 specs:

  • Power input: 7.4-16V (3S Lipo / ~12v suggested)
  • Outputs 12v (matches input voltage)
  • Transmitting power: 600mA
  • Antenna gain: 2db
  • Working current: 220mA at 12V
  • Video bandwidth: 8M
  • Audio bandwidth : 6.5M
  • No auido input on Tx (will not work with antenna trackers)
  • Weight: 22g
  • Dimension: 54x 32x 10mm (excluding antenna)
  • Video format supported: NTSC/PAL
  • Antenna connection: SMA (not RP-SMA)

Frequency and channel frequency table:

Frequency Table

Compatible with Fatshark, ImmersionRC Boscam, Foxtech and other generic branded FPV receivers within the same frequency range.

Included

  • 1 x transmitting unit (TX)
  • 1 x antennas (2db)
  • 1 x power cable for tx832
  • 1 x user manual

*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.

TS832 Diagram

FPV Regulatory Notice

The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.

More Information

SKU 1583
Manufacturer GetFPV Affiliate 2
NDAA Compliant No
Mounting Pattern N/A
Frequencies 5.8GHz
Item Returns This item can be returned
