1.2-1.3GHz LawMate Plus Dual Power 500/1000mW Transmitter V2 - US Version
1.2-1.3GHz LawMate Plus Dual Power 500/1000mW Transmitter V2 - US Version
About this product

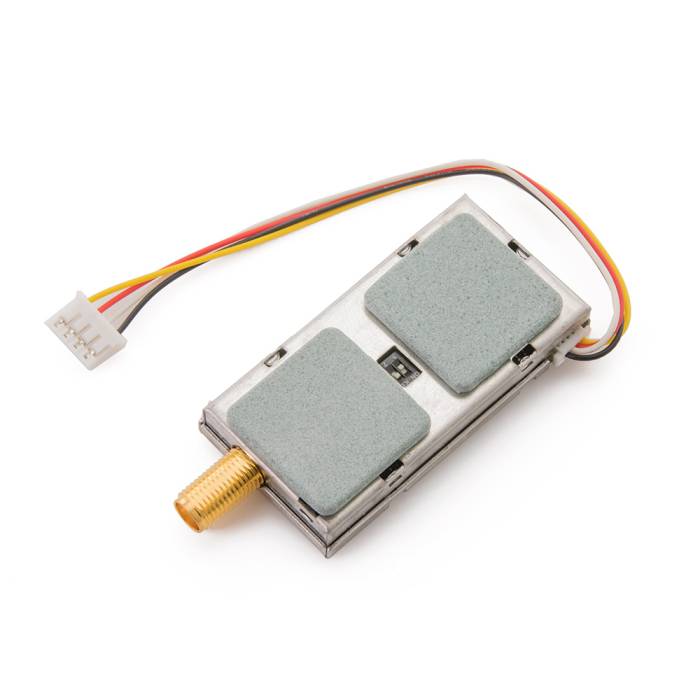

The new Lawmate T1012-Plus transmitter is better than ever, it has been completly redesined and tailored for FPV with a handfull of improvements, such as: new switching regulator, ceramic high efficency low profile heat sinks, high quality audio channel, runs at least 35% cooler, thinner profile, 10 grams lighter and overall better performance.
It's a power house, providing a 500/1000 miliwatts of pre RF output. It is the best transmitter for long range applications. (for RC models is recommended to install the T1012 as far as possible away from the models receiver) Even with all that power, it weights only around 0.8oz (25grams). With all this, and the right setup, for sure you can get video reception miles away. It is highly recommended to install the transmitter in ventilated areas, to allow the air to keep it cool. As any of our transmitters, T1012+ has digital Phase-Lock-Loop circuit avoiding frequency drift, providing a stable and solid audio and video delivery. You can not go wrong with it.
Features:
- 500/1000mW RF output power
- Eight (8) selectable channels
- 1.2 GHz frequency band
- Works with any camera PAL or NTSC
- Digital Phase-Lock-Loop circuit no drifting problem
- Works with any of our receivers
- Audio and Video cable with RCA adapter
- Highly integrated circuit
- High reliability/linearity/AIGaAs/GaAs FET amplifier module
- Uses digital phase-lock-loop circuit without temperature drifting problem
- Weight: 30g (transmitter only)
Specifications:
- Transmission power 50-ohm load CH1 Vcc = 12V: 30dBm
- Nominal output impedance: 50 ohms
- Operating voltage: Vcc, 10.5V (minimum), 12V (typical), 13V (maximum)
- Supply current Vcc = 12V: 350mA (typical), 400mA (maximum)
- Video input voltage 75-ohm impedance: 1Vp-p
- Audio input voltage 10k ohm impedance: 1Vp-p
- Sub carrier frequency: 6.5MHz
- Operation temperature: -10 to 40 degrees Celsius
- Storage temperature: -40 to 80 degrees Celsius
- Operating humidity: 20 to 80%
- Storage humidity: 10 to 80%
- Dimension and weight Excluding SMA connector: 50 x 26 x 13mm, 20g
Includes
-
1.2 GHz 500/1000mW AV transmitter V2
- SMA type dipole antenna x 1
- Jack connector to RCA AV input and power input cable x 1
- Click here to see the transmitter and camera connections. Note: BNC to RCA adpater is sold separately in accessories.
Notes This transmitter will have only the channel 8 (1280 MHz) and channel 7 (1258 MHz) available to USA users. Transmitters shipped to customers out of USA will have all channels available. Do not turn this transmitter on and leave it on for several minutes without air flowing through, it gets hot. This is 1000mW transmitter in a tiny little metal box !!!
FPV Regulatory Notice
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
More Information
| SKU | 2101 |
|---|---|
| Manufacturer | LawMate |
| NDAA Compliant | No |
| Frequencies | US: 1258, 1280 |
| Item Returns | This item can be returned |
