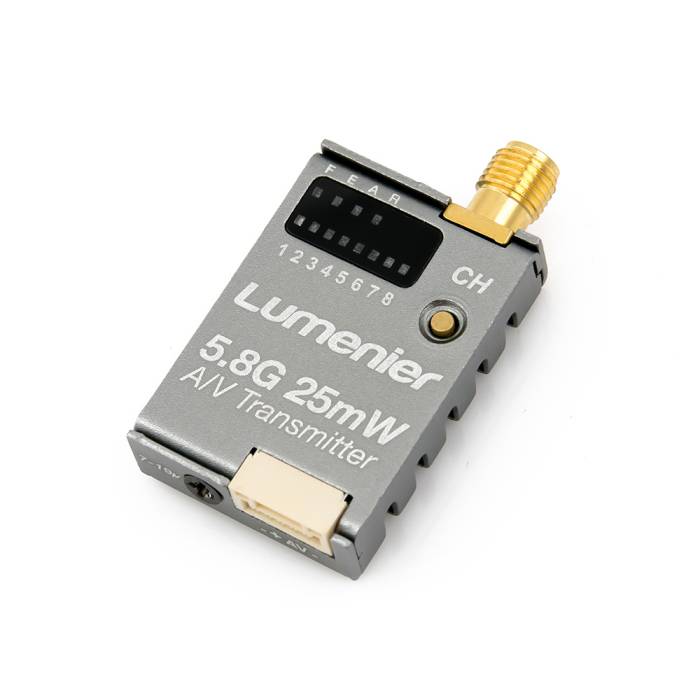

Lumenier TX5G25C Mini Cased 25mW 5.8GHz FPV Transmitter with Raceband

The Lumenier TX5G25C Mini Cased 25mW 5.8GHz 32CH FPV video transmitter is the perfect VTX for FPV racing! The lower 25mW transmission power means more pilots can fly together without overpowering each other on close frequencies. This 25mW transmitter is housed in a protective aluminum case, making it super restitant to being damaged during a crash. The TX5G25C has 32 channels including the new Raceband frequencies. Our friends from ImmersionRC first divided the 5.8 band into 8 channels evenly spread out 37MHz from each other, which allows more racers flying at the same time on the same band. Lumenier Raceband transmitters are fully compatible with FatShark and ImmersionRC receivers. The Tx includes a 5v output to power FPV cameras.

The TX5G25C features an easy to use single button, LED interface. It also comes with a clean pre-wired harness, and only weighs 9g! It stays cool to the touch during operation, so you don't have to worry about it overheating in a crash.

Note: The silk screen print of the pins are incorrect, (-+AV-). They should match the cable color which is (+-V-+) 7-19v input, ground, video input, ground, 5v output.

Features

• 32 channels: Covers 4 Bands
• Intuitive and easy to use button and LEDs for frequency selection
• Provides 5v power output for FPV cameras
• Small sized and light weight
• Transmitter frequency: 5658-5925MHz with 25mW power output
• Transmitting distance >  500m (open area)
• SMA Antenna connector
• Dimensions: 32*22*9mm (not including SMA adapter)

Specifications:

• Operating Voltage: 7 - 20V
• Supply current: 50 mA
• Operating Temperature: -10 +85 C
• Video Band Width: 5-6 MHz
• Video Input Level: 0.8,1.0,1.2 Vp-p
• Video Input Impedance: 75 Ohm
• Weight: 9g (without antenna)
• Antenna Connector:SMA Female Connector
• Video Format: NTSC/PAL
• Frequency Selection: Single push to change CH, push and hold for 2 seconds to change FR

Frequency and channel frequency table:

Compatible with Fatshark, ImmersionRC, Boscam, Foxtech and other generic branded FPV receivers within the same frequency range.

Included

• 1 x transmitting unit (VTX) TX5G25C
• 1 x antennas (2db)
• 1 x power/video cable
• Locking connector, female JST for voltage in, female servo plug for video and 5v out.

Compatible Raceband ready receivers

• Fat Shark 5.8GHZ 5G8RX 32ch Race Band Receiver Module for Dominators
• ImmersionRC Duo 5800 v4.1 A/V Diversity Receiver (Race Edition)
• ImmersionRC Uno 5.8GHz A/V Receiver (Race Edition)

*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.
