Team BlackSheep Dominator Rx with Patch Antenna (5G8)
Team BlackSheep Dominator Rx with Patch Antenna (5G8)
Out of Stock
About this product

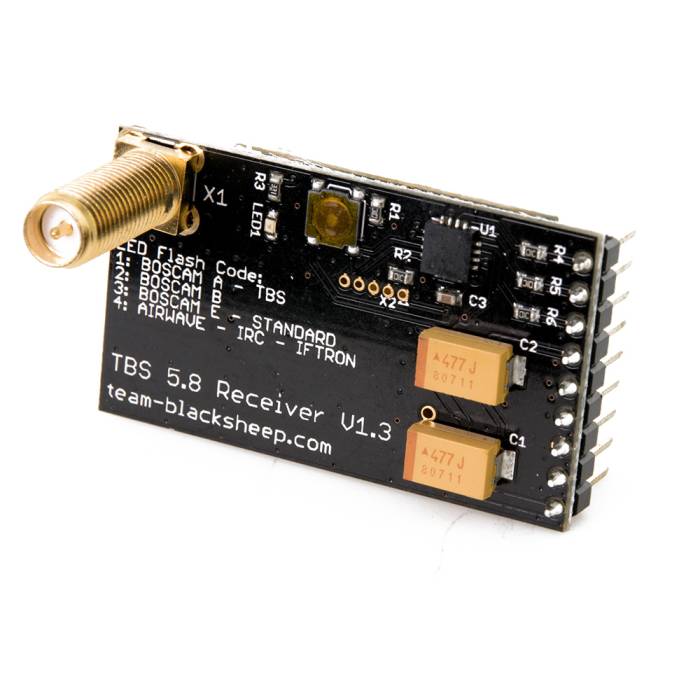

This 5.8 receiver module is made specially for the Fatshark Dominators. Featuring custom, high-sensitivity 5.8 GHz receiver modules compatible with all 5.8 GHz systems sold to date. More specifically transmitters sold by HobbyKing, Foxtech, etc and out-of-the-box systems such as the SpyHawk FPV are supported, as well as all Airwave-compatible transmitters (e.g. ImmersionRC).
Note: compatibility with Airwave is provided, but the quality will not be desireable. We suggest the use of BOSCAM video transmitters. For instructions and supported frequencies please see: http://team-blacksheep.com/products/product:110
Contents
- 5.8 GHz TBS Fatshark Dominator Receiver
- 5.8 GHz 5dbi RHCP Patch Antenna - designed by IBCrazy
Quick Intructions
Place the module into your Fatshark Dominator receiver. Toggle channel UP/DOWN within 1 second on the goggles to scan through all 40 channels for valid video signals. Toggle between bands by pushing (and holding) the golden button. The receiver will display the currently active band with the LED.
- 1 flash = BOSCAM Band A
- 2 flashes = BOSCAM Band B
- 3 flashes = BOSCAM Band E
- 4 flashes = Airwave
- 5 flashes = Race band
Specifications
- 40 channels (5 Bands with 8 channels each)
- -90dBm sensitivity
- Works with all BOSCAM A/V transmitters (200mW, 400mW, 500mW)
- Works with Airwave transmitters (tested with the new ImmersionRC 600mW). Airwave frequency support is not full spec. Range is affected, as well as transmission picture quality! We highly recommend the use of BOSCAM transmitters.
- 3 - 5V operating voltage
- RP-SMA antenna connector
- Fatshark Dominator compatible, toggles channels using the Fatshark button!
- Can be installed into Fatshark Attitude goggles!
Supported Frequencies
| BOSCAM A | BOSCAM B | BOSCAM E | Airwave | |
|---|---|---|---|---|
| Ch1: | 5865 MHz | 5733 MHz | 5705 MHz | 5740 MHz |
| Ch2: | 5845 MHz | 5752 MHz | 5685 MHz | 5760 MHz |
| Ch3: | 5825 MHz | 5771 MHz | 5665 MHz | 5780 MHz |
| Ch4: | 5805 MHz | 5790 MHz | 5645 MHz | 5800 MHz |
| Ch5: | 5785 MHz | 5809 MHz | 5885 MHz | 5820 MHz |
| Ch6: | 5765 MHz | 5828 MHz | 5905 MHz | 5840 MHz |
| Ch7: | 5745 MHz | 5847 MHz | 5925 MHz | 5860 MHz |
| Ch8: | 5725 MHz | 5866 MHz | 5945 MHz | 5860 MHz |
Band A: Team BlackSheep, RangeVideo, SpyHawk, FlyCamOne USA
Band B: FlyCamOne Europe
Band E: HobbyKing, Foxtech, etc
Airwave: ImmersionRC, Iftron
Downloads
FPV Regulatory Notice
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
More Information
| SKU | 1028 |
|---|---|
| UPC (GTIN) | 741587423775 |
| Manufacturer | Team BlackSheep |
| NDAA Compliant | No |
| Item Returns | This item can be returned |
