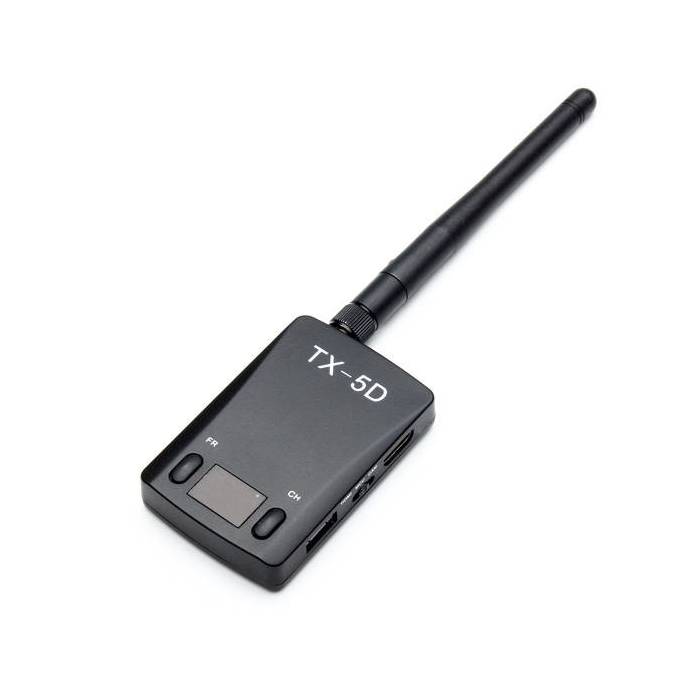

Skyzone TX-5D 5.8GHz 32CH 600mW AV Transmitter w/ HDMI port
Skyzone TX-5D 5.8GHz 32CH 600mW AV Transmitter w/ HDMI port
Out of Stock
About this product
The Skyzone TX-5D is a unique FPV A/V tranmitter geared for multi camera users for aerial cinematography and UAV applications.
The TX-5D supports dual A/V inputs, one being HDMI. The two inputs can be switched live via an RC transmitter, which allows the operator to fly FPV with a fixed analog camera, and then switch to the HDMI output of a gimbal stabilized camera for video work.
The TX-5D supports the full 32ch range of the 5.8GHz band at 600mW for a wide range of compatibility and applications.
Features
- 32 Channel 5.8GHz
- 600mW TX power
- RC controlled video switch between the two video inputs
- RC controlled live channel sync and changing
- HDMI and analog video input
- 7~24V input power
TX TX-5D Specs:
- Working frequency: 5.8Ghz
- Frequency point: 32
- Power input: 7~24V (3S Lipo suggested)
- Working current: 220mA at 12V
- Video band width: 8MHz
- Audio coding: 6.5MHz
- Antenna gain: 2dbm
- Dimension: 63x42x12mm (not including the antenna)
- Support Input: HDMI AV Audio
- Antenna connection: RP-SMA
Frequency and channel frequency table:
Compatible with Fatshark, ImmersionRC Boscam, Foxtech and other generic branded FPV receivers within the same frequency range.
Included
- 1 x transmitting unit (TX-5D)
- 1 x antenna (2db)
- 1 x multi cable / av / power
- 1 x mini HDMI cable (male to male)
- 1 x user manual
*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may easily burn the TX, and such damage is not covered by warranty.
FPV Regulatory Notice
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
More Information
| SKU | 2663 |
|---|---|
| Manufacturer | Skyzone |
| NDAA Compliant | No |
| Item Returns | This item can be returned |
