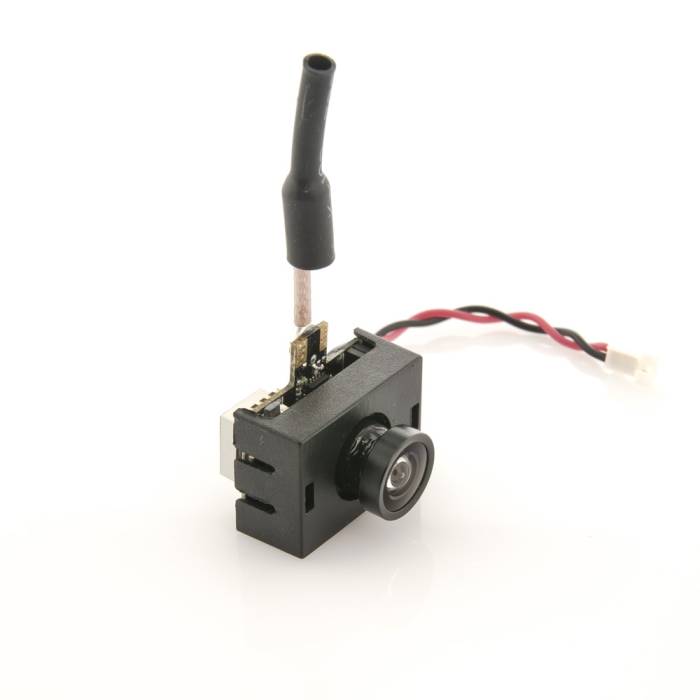

Lumenier AIO-Adjustable Mini FPV Camera + 0/25/50/200mW VTX w/ Dipole Antenna
Lumenier AIO-Adjustable Mini FPV Camera + 0/25/50/200mW VTX w/ Dipole Antenna
About this product
This is the Lumenier AIO-Adjustable Mini FPV Camera + 0/25/50/200mW VTX w/ Dipole Antenna. Now you can have the simplicity of an all-in-one Camera + VTX unit with the added features of adjustable output power. If you're flying with others or short range, choose the 25mW or 50mW setting. If you need more signal penetration and longer range, simply up the power setting to 200mW with the press of a button! The AIO-Adjustable has 32 channels including the new Raceband frequencies.
The AIO-Adjustable features an easy to use single button, LED interface. It is micro in size and only weighs 4.5g!
Features
- 32 channels: Covers 4 Bands (Legal US frequencies with HAM Radio License)
- Intuitive and easy to use button and LEDs for frequency selection
- Micro sized and light weight
- Transmitter frequency: 5658-5925MHz with 25mW power output
- Transmitting distance 100m-500m (depends on power output setting)
- Dipole style Linear Antenna
Specifications:
- Operating Voltage: 3.3-5V (Do not power with more than 5v input)
- Operating Current: 150 mA (350mA Max)
- Operating Temperature: -10 +85 C
- Size: 14mm x 18mm x 12mm
- Weight: 4.2g
- Antenna Connector: None, direct solder
- Video Format: NTSC/PAL
- Frequency Selection: Single push to change CH, push and hold for 2 seconds to change FR
Frequency and channel frequency table:
Band | Channels | ||||||||
CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 | ||
Band 1 | FS / IRC | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
Band 2 | Lumenier / DJI | 5705 | 5685 | 5665 | 5752 | 5885 | 5905 | 5925 | 5866 |
Band 3 | Bosecam A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
Band 4 | Raceband | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
Compatible with Lumenier, Fatshark, ImmersionRC, Team Blacksheep, Boscam and other generic branded FPV receivers within the same frequency range.
Included
- 1 x Lumenier AIO-Adjustable Mini FPV Camera + 0/25/50/200mW VTX w/ Dipole Antenna
- 1 x User Manual
*Note: TX antenna must be installed properly before it is switched on. Powering on without installing an antenna, or using an improper antenna may easily burn the TX, and such damage is not covered by warranty.
FPV Regulatory Notice
The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. GetFPV cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
More Information
SKU | 7441 |
---|---|
UPC (GTIN) | 680138770480 |
Manufacturer | Lumenier |
NDAA Compliant | No |
Item Returns | This item can be returned |
