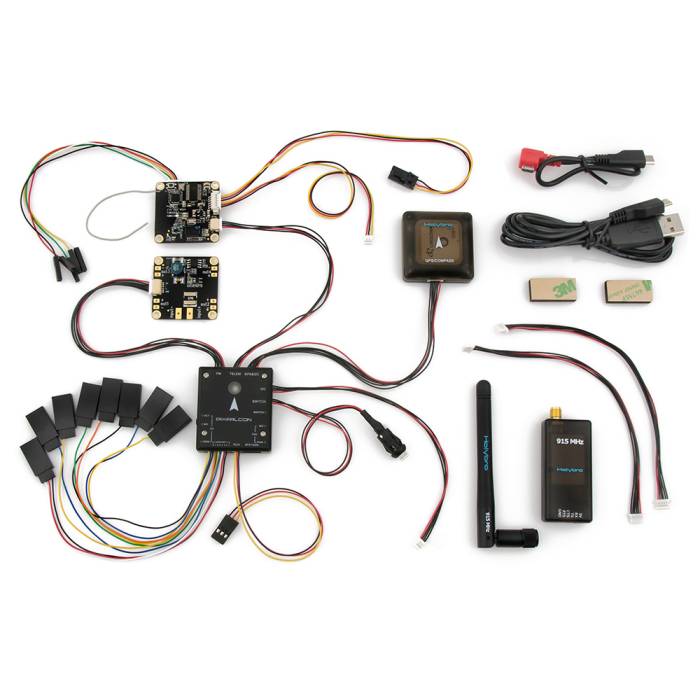

This is Pixfalcon MicroPX4 Combo set includes power module, micro M8N GPS, the Micro Telemetry Radio Module with On Screen Display (OSD) combines the best of micro telemetry products into one neat standardised 35mm stackable bundle.

PixFalcon

The PixFalcon, which can be recognized as a scaled-down version of the Pix32 is a high-performance autopilot-onmodule suitable for fixed wing, multi rotors, helicopters, cars, boats and any other robotic platform.Compared with the Pix32 the PIXFALCON are much more compact and light weighted but their functions and software compatibility are exactly the same.

Processor: 32bit STM32F427 Cortex M4 core with FPU, 168 MHz 256 KB RAM, 2 MB Flash Storge,32 bit STM32F103 failsafe co-processor.

Sensor: ST Micro L3GD20H 16 bit gyroscope, ST Micro LSM303D 14 bit accelerometer / magnetometer, Invensense MPU 6000 3-axis accelerometer/gyroscope, MEAS MS5611 barometer.

Interfaces: 1x UART (serial ports), Spektrum DSM / DSM2 / DSM-X® Satellite compatible input, Futaba S.BUS® compatible input and output, PPM sum signal input, I2C, Internal microUSB port.

Power System and Protection: Ideal power multiplexer with automatic current Limit . All peripheral outputs over-current protected, all inputs ESD protected

Micro M8N GPS

This design incorporates the HMC5983L digital compass, using the Ublox latest 8series module providing a convenient method of mounting the compass away from sources of interference that may be present in the confines of the vehicle. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts. The units ship pre-configured for use with Pixfalcon, The NEO-M8 series of standalone concurrent GNSS modules is built on the exceptional performance of the u-blox M8 GNSS GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS) engine in the industry proven NEO form factor.The NEO-M8 series provides high sensitivity and minimal acquisition times while maintaining low system power.

The NEO-M8 is optimized for cost sensitive applications, while NEO-M8N and NEO-M8Q provide best performance and easier RF integration. The NEO form factor allows easy migration from previous NEO generations. Sophisticated RF-architecture and interference suppression ensure maximum performance even in GNSS-hostile environments.

The NEO-M8 combines a high level of robustness and integrationcapability with flexible connectivity options. The future-proof NEO-M8N includes an internal Flash that allows simple firmware upgrades for supporting additional GNSS systems. This makes NEO-M8 perfectly suited to industrial and automotive applications.The DDC (I2C compliant) interface provides connectivity and enables synergies with most ublox cellular modules. For RF optimization the NEO-M8Q features an additional front-end LNA for easier antenna integration and a front-end SAW filter for increased jamming immunity. This module ships with a baud rate of 38400, 10Hz

FPV Radio OSD All-in-one Set

This is a micro FPV radio telemetry module with a built-in OSD unit for micro APM project. 915MHz and 433MHz available.

FPV Radio OSD All-in-one Set

This is a mini power distribution board build in UBEC.There is a 5.3v UBEC integrated Voltage&current sensor for micro APM. UBEC max input voltage support to 4s Lipo, max output current can be supply up to 3A

Features & Specs

PixFalcon

• 168 MHz / 252 MIPS Cortex-M4F
• Abundant connectivity options for additional peripherals (UART, I2C)
• Integrated backup system for in-flight recovery and manual override with dedicated processor and stand-alone power supply (fixed-wing use)
• Backup system integrates mixing, providing consistent autopilot and manual override mixing modes (fixed wing use)
• Onboard safety switch and external safety switch
• Multicolor LED main visual indicator
• Onboard multi-tone piezo audio indicator
• microSD card for high-rate logging over extended periods of time

Micro M8N GPS

• Industry leading -167 dBm navigation sensitivity
• Navigation update rate up to 10 Hz
• Cold starts: 26s
• LNA MAX2659ELT+
• 25 x 25 x 4 mm ceramic patch antenna
• Rechargeable 3V lithium backup battery
• Low noise 3.3V regulator
• Power and fix indicator LEDs
• Power and fix indicator LEDs
• Protective case
• 15cm PIXFALCON&microAPM compatible 6-pin cable included
• Dimension: 38*38*11mm
• Weight : 20.6g with case

FPV Radio OSD All-in-one Set

• 915MHz
• 6-position Molex connector
• 100 mW maximum output power (adjustable)
• -117 dBm receive sensitivity
• RP-SMA connector
• 2-way full-duplex communication through adaptive TDM
• UART interface
• Transparent serial link
• MAVLink protocol framing
• Frequency Hopping Spread Spectrum (FHSS)
• Configurable duty cycle
• Error correction corrects up to 25% of bit errors
• Open-source SIK firmware
• Configurable through Mission Planner and APM Planner
• Supply voltage: 3.7-6 VDC (from JST 1mm connector)
• Transmit current: 100 mA at 20 dBm
• Receive current: 25 mA
• Serial interface: 3.3 V UART
• Dimensions:35mm*35mm(mounting hole 30mm)
• Build in minim OSD

Micro M8N GPS

• Industry leading -167 dBm navigation sensitivity
• Navigation update rate up to 10 Hz
• Cold starts: 26s
• LNA MAX2659ELT+
• 25 x 25 x 4 mm ceramic patch antenna
• Rechargeable 3V lithium backup battery
• Low noise 3.3V regulator
• Power and fix indicator LEDs
• Power and fix indicator LEDs
• Protective case
• 15cm PIXFALCON&microAPM compatible 6-pin cable included
• Dimension: 38*38*11mm
• Weight : 20.6g with case

UBEC Board for micro APM

• Power input: 2 x contact points for Voltage&current monitor
• Power output: 8 x contact points
• Dimensions: 35x35x5mm
• Mounting hole: 30mm*30mm
• Weight: 5.8g

Includes:

PIXFALCON

• 1x PIXFALCON
• 1x Safety Switch
• 1x 6 Pin Cable
• 1x 4 Pin Cable
• 1x RCIN Cable
• 1x Output Cable

Micro M8N GPS

• 1x Micro M8N GPS
• 1x 6 Pin Cable

FPV Radio OSD All-in-one Set

• 1x Micro Radio Telemetry with OSD Module
• 1x Ground Radio Telemetry Module
• 1x JST 1mm 4 Pin Cable (for Micro APM)
• 1x Video Transmitter and Camera Y Cable
• 1x USB Cable
• 1x OTG Cable

UBEC Board for micro APM

• 1x Mini UBEC Power Distribution Board
• 1x 6 Pin Cable
