Beef's Brushed Flight Controller

Beef's Brushed Board is a 32-bit brushed flight controller that is compatible with Baseflight and Cleanflight. All firmware features are adjustable via GUI (No need to compile or mess with code)

User Manual

Features:

• 4 Built in Brushed ESC
• Spektrum/SBUS/SUMD and PPM receiver compatibility
• Pre-flashed with Baseflight firmware
• Motor flyback protection diodes
• Reverse polarity protection
• Built in 3.3v Buck-Boost eliminates brown outs from low battery voltage and supplies clean power for FPV gear.
• Extra power smoothing capacitor circuitry
• I2C pins Broken out
• Motors 5-8 connections broken out for Hex / Octocopter expansion.
• PWM7 Output can be used for RBG LED's in Cleanflight
• Onboard Lipo voltage measurement for future Low power warning features.
• 0.8mm Thick PCB for reduced weight

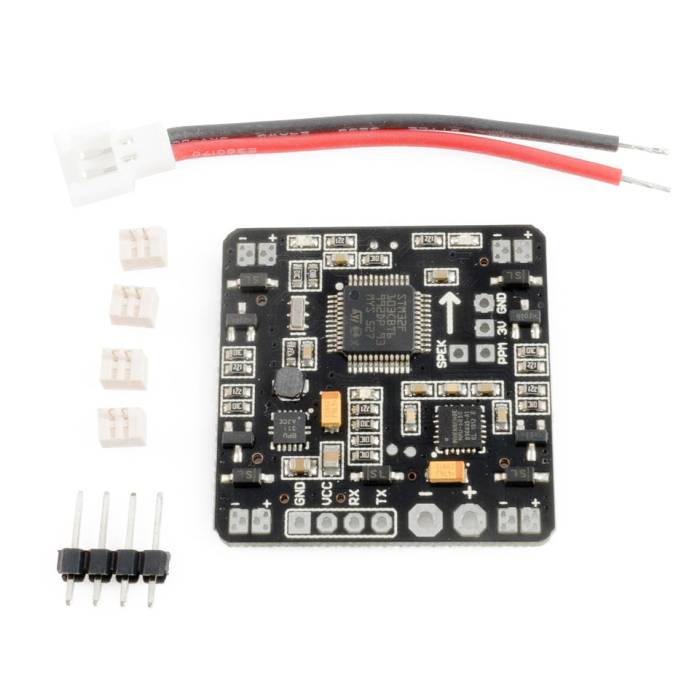

Included:

• 1 Flight Controller
• 1 Walkera/Hubsan Battery connector
• 4 micro-JST connectors for plug and play motors
• 1 X 4 pin header

Required:

• USB serial Interface (FTDI or CP2102)
• Receiver (Spek Sat or PPM)
• Transmitter
• Motors (Recommended 7x20mm or 8.5x20mm brushed motors)
• Propellers
• Frame
• 1S Battery
• Soldering Required

Board size: 32x32mm
