The HOM 2207.5 is T-Motor's new and sleek design. Available in 1700 and 2500 KV.

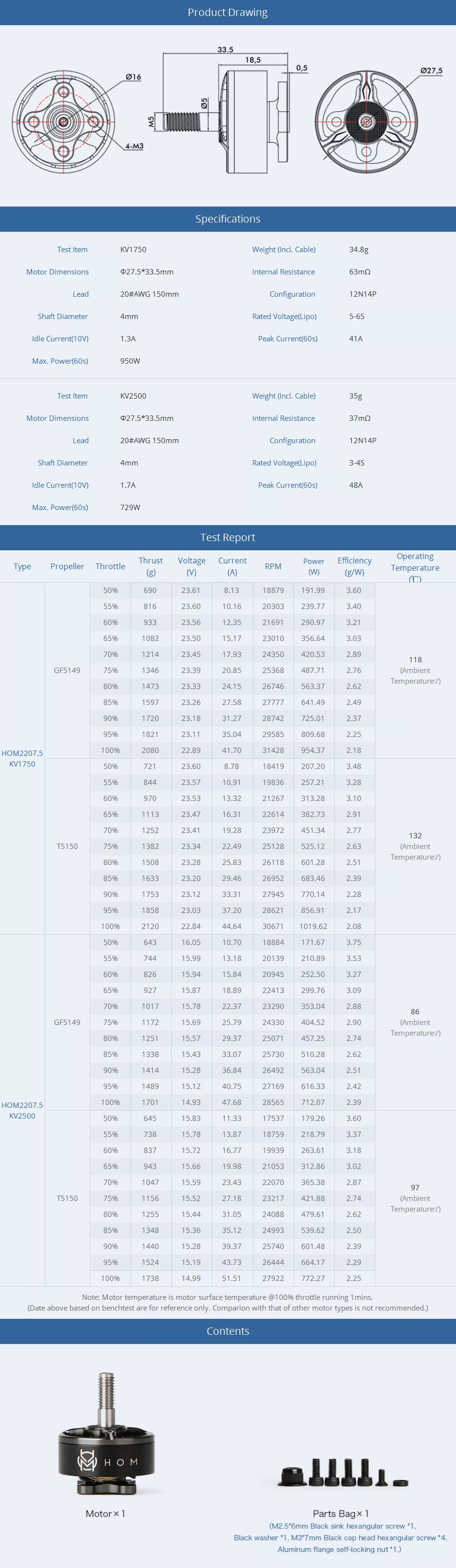

Specifications

1750KV

• Input Voltage: 5-6S
• Configuration: 12N14P
• Max Continuous Current: 41A (60 sec.)
• Internal Resistance: 63mΩ
• ldle Current@10v: 1.3A
• Motor Dimensions: Φ27.5x33.5mm
• Stator Dimensions: Φ22×7.5mm
• Shaft Dimensions: ΦM5×15mm
• Wire Dimensions: 20AWGx150mm
• Mounting Pattern: Φ16mm, 4xM3
• Weight (w/ wires): 34.8g

2500KV

• Input Voltage: 3-4S
• Configuration: 12N14P
• Max Continuous Current: 48A (60 sec.)
• Internal Resistance: 37mΩ
• ldle Current@10v: 1.7A
• Motor Dimensions: Φ27.5x33.5mm
• Stator Dimensions: Φ22×7.5mm
• Shaft Dimensions: ΦM5×15mm
• Wire Dimensions: 20AWGx150mm
• Mounting Pattern: Φ16mm, 4xM3
• Weight (w/ wires): 34.8g

Instructions

• 1 x T-Motor HOM 2207.5 Brushless Motor
• 1 x M2.5x6mm Screw
• 1 x Washer
• 4 x M3x7mm Screw
