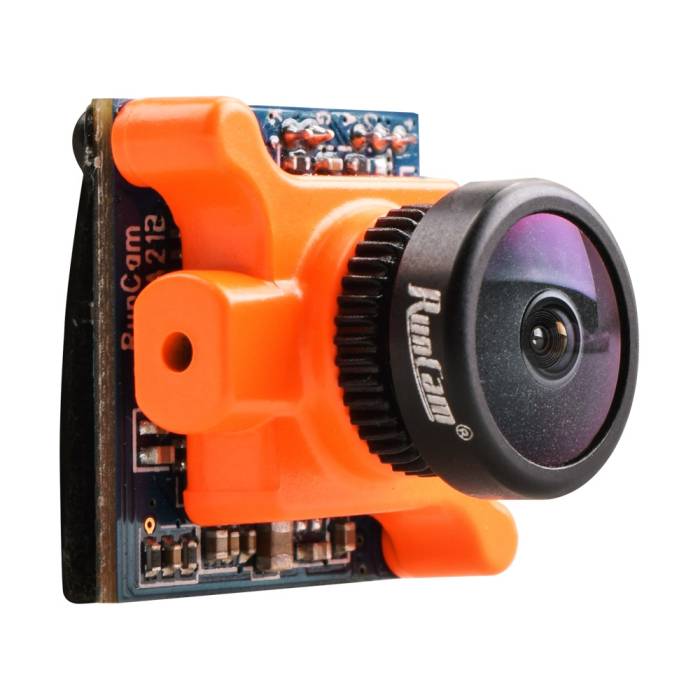

RunCam Sparrow Micro
The RunCam Sparrow is a Micro sized 16:9 CMOS FPV Camera and only weighs 4.8g!

About this product

The Sparrow is designed to be a low latency 16:9 CMOS FPV camera that provides decent quality video for day-time FPV. Price is going to be similar to the Swift.

The full size Sparrow camera will have VBAT pin for displaying battery voltage on OSD, as well as built-in Mic. The Micro Sparrow doesn’t have any of these at this stage, but it’s perfect for smaller builds as it only weights 4.8g.


  • Model: RunCam Micro Sparrow
  • Image Sensor: 1/3" CMOS Sensor
  • Horizontal Resolution: 700TVL
  • Lens: 2.1mm ​(M8)​ FOV145°/16:9
  • Signal System: NTSC/PAL Switchable on OSD menu
  • Integrated OSD: Yes
  • S/N Ratio: >50dB (AGC OFF)
  • Electronic Shutter Speed: PAL: 1/25~100,000; NTSC: 1/30~100,000
  • Auto Gain Control (AGC): LOW/MIDDLE/HIGH
  • Min. Illumination: [email protected]
  • DNR: 2DNR
  • Power: DC 5-36V
  • Working Current: 12V@70mA / 5V@170mA
  • Net Weight: 4.6g
  • Dimensions: 19mm*19mm*17mm

* Download User Manual


  • 1x Camera
  • 1x Set of screws
  • 1x 3pin FPV silicone cable
  • 1x 5D-OSD menu cable
  • 1x Manual
