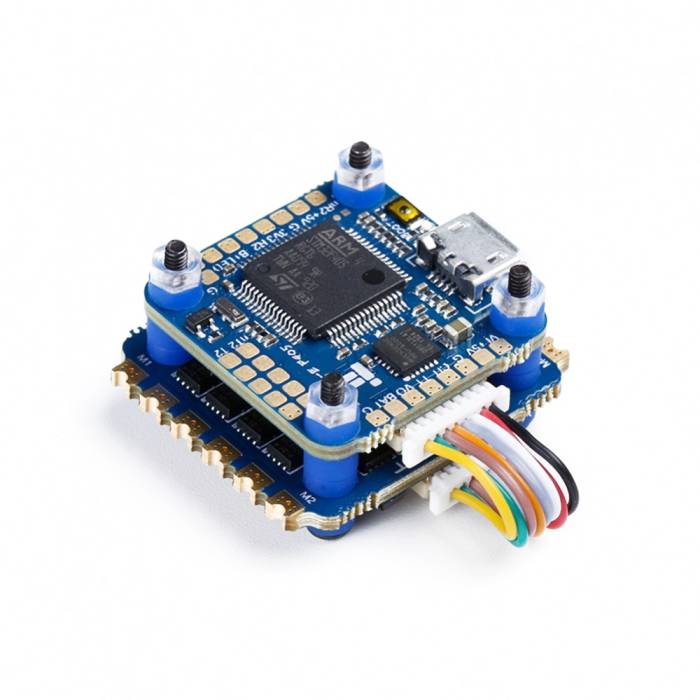

The SucceX-E Mini F4 Stack by iFlight includes the advanced SucceX Mini F4 Flight Controller along with the SucceX 35A 4-in-1 ESC, which can handle up to 6S input voltage and push your FPV racer to the max.

Specifications

SucceX-E Mini F4 Flight Controller

• MCU：168MHz STM32F405
• Gyro：MPU6000
• Blackbox：8MB
• Betaflight OSD：YES
• BEC：5V 2.5A
• Uarts：5
• ESC Telemetry：yes
• INA Pad：nuart2
• Input voltage：2-6S
• Size:25*25mm /20*20mm φ3 mounting
• Weight: 4g
• Firmware：BETAFLIGHTF4

• Mounting hole：20*20mm，φ3mm

• Size：25*25mm

Download: SucceX-E mini F4 Manual

SucceX-E Mini 35A ESC

Features

• 6 layers double-sided PCB board
• 2oz 1.4mm thick power board
• TDK MLCC Low ESR ceramic capacitors
• Top grade 2R203 MOSFET

Specification

• MCU: BB21 F16G
• BLHeliS
• Capacitance: 470uF/50V
• Current Sensor: Yes
• Input: 2-6S LIPO
• Constant: 35A / Burst: 40A
• BEC: No
• Supports up to Dshot1200, Proshot, Oneshot, Multishot
• Target: G-H-30
• BLHeliSuite download
• Weight:6.9g
• Mounting pattern: 20*20, φ3mm with Grommets φ2mm
• Dimensions: 31*30mm (including the power pads)

Includes

• 1 x SucceX-E mini F4 Flight controller
• 1 x SucceX-E mini 35A 4in1 ESC
