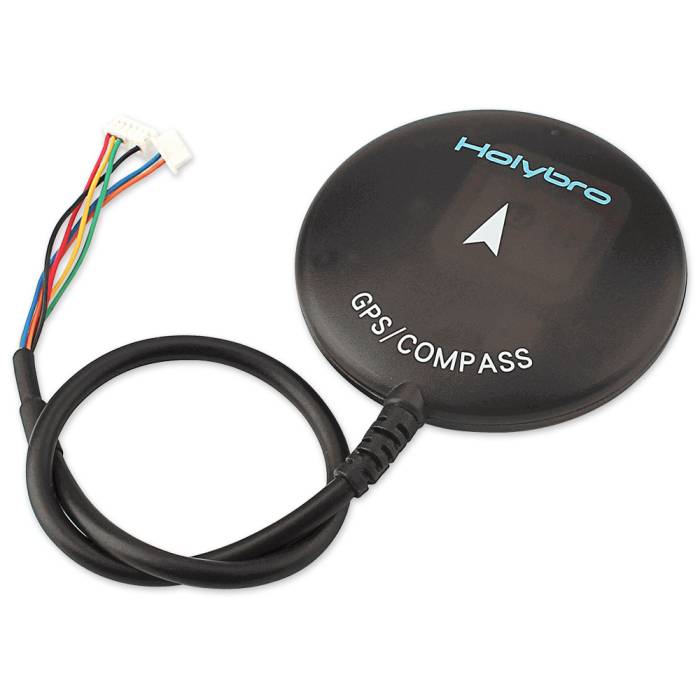

Holybro Ublox NEO-M8N GPS Module
Holybro Ublox NEO-M8N GPS Pre-Configured for Pix32

About this product

This new design incorporates the HMC5883L digital compass, using the Ublox latest 8series module providing a convenient method of mounting the compass away from sources of interference that may be present in the confines of the vehicle. It features active circuitry for the ceramic patch antenna, rechargeable backup battery for warm starts. The units ship pre-configured for use with Pix32

The NEO-M8 series of standalone concurrent GNSS modules is built on the exceptional performance of the u-blox M8 GNSS GPS, GLONASS, Galileo, BeiDou, QZSS and SBAS) engine in the industry proven NEO form factor.The NEO-M8 series provides high sensitivity and minimal acquisition times while maintaining low system power. The NEO-M8M is optimized for cost sensitive applications, while NEO-M8N and NEO-M8Q provide best performance and easier RF integration. The NEO form factor allows easy migration from previous NEO generations.

Sophisticated RF-architecture and interference suppression ensure maximum performance even in GNSS-hostile environments.
The NEO-M8 combines a high level of robustness and integrationcapability with flexible connectivity options. The future-proof NEO-M8N includes an internal Flash that allows simple firmware upgrades for supporting additional GNSS systems. This makes NEO-M8 perfectly suited to industrial and automotive applications.The DDC (I2C compliant) interface provides connectivity and enables synergies with most u-blox cellular modules. For RF optimization the NEO-M8N/Q features an additional front-end
LNA for easier antenna integration and a front-end SAW filter for increased jamming immunity
This module ships with a baud rate of 38400, 10Hz


  • ublox Neo-M8N module
  • Industry leading -167 dBm navigation sensitivity
  • Navigation update rate up to 10 Hz
  • Cold starts: 26s
  • LNA MAX2659ELT+
  • 25 x 25 x 4 mm ceramic patch antenna
  • Rechargeable 3V lithium backup battery
  • Low noise 3.3V regulator
  • Power and fix indicator LEDs
  • Protective case
  • 30cm Pix32 2.4 compatible 6-pin and APM compatible 5-pin 2 types cable included
  • Diameter 60mm total size
  • 32 grams with case


  • 1x NEO-M8 with compass module and case set
  • 1x Pix32 compatible 6pin cable
  • 1x APM compatible 5pin cable
  • 1x 'X' type folding pedestal mount
  • 1x carbon rod 100mm & 140mm

More Information

SKU 4430
UPC (GTIN) 769923250656
Manufacturer Holybro
NDAA Compliant No
