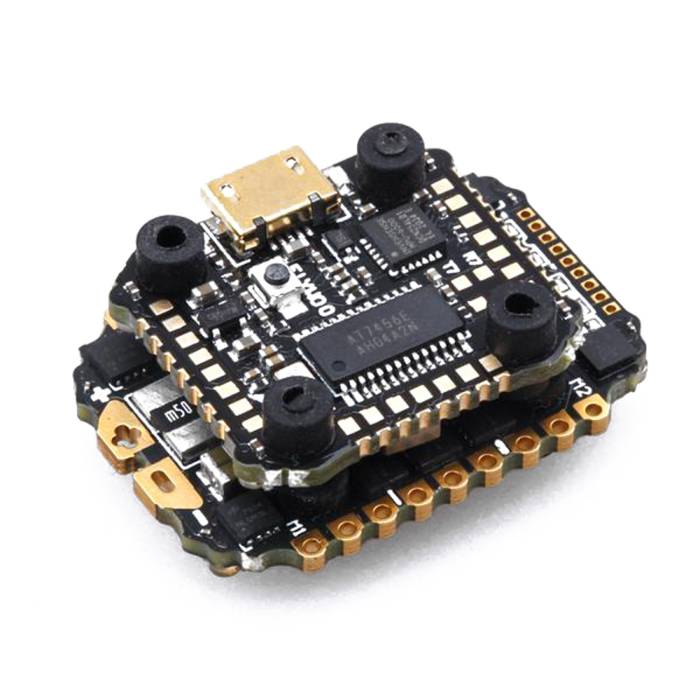

Flywoo GOKU HEX F745 FC + 13A 6-in-1 ESC 16x16 Stack for Hexacopter
The GOKU HEX F745 16X16 STACK uses a powerful F745 BGA chip barometer, black box, WS2812LED, support 7 complete hardware serial ports, I2C, and other functions! This stack will meet all your FPV needs.

About this product

The GOKU HEX F745 16X16 STACK uses a powerful F745 BGA chip barometer, black box, WS2812LED, support 7 complete hardware serial ports, I2C, and other functions! This stack will meet all of your hexacopter needs!

Pair with the Flywoo LR 4" Hexacopter Frame for a 16x16 micro hexacopter!

Please note that Hex FC cannot be used with Quad ESC!

Specifications

GOKU F745 BGA Flight Controller

  • SIZE: 22*23mm Weight: 2.3g  Hole: 16*16-3mm
  • MCU: STM32F745
  • UARTS: 1/2/3/4/5/6/7
  • I2C: SCL/SDA
  • GYRO: MPU6000
  • BARO: BMP280 BEC: 5V 2A
  • LED:4*WS2812 FLASH: 8M
  • Input Voltage: 2-4S
  • Firmware: FLYWOOF745NANO

GOKU HEX 6IN1 BS13A ESC

  • BS20/35A BLheli_S 2-6S 4in1
  • Weight: 2.5g
  • Mounting Hole: 16x16mm (M3)
  • - Support Oneshot, Multishot, DShot150/300/600

Includes

  • 1x GOKU F745 BGA Flight Controller
  • 1x GOKU HEX 6IN1 BS13A ESC
  • 4x M2 19mm Bolts
  • 4x M2 Nuts
  • 8x Spacers
  • 1x Capacitor
  • 1x Flywoo Sticker
  • 1x Connecting Wire



More Information

SKU 15556
UPC (GTIN) 789862859178
Manufacturer Flywoo
Mounting Pattern 16x16mm (Nano)
