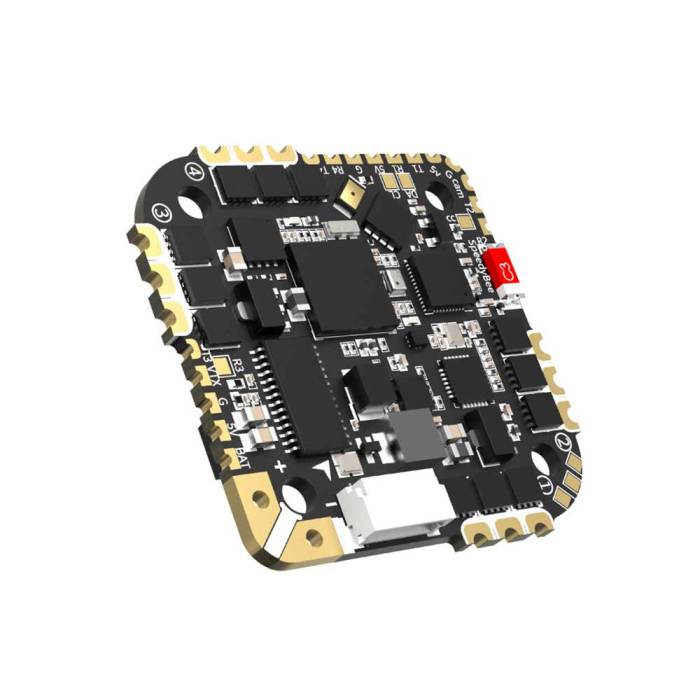

SpeedyBee F745 AIO Board - F745 FC + 35A BLHeli_S 3-6S ESC
The SpeedyBee F745 AIO includes an F745 flight controller and a 35A ESC. Featuring a BMP280 barometer, OSD, 8MB Memory Blackbox, and MPU600 Gyro... this AIO board is the perfect addition to your FPV build.
About this product
dummy
The SpeedyBee F745 AIO includes an F745 flight controller and a 35A ESC. Featuring a BMP280 barometer, OSD, 8MB Memory Blackbox, and MPU600 Gyro... this AIO board is the perfect addition to your FPV build.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: Diatone Mamba H743 MK4 FC & 128K ESC Unboxing
Features
- Wireless ESC firmware flashing + full BLHeli_S configuration
- Wireless FC firmware flashing + full Betaflight configuration
- Powerful and Durable 35A 6S ESC with TOSHIBA MOSFETs
- 4 UARTS + Barometer + I2C pads + 8MB BlackBox flash
- Change motor directions wirelessly
- DJI plug for simpler digital build
- Powerful F745 FC + 35A ESC
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE INÂ BOLD CAPS.
Add additional feature descriptions here to describe the above.
Specifications
- Dimensions: 36.5mm(L) x 36.5mm(W) x 7mm(H), recommended for quads at 3.5" or above
- MountinPattern:Â 25.5 x 25.5mm, 3mm hole diameter
- Power Input:Â 3S - 6S Lipo
- Weight: 10.1g
FLIGHT CONTROLLER
- USB Connection: Need to solder a USB TYPE-C module to D+, D-, GND pads.
- 5V Output: 4 groups of 5V output. The total current load is 2.5A.
- SmartPort: Use any TX pad of UART for the SmartPort feature.
- BLE Bluetooth: Supported. Used for parameter configuration
- UART: Full UART * 4(UART1, UART2, UART3, UART4)
- 3.3V Output: Supported. Up to 500mA current load.
- Supported Flight Controller: BetaFlight(Default)
- Firmware Target Name: SPEEDYBEE F745AIO
- Buzzer: BZ+ and BZ- pad used for 5V Buzzer
- BetaFlight Camera Control Pad: Yes(CC pad)
- Flash FC Firmware Wirelessly: Supported
- Download/Analyze Blackbox: Supported
- BOOT Button: Used to enter DFU mode
- Current Sensor: Supported. Scale=256
- DJI Air Unit 6-pin Connector: Built-in.
- LED Pad Used for WS2812 LED
- ESC Telemetry UART: None
- RSSI Input: Not supported
- Flash(for BlackBox): 8MB
- ESC Signal Pads M1 - M4
- IMU(Gyro): MPU6000
- Barometer: BMP280
- MCU: STM32F745
- 9V Output: None
- OSD: Supported
- I2C: Supported.
ESC
- Current Sensor: Supported(Sacle=256)
- ESC Protocol: DSHOT300/600
- Firmware: BLHeli_S JH40
- Continuous Current: 35A
- Burst Current: 45A(5S)
- Power Input: 3-6S LiPo
- Power Output: VBAT
IMPORTANT NOTES
- Make sure the AIO's slightly bigger size can fit your own quad! The size of this AIO is 36.5(L)*36.5(W)*7.0(H)mm. We suggest you use this AIO on your 3.5" to 5" cinewhoops/long-range or lightweight quads. For quads below 3.5", you should carefully check if your quad has enough room for this AIO.
Recommended (Not Included)
- Â (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Includes
- 1x SpeedyBee F745 AIO Flight Controller - F745 FC + 35A BLHeli_S 3-6S ESC
- 1x External USB Port module (Wire Length: 5mm)
- 5x M2 6.6mm Anti-vibration Silicone Grommets
- 1x XT30 Power Cable (Length: 7cm)
- 1x Manual & App Download Card
- 5x M2 12mm (Length) Screw
- 1x 6pin DJI Air Unit cable
- 1x 35V 470uF Capacitor
- 5x M2 Silicone O-Ring
- 5x M2 Nylon Hex Nut
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
SKU | 19288 |
---|---|
UPC (GTIN) | 764613347586 |
Manufacturer | SpeedyBee |
NDAA Compliant | No |
Mounting Pattern | 25.5x25.5mm |
