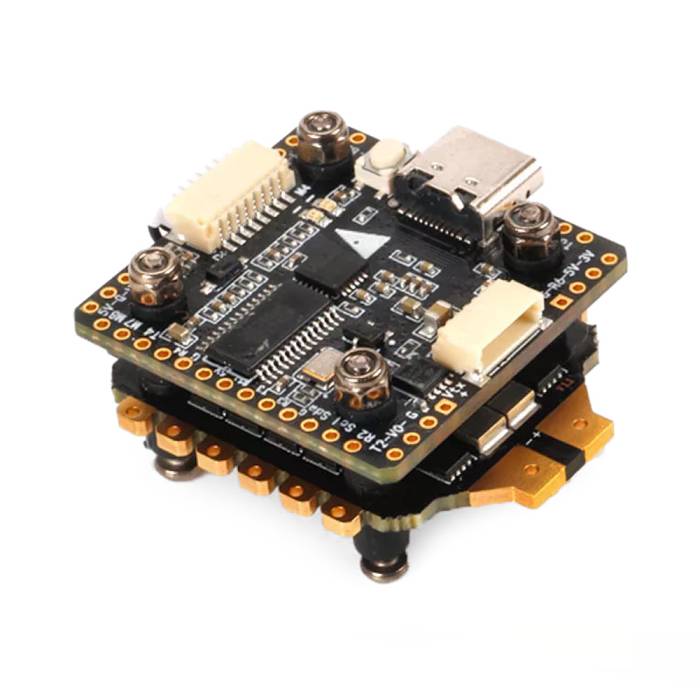

Holybro Mini Stack - Kakute H7 FC + Tekko32 F4 45A ESC - 20x20

The Holybro Kakute H7 Mini Stack features the Tekko32 F4 45A ESC and Kakute H7 FC with a 20x20 mounting pattern.

VIDEO: Holybro Kakute H7 Mini Stack - Overview & Setup

Features

• Mini Stack by Holybro (20x20)
• Tekko32 F4 45A ESC
• Kakute H7 FC

Specifications

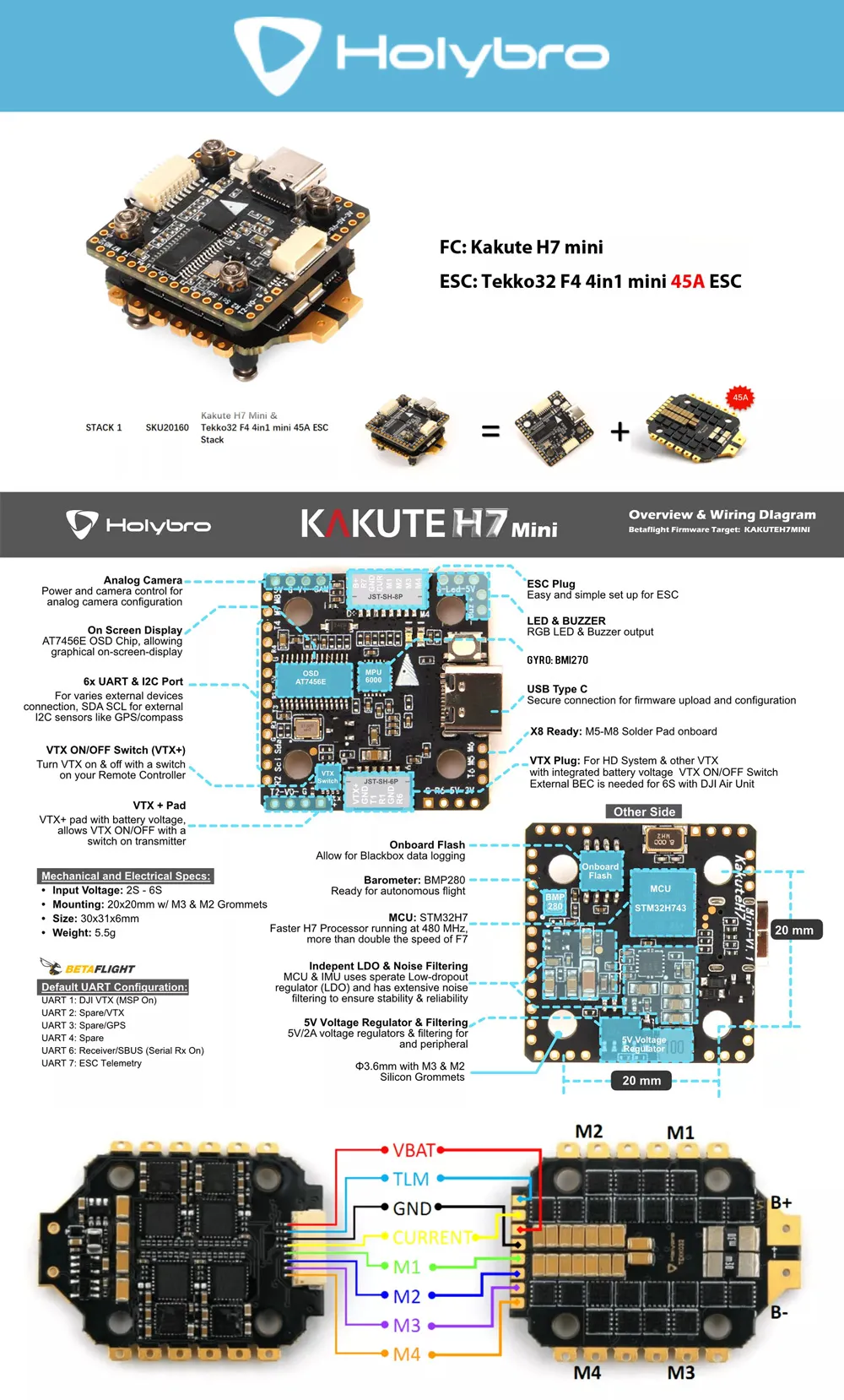

KAKUTE H7 MINI FLIGHT CONTROLLER

• Firmware Target: KAKUTEH7MINI
• ESC Connections: 8
• Input Voltage: 2-6S
• Stack Size: 20x20
• MCU: STM32H7
• IMU: BMI270
• OSD: AT7456E
• Barometer: Yes
• Weight: 5.5g
• Buzzer: Yes
• BEC: 5v/2A
• Uarts: 6

TEKKO32 F4 MINI 45A ESC

• Amperage meter: Scale ratio has been adjusted to 168.
• Cap: Ext. cap needed for 6s (1000uf 35v for 6s usage.)
• Supports: Oneshot / Multishot / Dshot PWM
• Maximum PWM : up to 96K (default 48K)
• MCU: F4 with BLHELI32 firmware
• Mounting holes: 20x20mm(M3)
• PWM input, TLM supported
• Supports damped light: Yes
• LiPo input: Supports 3-6S
• Voltage output: (VBAT)
• Size: 30 x 39 mm
• BEC: NO output
• Weight: 7.2g

Links

• BLHeli_32 ESC Firmware Overview
• Tekko32 F4 4-in-1 Mini 45A ESC
• Holybro Kakute H7 Mini Manual
• BLHeli_32 GitHub

Includes

• 1x Holybro Mini Stack - Kakute H7 FC + Tekko32 F4 45A ESC - 20x20
• 1x JST SH 6pin to GH 8pin 150mm cable*1 ( The cable that goes to the DJI Air Unit is included.)
• 1x JST SH 6pin 150mm cable*1 ( The cable that goes to the CADDX Vista Air Unit is included.)
• 1x JST SH 6pin to GH 8pin 80mm cable*1 ( The cable that goes to the DJI Air Unit is included.)
• 1x 1000uF 35v Electrolytic capacitor
• 1x JST SH 8pin to 8pin 65mm cable
• 1x JST SH 8pin to 8pin 25mm cable
