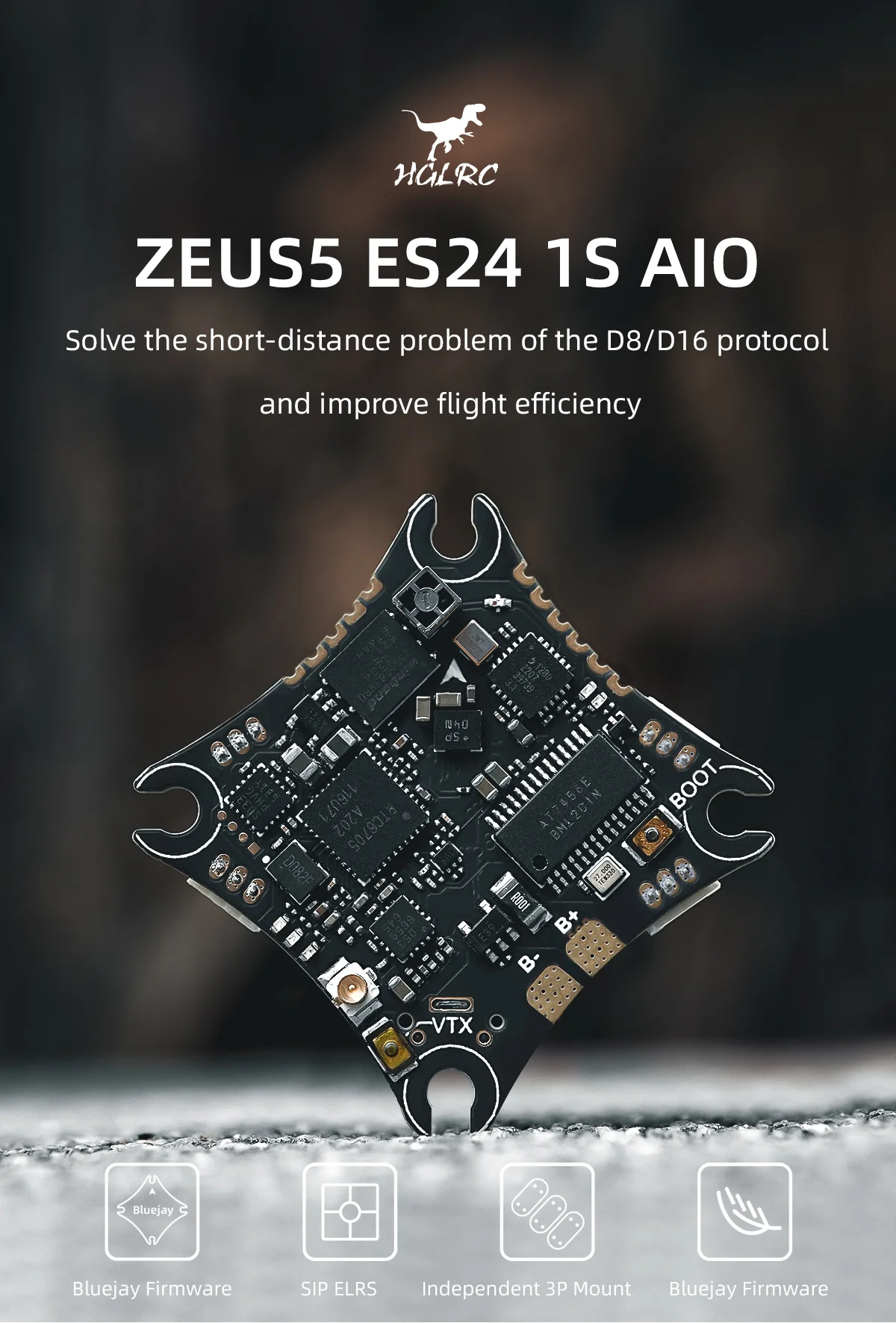

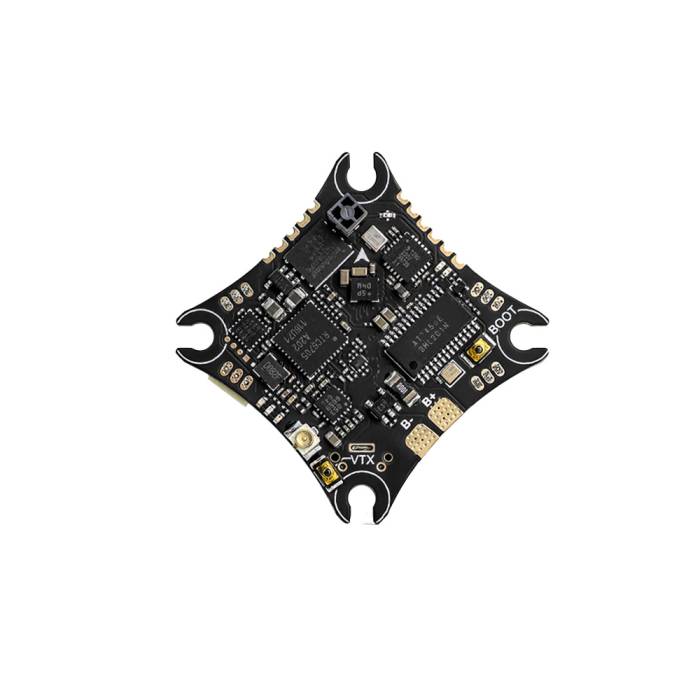

HGLRC ZEUS5 ES24 1S AIO - F411 FC (BMI270) + 5A ESC + SPI ELRS + VTX
Out of Stock
About this product
Explore the power of seamless integration with the HGLRC ZEUS5 ES24 1S AIO - F411 FC (BMI270) + 5A ESC + SPI ELRS + VTX. This all-in-one brushless flight controller is designed with ultra-light F411 5A, combined with the advanced SPI ExpressLRS 2.4G receiver and a robust 200mW 5.8GHz adjustable power video transmission. The AIO's SPI ELRS receiver, featuring patch ceramic antennas, addresses the limitations of older SPI D8/D16 protocols, ensuring smooth and uninterrupted flights even in challenging indoor environments. Renowned for its high sensitivity, high refresh rate, and minimal delay, it has become a favorite among FPV enthusiasts. Furthermore, it is highly versatile and compatible with multiple drone frames including 65/75/lightweight toothpick drone/whoop series.
Note: (Insert any product notes here in Red BOLD Italic. Example: "First Shipment expected January 2022" or "Electronics are Not Included".)
VIDEO: (Insert Video Title here in Bold)
Features

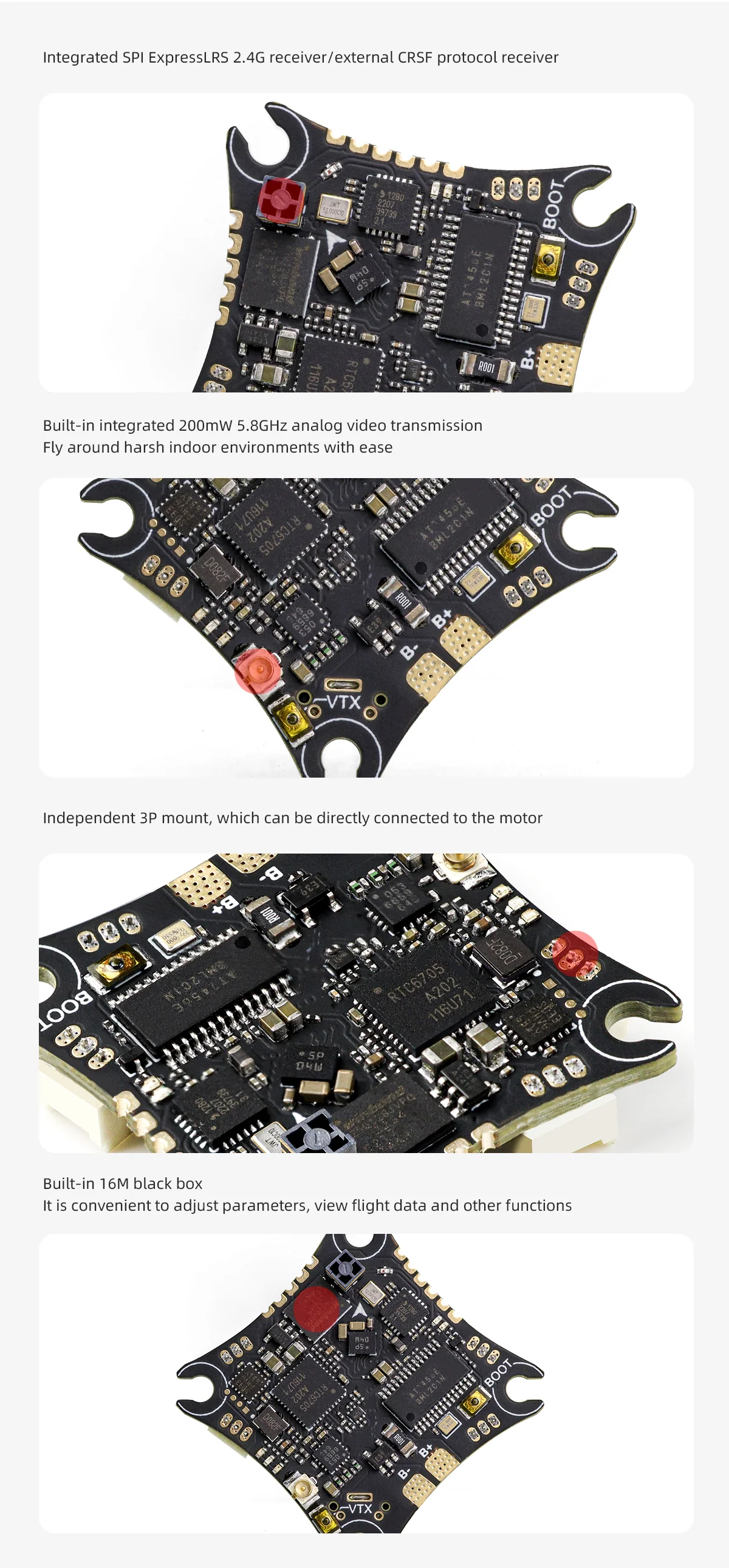

- Integrated SPI ELRS Receiver: Offers superior reception and eliminates issues commonly found in older SPI D8/D16 protocols.
- 200mW 5.8GHz Analog Video Transmission: Ensures crisp and clear video feeds, even in demanding conditions.
- 3P Socket: Comes with an independent 3P socket, allowing direct motor connectivity.
- Onboard 16M Black Box: Facilitates easy parameter adjustments and flight data reviews.

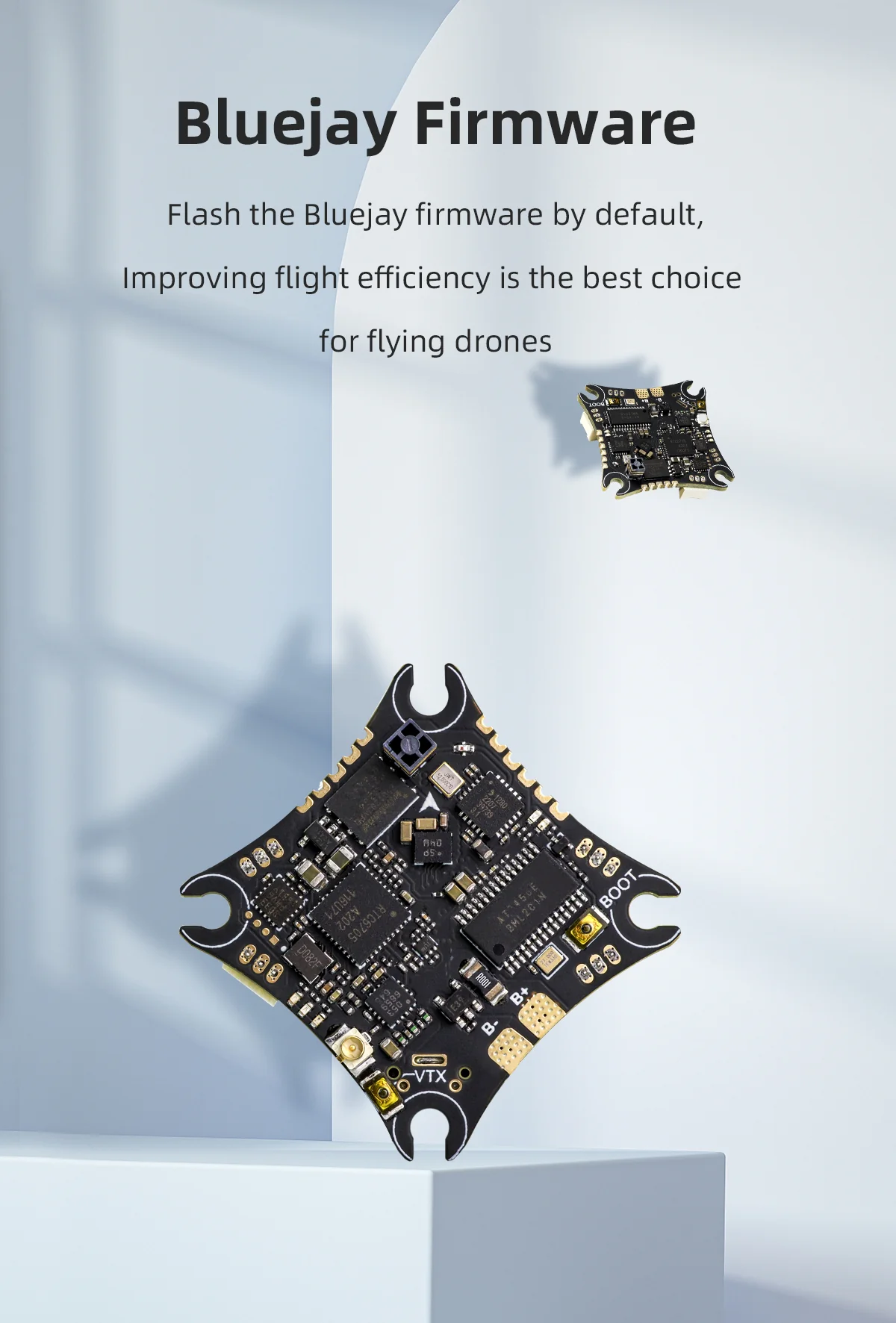

- Pre-installed Bluejay Firmware: Optimized for maximum flight efficiency, making it a top pick for drone enthusiasts.

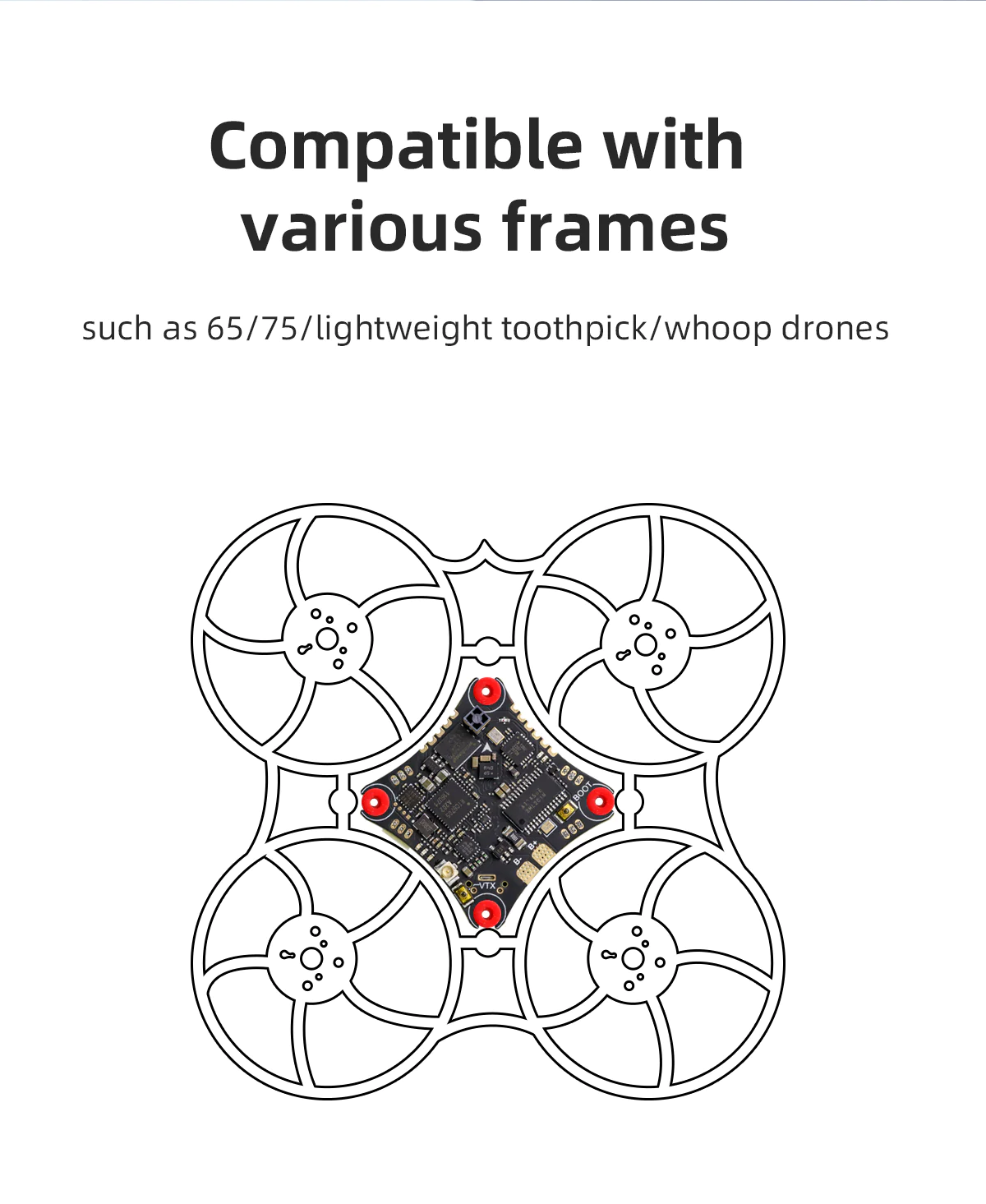

- Broad Compatibility: Designed to perfectly fit all 65mm-75mm hoop/toothpick frames, ensuring versatility and adaptability.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.
USE BULLETED FEATURE HERE IN BOLD CAPS.
Add additional feature descriptions here to describe the above.

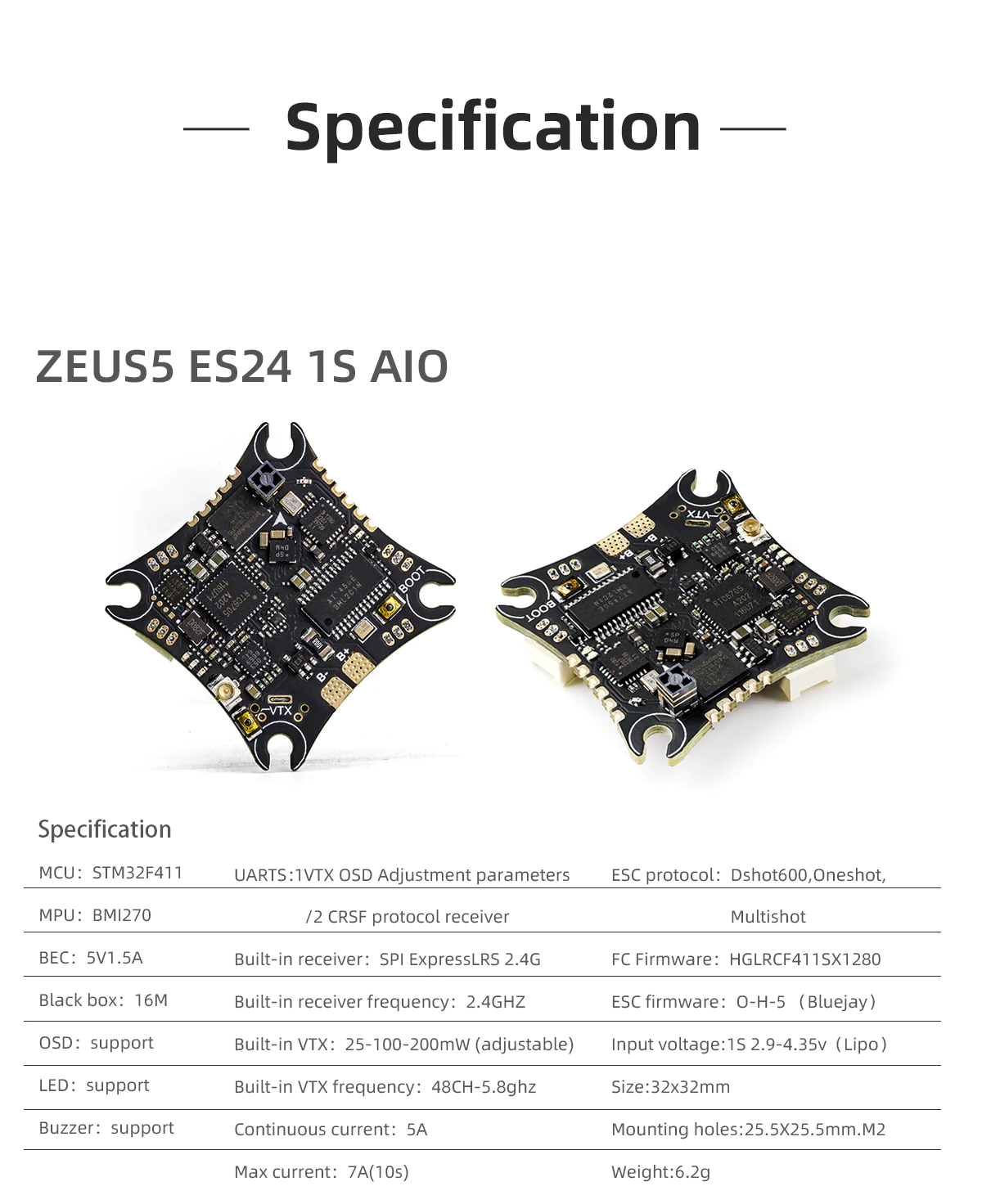

Specifications
- Product name: ZEUS5 ES24 1S AIO
- MCU: STM32F411
- MPU: BMI270
- BEC: 5V1.5A
- Black box: 16M
- OSD: support
- LED: support
- Buzzer: support
- UARTS: 1 image transmission OSD Adjustment parameters/2 CRSF protocol receiver
- Built-in receiver: SPI ExpressLRS 2.4G
- Built-in receiver frequency: 2.4GHZ
- Built-in image transmission: 25-100-200mW (adjustable)
- Built-in image transmission frequency: 48CH-5.8ghz
- Continuous current: 5A
- Peak current: 7A (10s)
- ESC protocol: Dshot600, Oneshot, Multishot
- Flight control firmware: HGLRCF411SX1280
- ESC firmware: O-H-5 (Bluejay)
- Input voltage: 1S 2.9-4.35v (Lipo)
- Size: 32x32mm
- Mounting hole: 25.5X25.5mm.M2
- Weight: 6.2g
IMPORTANT NOTES
- Insert important warnings or notes here. Example: "Do not overheat." or "Always use the included charger for best performance."
Recommended (Not Included)
- (Insert recommended products here. Example: "Battery: Lumenier 10000mAh 6s 25c Lipo Battery")
Links
- (Insert links such as manuals, firmware, etc)

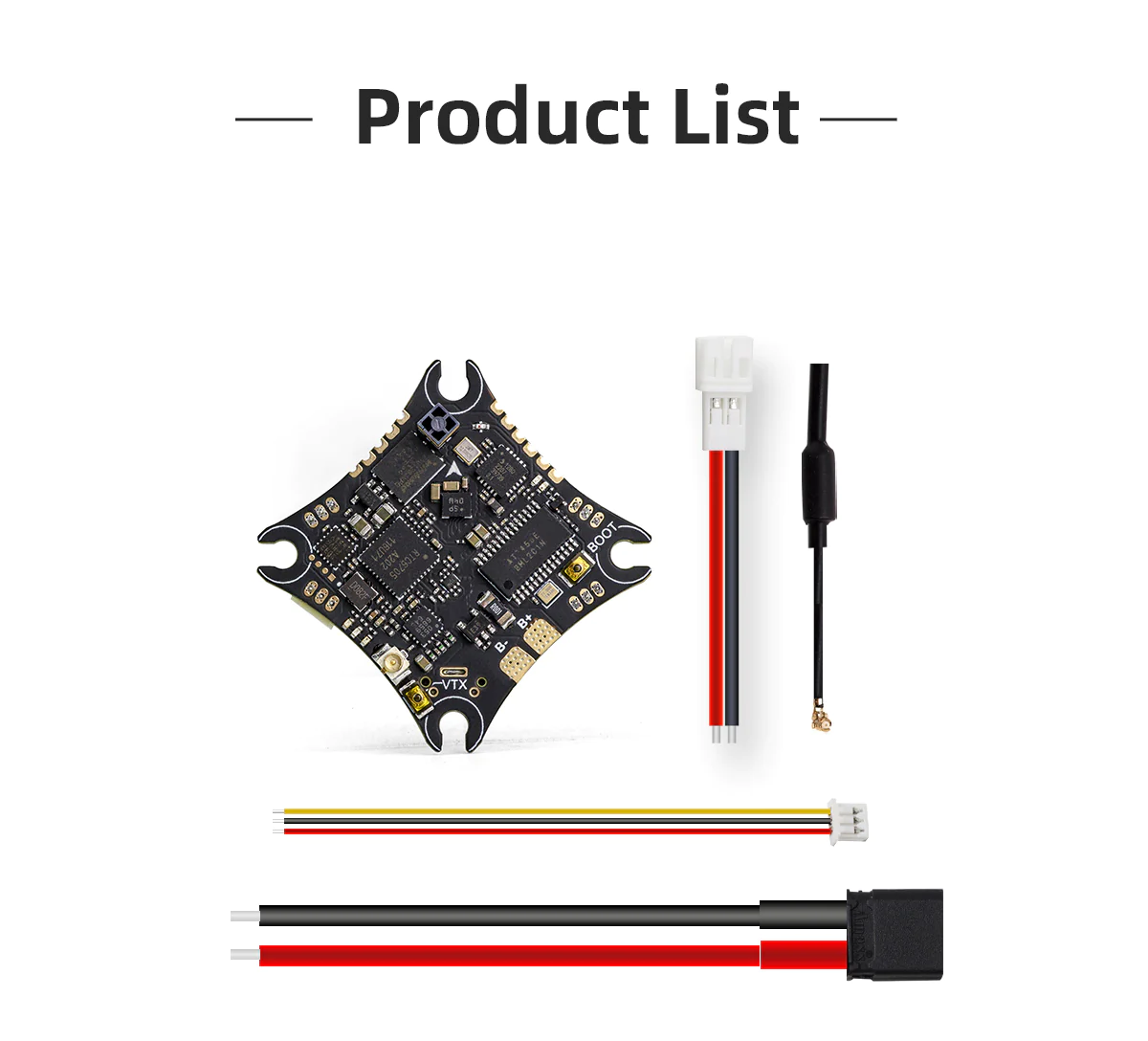

Includes
- 1x 1x ZEUS5 ES24 1S AIO
- 1x XT30U-M 22AWG 70mm male power cord
- 1x PH2.0-2P 22AWG 35mm male power cord
- 1x MX1.25-3P 30AWG 75mm camera cable
- 4x M2*6.6 Shock-absorbing column
Featured Videos
ADD VIDEO TITLE HERE IN BOLD CAPS
ADD VIDEO TITLE HERE IN BOLD CAPS
More Information
| SKU | 21009 |
|---|---|
| UPC (GTIN) | 724376354726 |
| Manufacturer | HGLRC |
| Country of Manufacture | China |
| NDAA Compliant | No |
| Mounting Pattern | 25.5x25.5mm |
| Amps | 5 Amps |
| Flight Controller Processor | F4 |
| Number of ESC's | 4 ESC's in 1 |
